RC6B333J680M7 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> RC network> RC6B333J680M7

RC6B333J680M7: DescriptionRC Network, Bussed, 33000ohm, 25V, 0.000068uF, Surface Mount, 10 Pins, CHIP; CategoryPassive components RC network; File Size187KB，4 Pages; ManufacturerTT Electronics plc; Websitehttp://www.ttelectronics.com/; Environmental Compliance

Download Datasheet Parametric View All

RC6B333J680M7 Overview

RC Network, Bussed, 33000ohm, 25V, 0.000068uF, Surface Mount, 10 Pins, CHIP

RC6B333J680M7 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	CHIP
Reach Compliance Code	compliant
capacitance	0.000068 µF
Capacitor Negative Tolerance	20%
Capacitor positive tolerance	20%
Capacitor temperature characteristic code	X7R
The first element resistor	33000 Ω
JESD-609 code	e3
length	6.4 mm
Manufacturer's serial number	RC
Installation features	SURFACE MOUNT
Network Type	BUSSED
Number of capacitor elements	8
Number of functions	1
Number of RC components	8
Number of resistor elements	8
Number of terminals	10
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TR, EMBOSSED, 7 INCH
Rated (DC) voltage (URdc)	25 V
Resistor tolerance	5%
Resistor temperature coefficient	200 ppm/°C
Resistor/Capacitor Network Type	RC NETWORK
Maximum seat height	0.55 mm
surface mount	YES
technology	METAL GLAZE/THICK FILM
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal pitch	1.27 mm
Terminal shape	WRAPAROUND
width	3.2 mm
Base Number Matches	1

Preview

Download Datasheet

View All

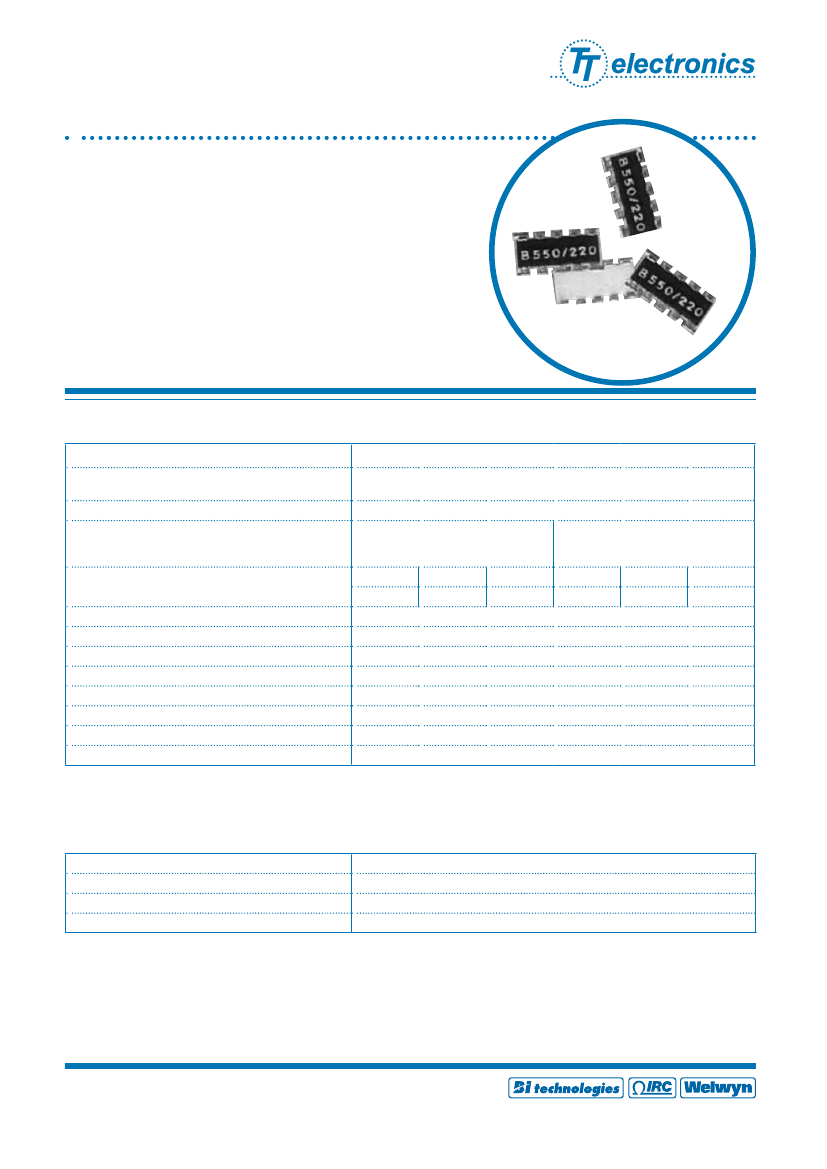

Leadless Surface Mount

Chip Resistor/ Capacitor Networks

RC Series

•

Thick film on ceramic construction

Low profile suitable for PCMCIA

Low inductance leadless design

Available in two popular sizes: 1206 & 2512

Nickel barrier terminations

•

High speed AC line termination

•

EMI/RFI filtering

•

Enhanced parallel port (IEEE 1284)

Electrical

Standard Resistance Range, Ohms

Resistance Tolerance

Temperature Coefficient of Resistance

Power Rating, Watts

RC4:

200

RC4:

63mW per Resistor

63mW per Package

RC6A:

220

RC6B:

RC6C:

20 to 1Meg

±20% (M Tol.)

Optional: ±10% (K Tol.), ±5% (J Tol.)

±200ppm/°C

RC6:

63mW per Resistor

250mW per Package

RC6D:

220

RC6E:

180

X7R

±20% at 1MHz, 25°C

25 Vdc

±15%

2.5% Max.

125Vdc, 5 sec. 50mA Charge

≥10,000

Megohms

O -40°C to +125°C

Capacitance, Maximum, pF

Capacitor Characteristic

Capacitor Tolerance

Capacitor Voltage Rating

Capacitor, Maximum,

ΔC,

-55°C to +125°C

Capacitor Dissipation Factor

Capacitor Dielectric Withstanding Voltage

Capacitor Insulation Resistance

Operating Temperature Range

Specifications subject to change without notice.

Environmental

Solderability

Life

Thermal Shock

Moisture Resistance

MIL-STD-202, Method 208, Cond. B, 95% Coverage

1,000 hours at 70°C (±3%+0.2 Ohms

ΔR,

±10%

ΔC)

MIL-STD-202F, Method 107, Cond. A (±3%+0.2 Ohms

ΔR,

±10%

ΔC)

MIL-STD-202F, Method 106 (±3%+0.2 Ohms

ΔR,

±10%

ΔC)

General Note

TT electronics reserves the right to make changes in product specification without notice or liability.

All information is subject to TT electronics’ own data and is considered accurate at time of going to print.

www.bitechnologies.com www.irctt.com www.welwyn-tt.com

03.12
