AM26LS31MN datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> AM26LS31MN

AM26LS31MN: DescriptionLine Driver/Receiver, 4 Driver, BIPolar, PDIP16,; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size134KB，5 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/

Download Datasheet Parametric Compare View All

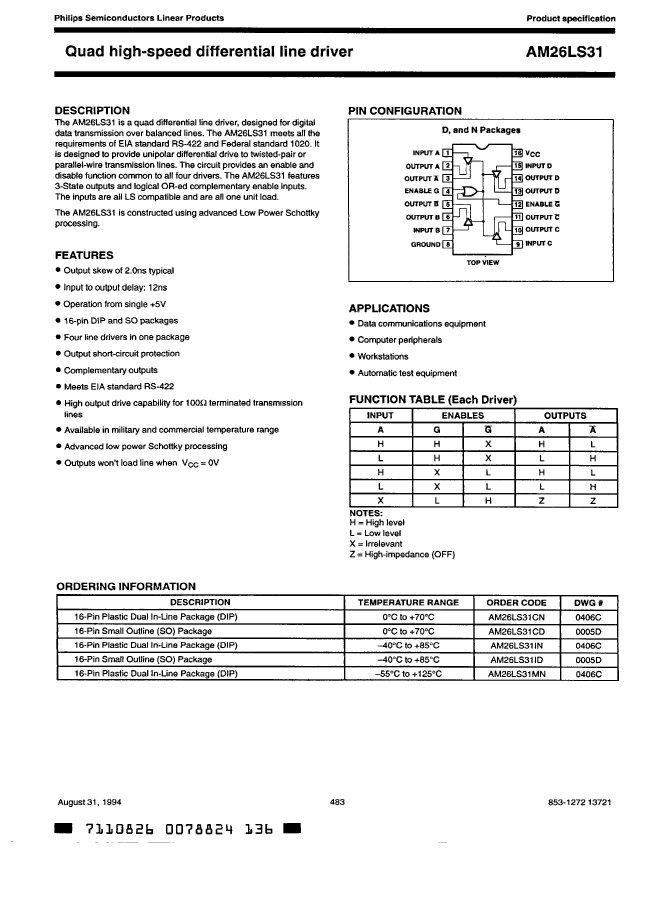

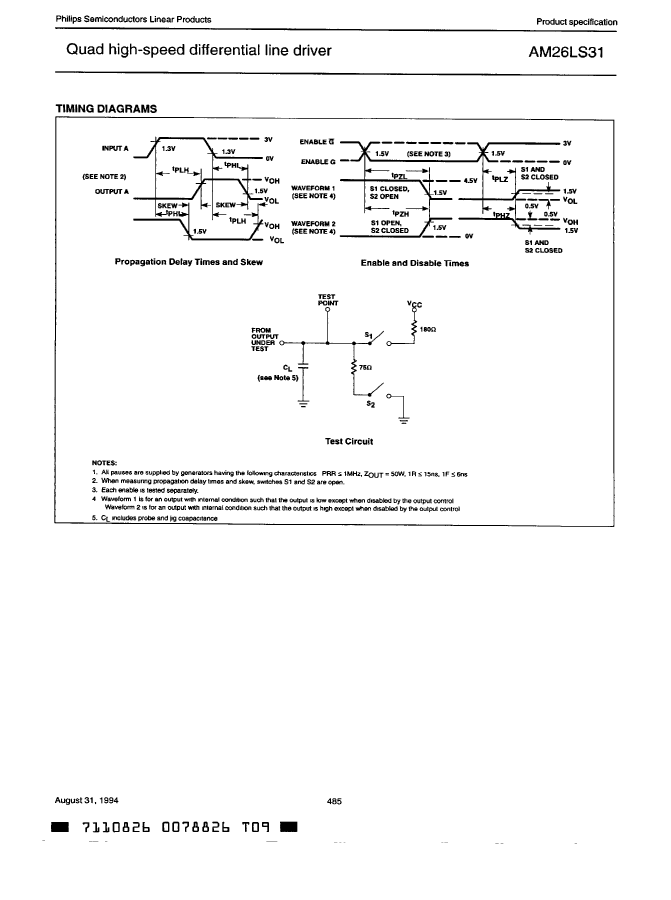

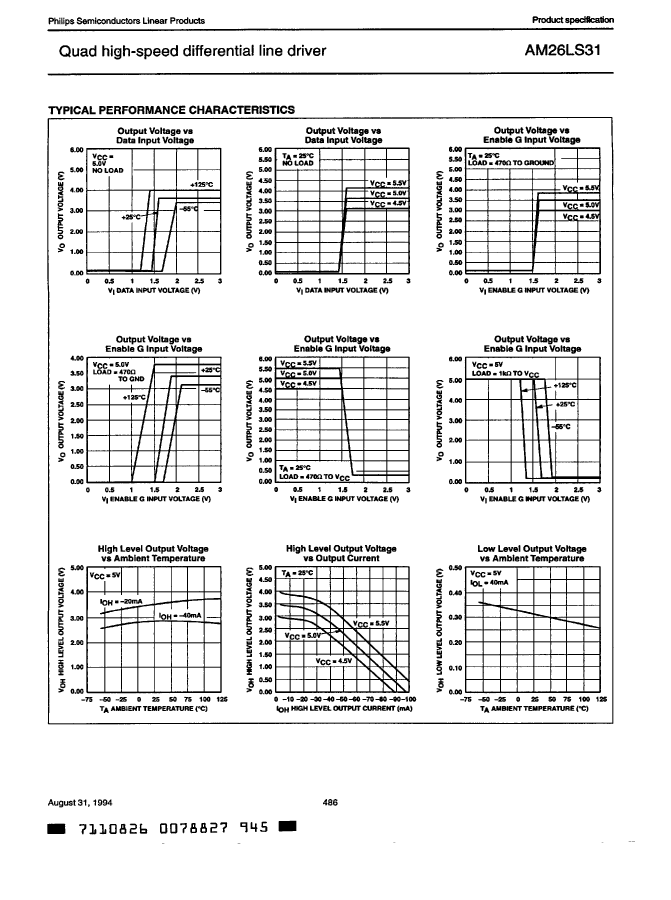

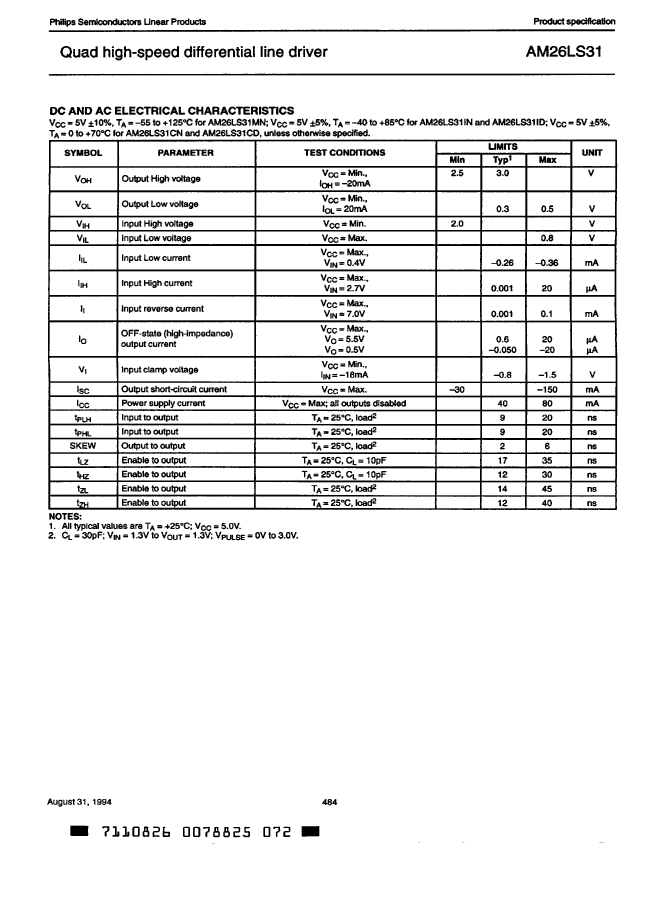

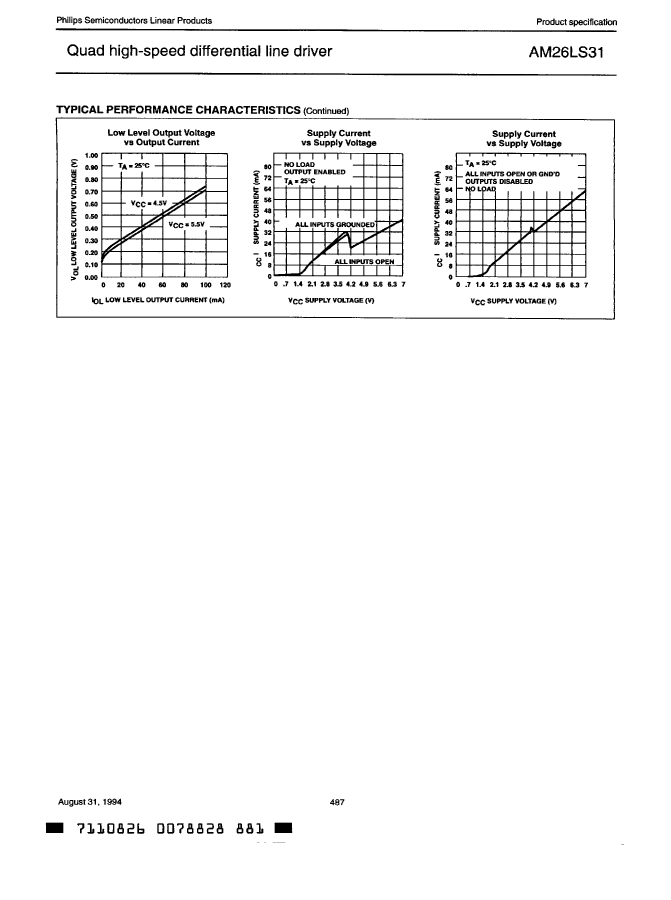

AM26LS31MN Overview

Line Driver/Receiver, 4 Driver, BIPolar, PDIP16,

AM26LS31MN Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DIP, DIP16,.3
Reach Compliance Code	unknown
Differential output	YES
Number of drives	4
High level input current maximum value	0.00002 A
JESD-30 code	R-PDIP-T16
JESD-609 code	e0
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Minimum output swing	2 V
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Nominal supply voltage	5 V
surface mount	NO
technology	BIPOLAR
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
maximum transmission delay	20 ns
Base Number Matches	1

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

AM26LS31MN Related Products

	AM26LS31MN	AM26LS31IN	AM26LS31ID	AM26LS31CN	AM26LS31CD
Description	Line Driver/Receiver, 4 Driver, BIPolar, PDIP16,	Line Driver/Receiver, 4 Driver, BIPolar, PDIP16,	Line Driver/Receiver, 4 Driver, BIPolar, PDSO16,	Line Driver/Receiver, 4 Driver, BIPolar, PDIP16,	Line Driver/Receiver, 4 Driver, BIPolar, PDSO16,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	DIP, DIP16,.3	DIP, DIP16,.3	SOP, SOP16,.25	DIP, DIP16,.3	SOP, SOP16,.25
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Differential output	YES	YES	YES	YES	YES
Number of drives	4	4	4	4	4
High level input current maximum value	0.00002 A	0.00002 A	0.00002 A	0.00002 A	0.00002 A
JESD-30 code	R-PDIP-T16	R-PDIP-T16	R-PDSO-G16	R-PDIP-T16	R-PDSO-G16
JESD-609 code	e0	e0	e0	e0	e0
Number of terminals	16	16	16	16	16
Maximum operating temperature	125 °C	85 °C	85 °C	70 °C	70 °C
Minimum operating temperature	-55 °C	-40 °C	-40 °C	-	-
Minimum output swing	2 V	2 V	2 V	2 V	2 V
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	SOP	DIP	SOP
Encapsulate equivalent code	DIP16,.3	DIP16,.3	SOP16,.25	DIP16,.3	SOP16,.25
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE
power supply	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	YES	NO	YES
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	MILITARY	INDUSTRIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	GULL WING	THROUGH-HOLE	GULL WING
Terminal pitch	2.54 mm	2.54 mm	1.27 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
maximum transmission delay	20 ns	20 ns	20 ns	20 ns	20 ns
Base Number Matches	1	1	1	-	-
