SMFMLDL-TTL-175 datasheet, PDF

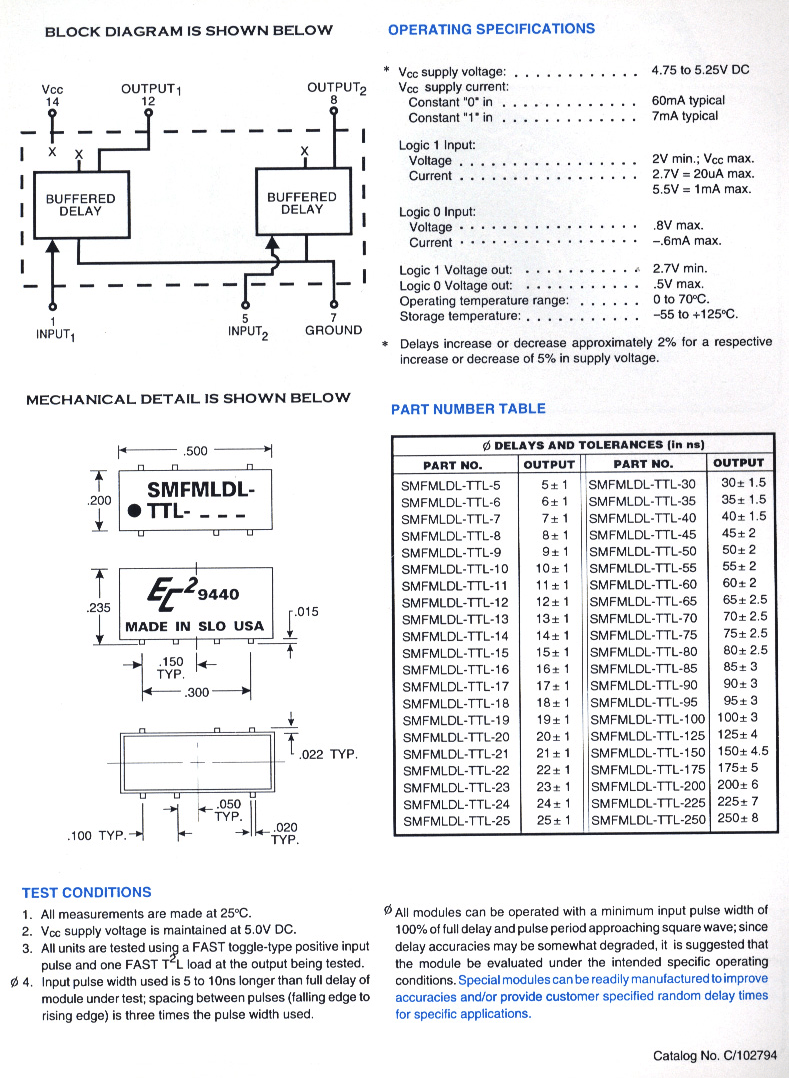

SMFMLDL-TTL-175: DescriptionActive Delay Line, 2-Func, 1-Tap, True Output, TTL, 0.235 INCH HEIGHT, DIP HOUSING, SO-14/6; Categorylogic logic; File Size445KB，1 Pages; ManufacturerEngineered Components Co.

Download Datasheet Parametric View All

SMFMLDL-TTL-175 Overview

Active Delay Line, 2-Func, 1-Tap, True Output, TTL, 0.235 INCH HEIGHT, DIP HOUSING, SO-14/6

Parameter Name	Attribute value
Parts packaging code	SOIC
package instruction	SOL, SOP14,.25
Contacts	6
Reach Compliance Code	unknown
Other features	TYP. ICC = 60MA; INTERNAL TERMINATION; MAX RISE TIME CAPTURED
series	F
JESD-30 code	R-XDSO-L6
length	12.7 mm
Logic integrated circuit type	ACTIVE DELAY LINE
Number of functions	2
Number of taps/steps	1
Number of terminals	6
Maximum operating temperature	70 °C
Minimum operating temperature
Output polarity	TRUE
Package body material	UNSPECIFIED
encapsulated code	SOL
Encapsulate equivalent code	SOP14,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	5 V
programmable delay line	NO
Prop。Delay @ Nom-Sup	180 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	COMMERCIAL
Terminal form	L BEND
Terminal pitch	2.54 mm
Terminal location	DUAL
Total delay nominal (td)	175 ns
width	5.08 mm
Base Number Matches	1
