DATA SHEET
PG4001 thru PG4007
GLASS PASSIVATED JUNCTION PLASTIC RECTIFIER
VOLTAGE
FEATURES
• Plastic package has Underwriters Laboratory
1.0(25.4)MIN.
50 to 1000 Volts
CURRENT
1.0 Amperes
DO-41
Unit: inch(mm)
• Flammability Classification 94V-O utilizing
Flame Retardant Epoxy Molding Compound.
• Exceeds environmental standards of MIL-S-19500/228
.034(.86)
.028(.71)
• Pb free product are available : 99% Sn above can meet Rohs environment
substance directive request
.205(5.2)
.160(4.1)
1.0(25.4)MIN.
MECHANCAL DATA
Case: Molded plastic, JEDEC DO-41
Terminals: Axial leads, solderable per MIL-STD-202G,Method 208
Polarity: Color Band denotes cathode
Mounting Position: Any
Weight: 0.012 ounce, 336mg
.107(2.7)
.080(2.0)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25°C ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load.
PARAMETER
SYMBOL
PG4001 PG4002 PG4003 PG4004
50
35
50
100
70
100
200
140
200
400
280
400
1.0
30
1.1
5.0
50
15
50
PG4005
600
420
600
PG4006
800
560
800
PG4007
1000
700
1000
UNITS
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Current .375"(9.5mm)
lead length at T
A
=75
O
C
Peak Forward Surge Current : 8.3ms single half sine-wave
superimposed on rated load(JEDEC method)
Maximum Forward Voltage at 1.0A
Maximum DC Reverse Current T
A
=25
O
C
at Rated DC Blocking Voltage T
A
=100
O
C
Typical Junction capacitance (Note 1)
Typical Thermal Resistance
Operating and Storage Temperature RangeT
J
,T
STG
V
RRM
V
RMS
V
DC
I
AV
I
FSM
V
F
I
R
C
J
RθJA
T
J
,T
STG
V
V
V
A
A
V
uA
pF
O
C/W
O
-55 TO +150
C
NOTES:
1. Measured at 1 MHz and applied reverse voltage of 4.0 VDC.
* JEDEC Registered Value
STAD-JAN.10.2005
PAGE . 1

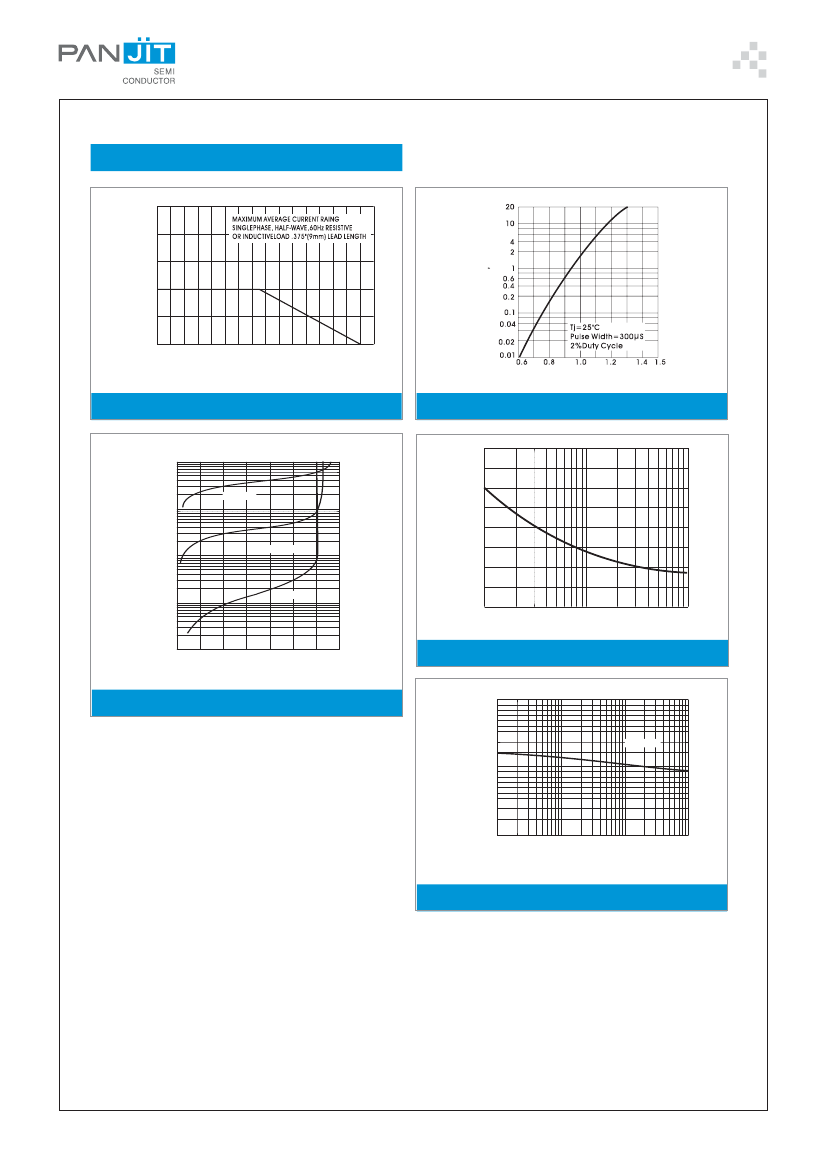

RATING AND CHARACTERISTIC CURVES
2.0
1.5
1.0
0.5
0
0
20
40
60
80
100
120
140
160
AMBIENT TEMPERAURE,
O
C
INSTANTANEOUS FORWARD CURRENT
AMPERES
INSTANTANEOUS FORWARD VOLTAGE, VOLTS
AVERAGEFORWARDRECITIFIED
CURRENTAMPERES
2.5
Fig.1- FORWARD CURRENT DERATING CURVE
Fig.2- TYPICAL INSTANTANEOUS FORWARD
CHARACTERISTIC
40
PEAK FORWARD SURGE CURRENT,
AMPERES
INSTANTANEOUS REVERSE CURRENT, uA
100
35
30
25
20
15
10
5
0
1
2
5
10
20
50
100
T
J
= 1 C
50
O
10
1.0
T
J
= 100 C
O
T
J
= 2 C
5
O
0.1
NO. OF CYCLE AT 60HZ
0.01
20
40
60
80
100
120
140
Fig.4- MAXIMUM NON - REPETITIVE SURGE CURRENT
PERCENTAGE OF PEAK REVERSE VOLTAGE,%
Fig.3- TYPICAL REVERSE CHARACTERISTIC
CAPACITANCE, pF
100
60
40
20
10
6
4
2
1
0.1
0.4
1.0
4
10
40
100
T
J
= 25 C
O
REVERSE VOLTAGE, VOLTS
Fig.5- TYPICAL JUNCTION CAPACITANCE
STAD-JAN.10.2005
PAGE . 2
