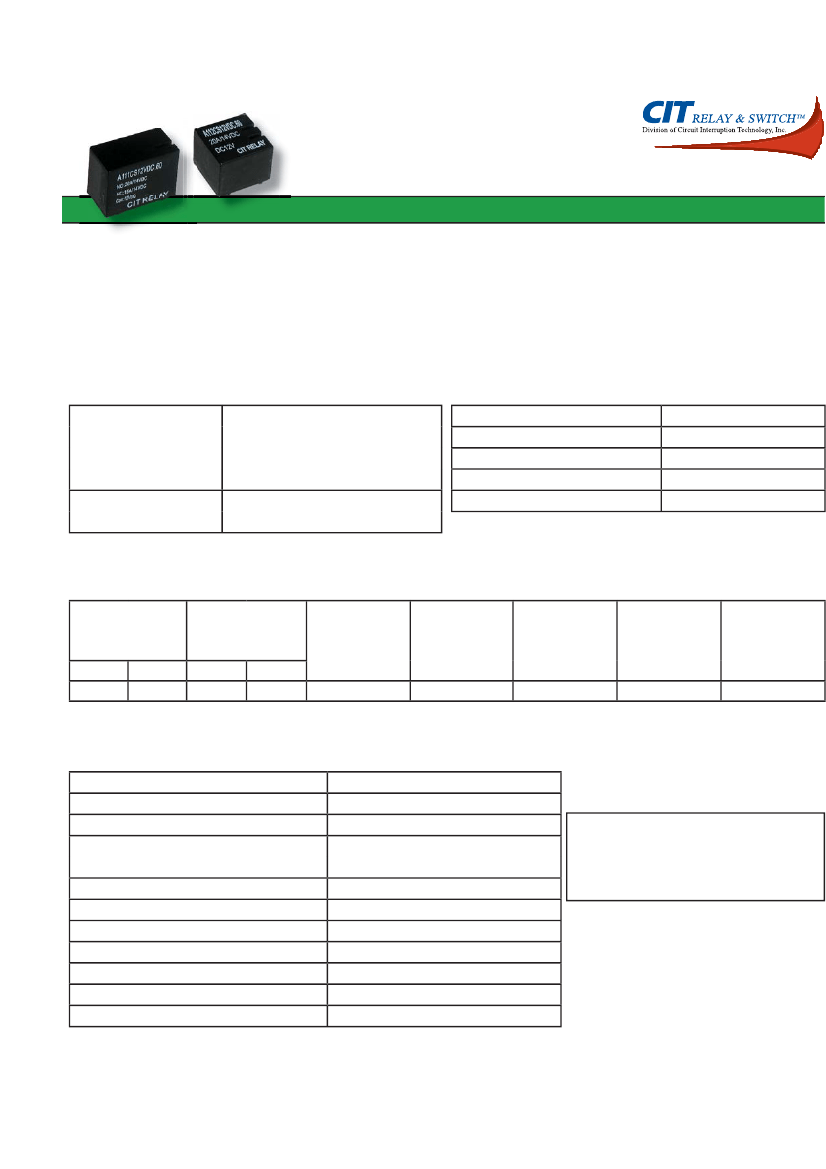

RoHS Compliant
17.8 x 9.6 (17.0) x 13.2 mm
A11
Features
•
•
•
•
•
Switching capacity up to 20A
Small size and light weight
Dual relay available
Low coil power consumption
Suitable for automobile and consumer electronics applications
Contact Data
Contact Arrangement
Specifications and availability subject to change without notice.
1A = SPST N.O.
1C = SPDT
2A = (2) SPST N.O.
2C = (2) SPDT
Contact Resistance
Contact Material
Maximum Switching Power
Maximum Switching Voltage
Maximum Switching Current
< 50 milliohms initial
AgSnO
2
280W
40VDC
20A
Contact Rating
20A @ 14VDC N.O.
15A @ 14VDC N.C.
Coil Data
Coil Voltage
VDC
Rated
12
Max
18
Coil Resistance
Ω
+/- 10%
.6W
240
.8W
180
Pick Up Voltage
VDC (max)
70% of rated
voltage
8.40
Release Voltage
VDC (min)
10% of rated
voltage
1.2
.60 or .80
8
5
Coil Power
W
Operate Time
ms
Release Time
ms
General Data
Dimensions shown in mm. Dimensions are shown for reference purposes only.
Electrical Life @ rated load
Mechanical Life
Insulation Resistance
Dielectric Strength, Coil to Contact
Contact to Contact
Shock Resistance
Vibration Resistance
Terminal (Copper Alloy) Strength
Operating Temperature
Storage Temperature
Solderability
Weight
100K cycles, typical
10M cycles, typical
100M
Ω
min. @ 500VDC
500V rms min. @ sea level
500V rms min. @ sea level
300m/s
2
for 11 ms
1.50mm double amplitude 10~40Hz
5N
-40
o
C to +85
o
C
-40
o
C to +155
o
C
260
o
C for 5 s
5g, 10g
Caution
1. The use of any coil voltage less than the
rated coil voltage may compromise the
operation of the relay.
www.citrelay.com
phone - 763.535.2339
fax - 763.535.2194
A11
Ordering Information
1. Series
A11
2. Contact Arrangement
1A = SPST N.O.
1C = SPDT
2A = (2) SPST N.O.
2C = (2) SPDT
3. Sealing Option
S = Sealed
C = Dust Cover
4. Coil Voltage
12VDC
Dimensions shown in mm. Dimensions are shown for reference purposes only.
A11
2C
S
12VDC
.80
5. Coil Power
.60 = .60W
.80 = .80W

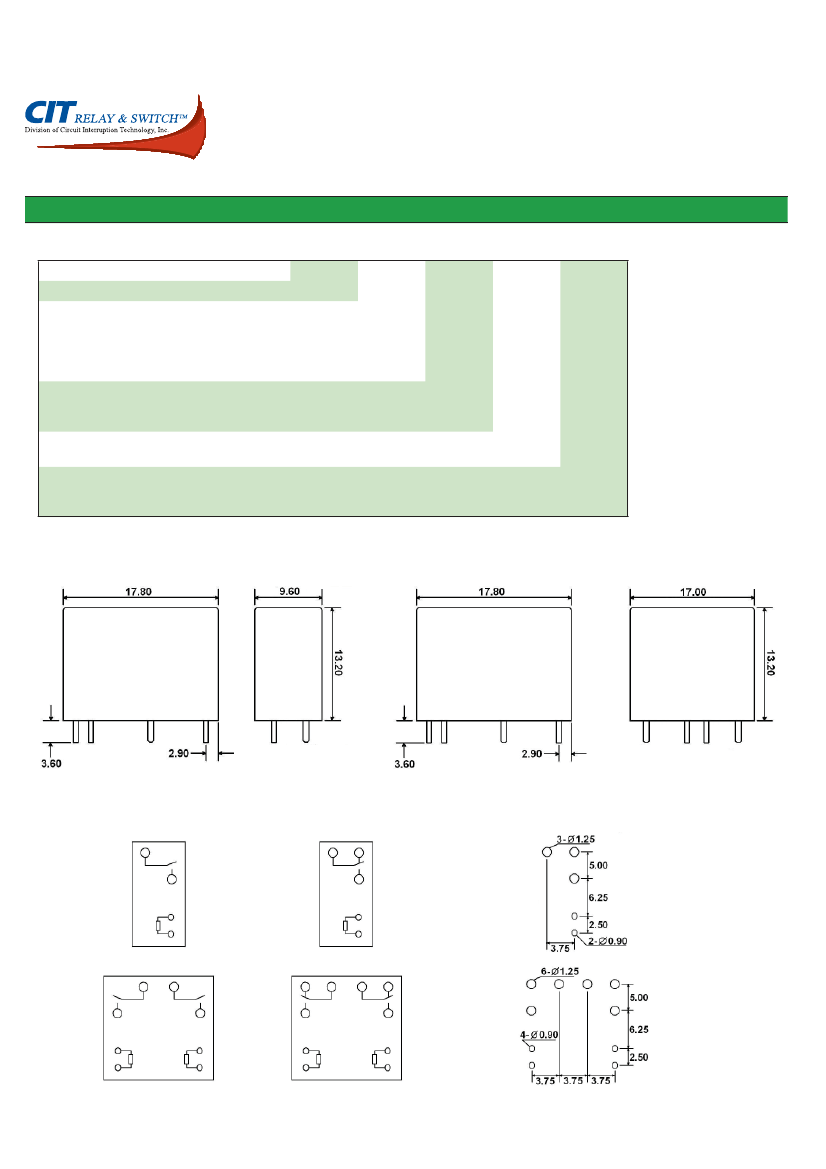

Dimensions
Units = mm
Single Package
Dual Package
Schematics & PC Layouts
Bottom Views
Specifications and availability subject to change without notice.
1A
1C
2A
www.citrelay.com
phone - 763.535.2339
fax - 763.535.2194
2C
