A1109AS-H-1R6N datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> A1109AS-H-1R6N

A1109AS-H-1R6N: Description1 ELEMENT, 1.6 uH, GENERAL PURPOSE INDUCTOR, SMD; CategoryPassive components inductor; File Size71KB，2 Pages; ManufacturerTOKO, INC.; Websitehttps://www.murata.com/; Environmental Compliance

Download Datasheet Parametric View All

A1109AS-H-1R6N Overview

1 ELEMENT, 1.6 uH, GENERAL PURPOSE INDUCTOR, SMD

A1109AS-H-1R6N Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	TOKO, INC.
package instruction	1616
Reach Compliance Code	unknow
ECCN code	EAR99
uppercase and lowercase codes	1616
DC Resistance	0.068 Ω
Nominal inductance(L)	1.6 µH
Inductor Applications	DC-DC CONVERTER
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	DB315C
Number of functions	1
Number of terminals	2
Maximum rated current	1.7 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	30%

Preview

Download Datasheet

View All

づ

け

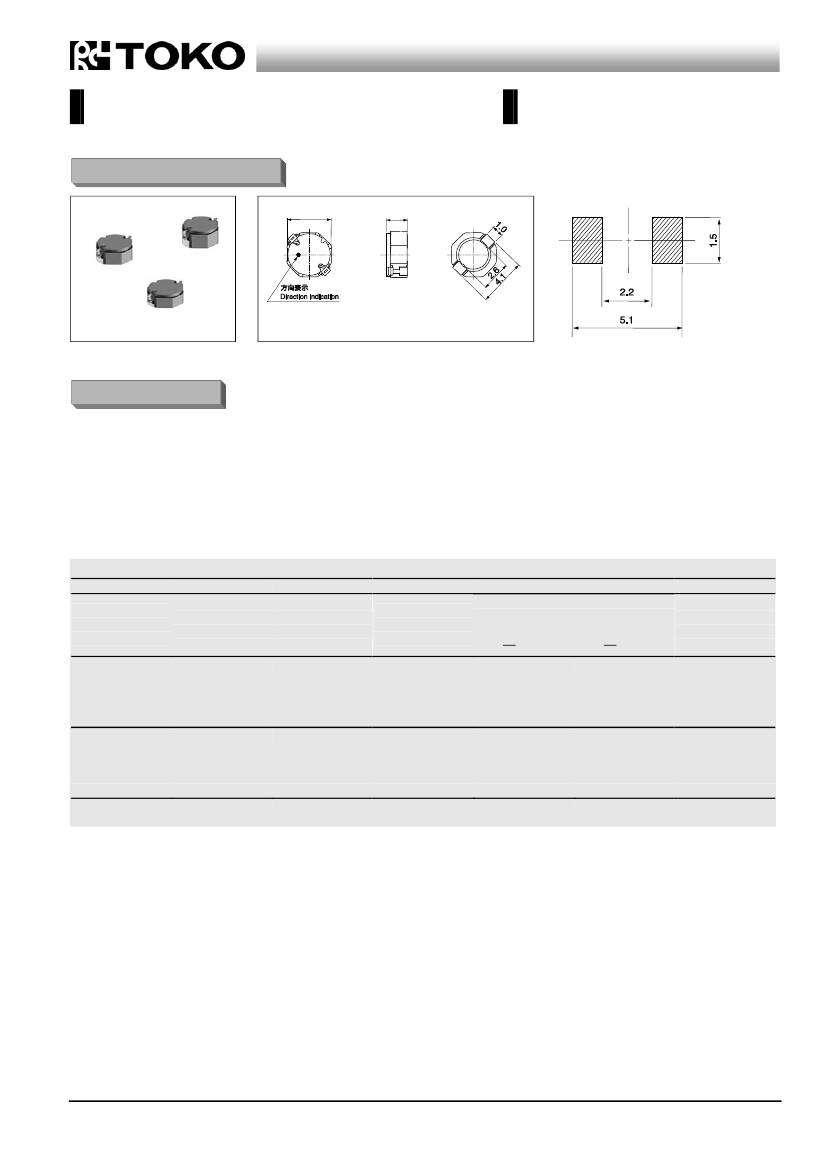

Fixed Inductors for Surface Mounting

面

実装

用固定インダクタ

DB315C/DB318C/DB320C

Inductance Range:

1.0~22μH (DB315C), 1.0~22μH (DB318C), 3.9~27μH (DB320C))

DIMENSIONS／外½寸法図

3.8

Recommended patterns

推奨パターン図

DB320C

DB318C

(Unit: mm)

DB315C

DB315C: 1.5mm Max. height

FEATURES／特長

•

Low profile (4.0mm Max. square,1.5/1.8/2.0mm Max. height).

•

Magnetically shielded construction and low DC resistanse.

•

Ideal for DC-DC converter choke coil for portable equipments

(DVD, DSC, Cellular phone, PDA).

•

RoHS compliant.

DB318C: 1.8mm Max. height

DB320C: 2.0mm Max. height

•

小型薄½構造(4.0mm角Max. 高さ1.5/1.8/2.0mmMax.)

•

閉磁路構造、½直流抵抗

•

小型機器（DVD,

DSC, Cellular phone, PDA）などのDC-

DCコンバータ用チョークコイルに最適

•

RoHS指令対応

TYPE

SELECTION GUIDE FOR STANDARD COILS

DB315C ( Quantity / reel; 2,000 PCS)

インダクタンス

Inductance

(μH)

1.0

1.6

2.2

3.3

4.7

6.8

8.2

10.0

12.0

15.0

18.0

22.0

(1)

東光品番

TOKO

Part

Number

A1109AS-H-1R0N

A1109AS-H-1R6N

A1109AS-H-2R2N

A1109AS-H-3R3M

A1109AS-H-4R7M

A1109AS-H-6R8M

A1109AS-H-8R2M

A1109AS-H-100M

A1109AS-H-120M

A1109AS-H-150M

A1109AS-H-180M

A1109AS-H-220M

許容差

Tolerance

(%)

±30

±20

直流抵抗

(2)

Resistance

(mΩ) Max. (Typ.)

51 (43)

68 (57)

78 (65)

110 (88)

150 (120)

210 (180)

290 (240)

310 (260)

420 (350)

560 (470)

640 (530)

720 (600)

直流重畳許容電流

Inductance

(3)

Decrease Current

(A) Max. (Typ.)

ΔL

=10%

=30%

2.00 (2.70)

1.60 (2.10)

1.40 (1.90)

1.10 (1.50)

0.92 (1.20)

0.72 (0.97)

0.67 (0.89)

0.62 (0.83)

0.55 (0.73)

0.51 (0.68)

0.47 (0.62)

0.41 (0.55)

2.60 (3.50)

2.00 (2.70)

1.80 (2.40)

1.40 (1.90)

1.20 (1.60)

0.96 (1.30)

0.87 (1.20)

0.81 (1.10)

0.72 (0.96)

0.66 (0.88)

0.60 (0.81)

0.54 (0.73)

(3)

温度上昇許容電流

Temperature

(3)

Rise Current

ΔT=40°C

(A) Max. (Typ.)

2.10 (2.50)

1.70 (2.00)

1.60 (1.90)

1.40 (1.60)

1.10 (1.30)

0.93 (1.10)

0.77 (0.91)

0.74 (0.87)

0.62 (0.72)

0.52 (0.62)

0.49 (0.58)

0.45 (0.53)

(3)

continued on next page

次頁へ続く
