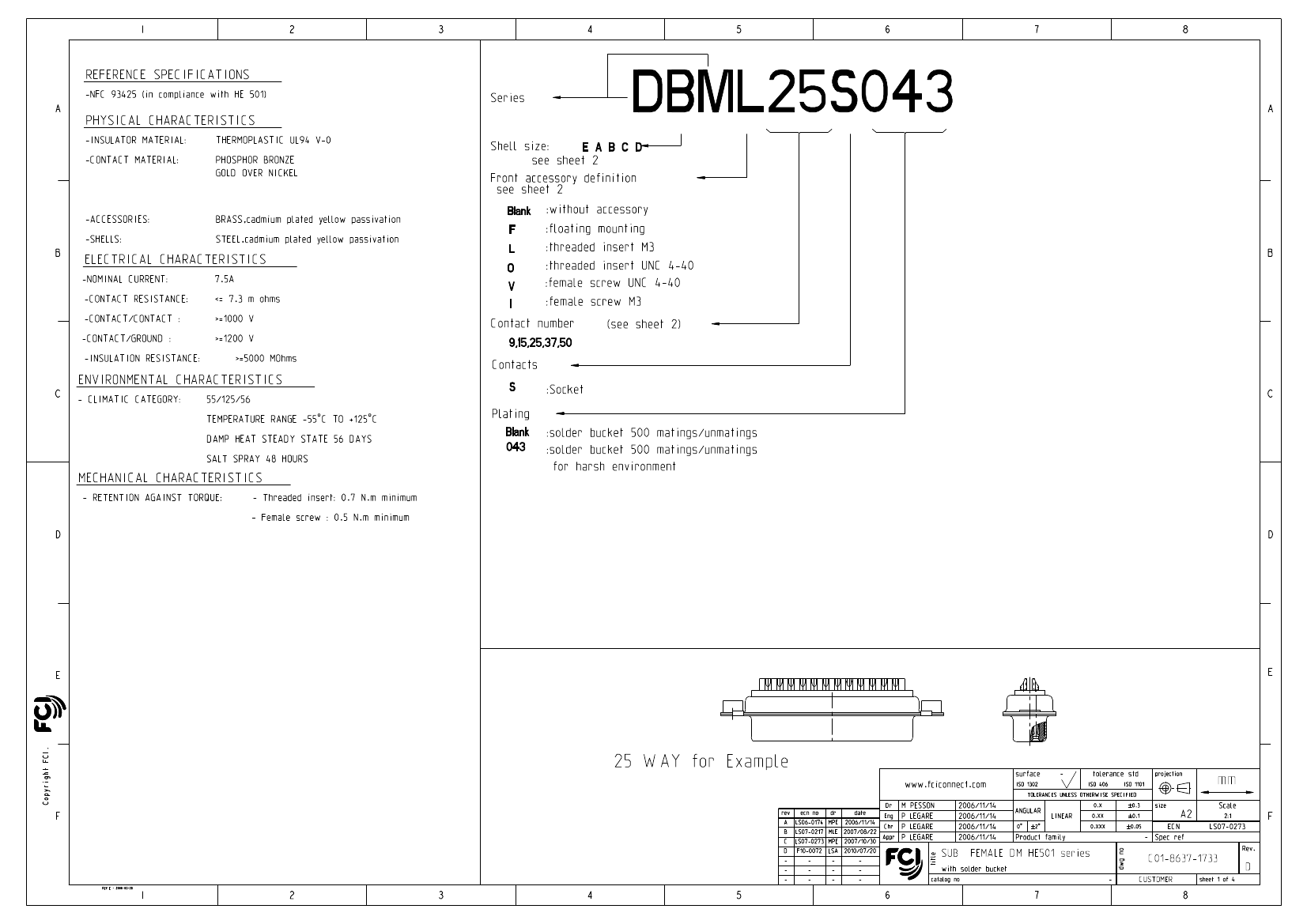

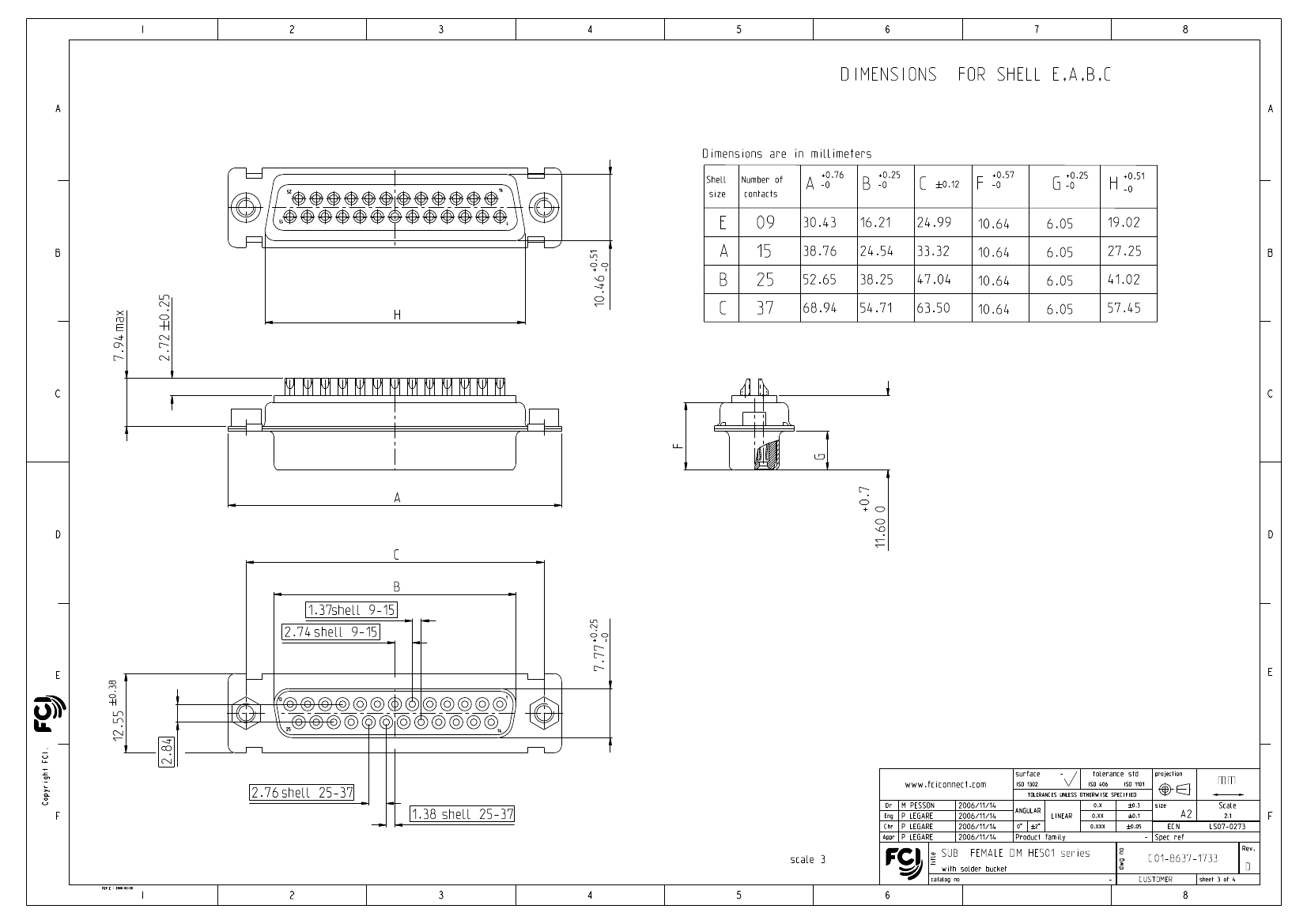

D Subminiature Connector, 25 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, M3, Socket

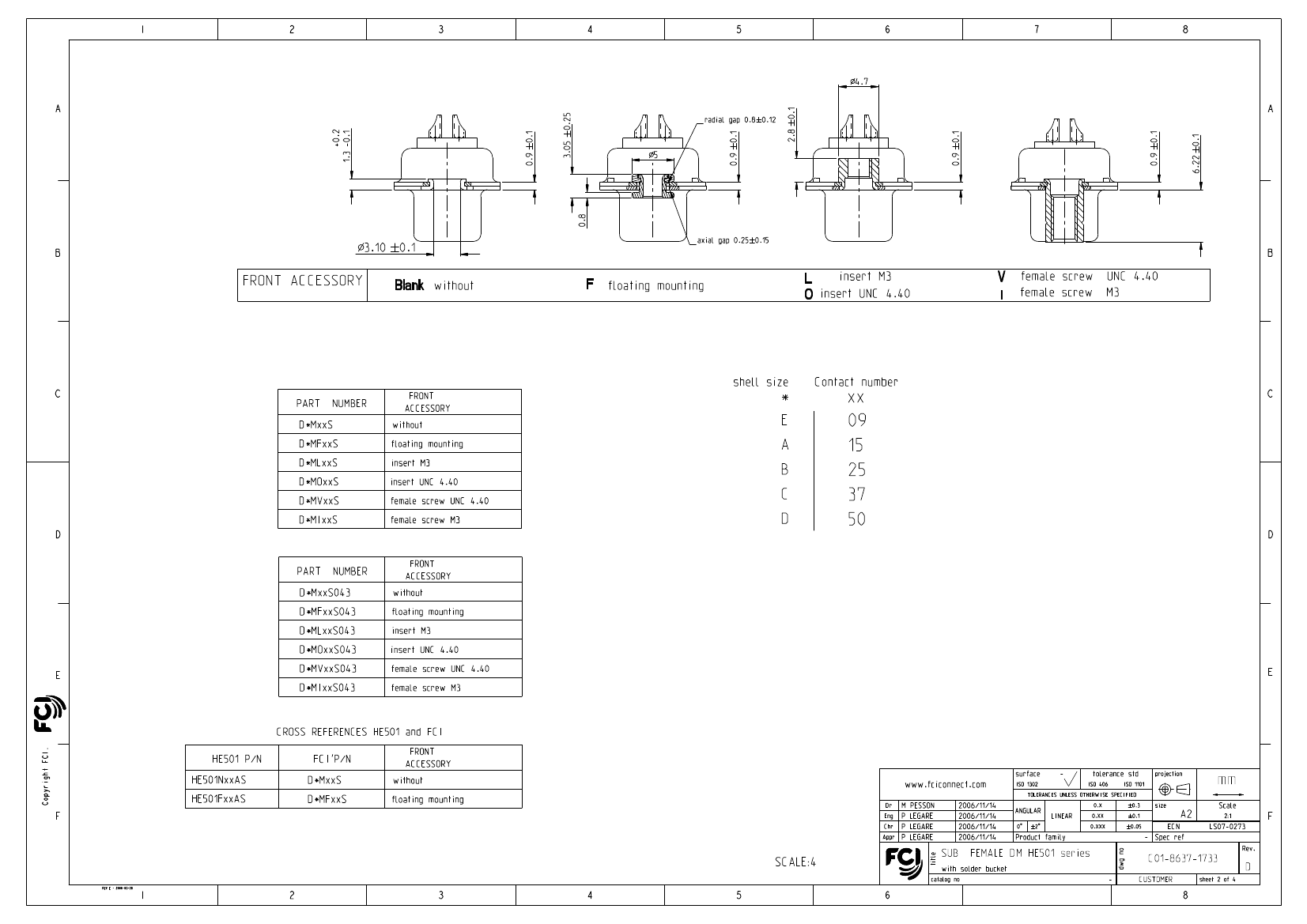

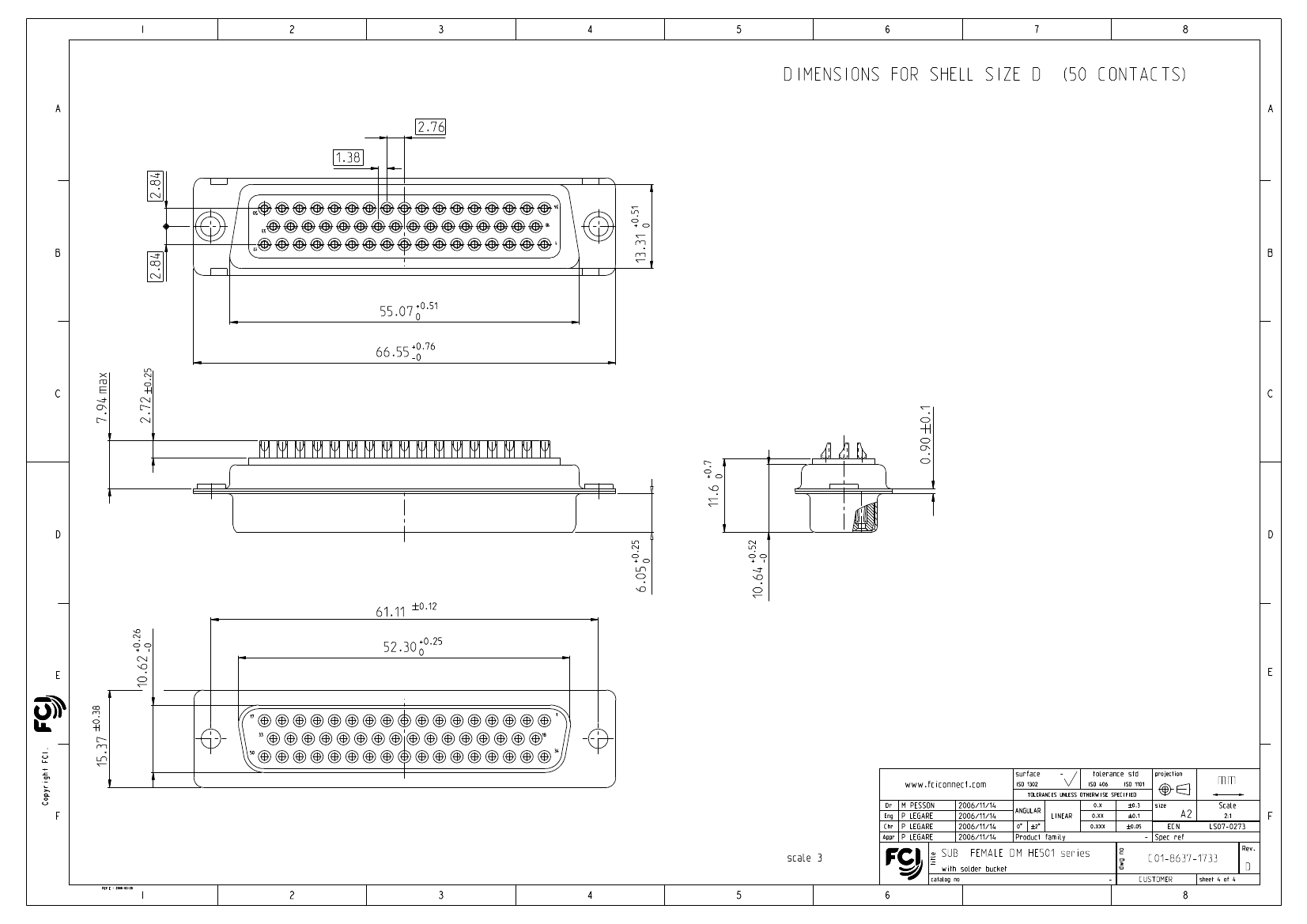

| Parameter Name | Attribute value |
| Reach Compliance Code | compliant |
| body width | 0.494 inch |
| subject depth | 0.313 inch |
| body length | 2.073 inch |
| Body/casing type | SOCKET |
| Connector type | D SUBMINIATURE CONNECTOR |
| Contact to complete cooperation | GOLD OVER NICKEL |
| Contact completed and terminated | GOLD OVER NICKEL |
| Contact point gender | FEMALE |
| Contact material | PHOSPHOR BRONZE |
| contact mode | STAGGERED |
| Contact resistance | 7.3 mΩ |
| Contact style | RND PIN-SKT |
| DIN compliance | NO |
| empty shell | NO |
| Filter function | NO |
| IEC compliance | NO |
| Insulation resistance | 5000000000 Ω |
| insulator material | POLYETHYLENE |
| JESD-609 code | e4 |
| MIL compliance | NO |
| Plug contact pitch | 0.109 inch |
| Match contact row spacing | 0.112 inch |
| Mixed contacts | NO |
| Installation option 1 | M3 |
| Installation option 2 | THREADED INSERT |
| Installation type | PANEL |
| Number of rows loaded | 2 |
| Options | GENERAL PURPOSE |
| Rated current (signal) | 7.5 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Shell surface | CADMIUM |
| Shell material | STEEL |
| Housing size | 3/B |
| Termination type | SOLDER |
| Total number of contacts | 25 |
| UL Flammability Code | 94V-0 |
| Base Number Matches | 1 |
| DBML25S043 | DDMF50S | DAM15S043 | DAMF15S | DAML15S | |
|---|---|---|---|---|---|
| Description | D Subminiature Connector, 25 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, M3, Socket | D Subminiature Connector, 50 Contact(s), Female, 0.108 inch Pitch, Solder Terminal, Locking, Socket | D Subminiature Connector, 15 Contact(s), Female, 0.108 inch Pitch, Solder Terminal, Locking, Socket | D Subminiature Connector, 15 Contact(s), Female, 0.108 inch Pitch, Solder Terminal, Locking, Socket | D Subminiature Connector, 15 Contact(s), Female, 0.108 inch Pitch, Solder Terminal, M3, Socket |
| Reach Compliance Code | compliant | compliant | compliant | compliant | compliant |
| body width | 0.494 inch | 0.605 inch | 0.494 inch | 0.494 inch | 0.494 inch |
| subject depth | 0.313 inch | 0.313 inch | 0.313 inch | 0.313 inch | 0.313 inch |
| Body/casing type | SOCKET | SOCKET | SOCKET | SOCKET | SOCKET |
| Connector type | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR |
| Contact to complete cooperation | GOLD OVER NICKEL | GOLD OVER NICKEL | GOLD OVER NICKEL | GOLD OVER NICKEL | NOT SPECIFIED |
| Contact completed and terminated | GOLD OVER NICKEL | GOLD OVER NICKEL | GOLD OVER NICKEL | GOLD OVER NICKEL | Tin/Lead (Sn/Pb) |
| Contact point gender | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE |
| Contact material | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | NOT SPECIFIED |
| contact mode | STAGGERED | STAGGERED | STAGGERED | STAGGERED | STAGGERED |
| Contact resistance | 7.3 mΩ | 7.3 mΩ | 7.3 mΩ | 7.3 mΩ | 7.3 mΩ |
| Contact style | RND PIN-SKT | RND PIN-SKT | RND PIN-SKT | RND PIN-SKT | RND PIN-SKT |
| DIN compliance | NO | NO | NO | NO | NO |
| empty shell | NO | NO | NO | NO | NO |
| Filter function | NO | NO | NO | NO | NO |
| IEC compliance | NO | NO | NO | NO | NO |
| Insulation resistance | 5000000000 Ω | 5000000000 Ω | 5000000000 Ω | 5000000000 Ω | 5000000000 Ω |
| insulator material | POLYETHYLENE | POLYETHYLENE | POLYETHYLENE | POLYETHYLENE | POLYETHYLENE |
| JESD-609 code | e4 | e4 | e4 | e4 | e0 |
| MIL compliance | NO | NO | NO | NO | NO |
| Plug contact pitch | 0.109 inch | 0.108 inch | 0.108 inch | 0.108 inch | 0.108 inch |
| Match contact row spacing | 0.112 inch | 0.112 inch | 0.112 inch | 0.112 inch | 0.112 inch |
| Mixed contacts | NO | NO | NO | NO | NO |
| Installation option 1 | M3 | LOCKING | LOCKING | LOCKING | M3 |
| Installation type | PANEL | PANEL | PANEL | PANEL | PANEL |
| Number of rows loaded | 2 | 2 | 2 | 2 | 2 |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| Rated current (signal) | 7.5 A | 7.5 A | 7.5 A | 7.5 A | 7.5 A |
| Guideline | UL | UL | UL | UL | UL |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Shell surface | CADMIUM | CADMIUM | CADMIUM | CADMIUM | CADMIUM |
| Shell material | STEEL | STEEL | STEEL | STEEL | STEEL |
| Housing size | 3/B | 5/D | 2/A | 2/A | 2/A |
| Termination type | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER |
| Total number of contacts | 25 | 50 | 15 | 15 | 15 |
| UL Flammability Code | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 |
| body length | 2.073 inch | - | 1.526 inch | 1.526 inch | 1.526 inch |
| Maximum operating temperature | - | 125 °C | 125 °C | 125 °C | - |
| Minimum operating temperature | - | -55 °C | -55 °C | -55 °C | - |
