B78384-P1111-A5 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Power management> transformer> B78384-P1111-A5

Preview

B78384-P1111-A5: DescriptionDatacom Transformer, ISDN Application(s), 1:1:2:2; CategoryPower management transformer; File Size89KB，1 Pages; ManufacturerEPCOS (TDK)

Download Datasheet Parametric View All

B78384-P1111-A5 Overview

Datacom Transformer, ISDN Application(s), 1:1:2:2

B78384-P1111-A5 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	MATCHED TO ICS, INFINEON PEB/PSB 8090,8091,8191; AMD AM79C30A, 79C32A; MIETEC MTC2072, 20276...20279
application	ISDN
Insulation voltage	500 V
Manufacturer's serial number	B78384P1111A005
Installation features	THROUGH HOLE MOUNTED
Number of functions	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
method of packing	TRAY
Primary inductance	30000 µH
surface mount	NO
Transformer type	DATACOM TRANSFORMER
Turns ratio (Np:Ns)	1:1:2:2
Base Number Matches	1

Preview

Download Datasheet

View All

ISDN Transformers

S

0

Interface

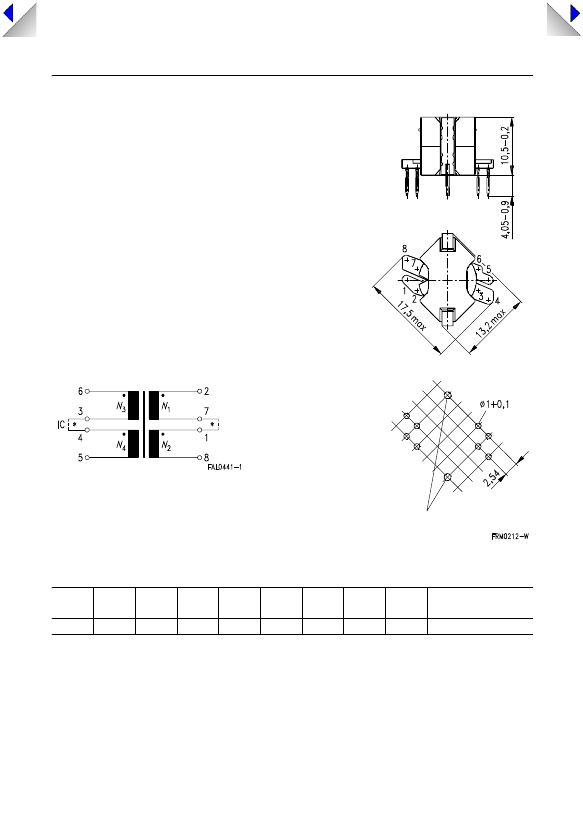

B78384-P1111-A5

Construction

q

RM 5 ferrite core

q

8 pins

Features

q

Complies with CCITT 1.430

Use in TE and NT/PBX

Remote power feeding to TE

Matched to the following Siemens ICs:

PEB 2086, PSB 2186

PEB 2081, PEB 2084

Packing

q

Polyfoam tray

q

Packing unit: 600 pcs.

Transformation ratio

N

1

:

N

2

:

N

3

:

N

4

= 1 : 1 : 2 : 2

Recommended

hole arrangement

Line

* = external connection

Ground Ø1,3+0,1

Technical data

Type

RM 5

∆

I

DC

mA

12

L

H

mH

≥

30

L

S

µH

6

C

K

pF

120

C

W

pF

80

R

CuN

Ω

1,6

R

CuIC

Ω

3,3

V

P

kV

AC

0,5

Ordering code

B78384-P1111-A5

28
