MC75174BDW datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> MC75174BDW

MC75174BDW: DescriptionLine Driver, 4 Func, 4 Driver, BIPolar, PDSO20, PLASTIC, SO-20; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size180KB，12 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

MC75174BDW Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MC75174BDW	-	-	View	Buy Now

MC75174BDW Overview

Line Driver, 4 Func, 4 Driver, BIPolar, PDSO20, PLASTIC, SO-20

MC75174BDW Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	SOP, SOP20,.4
Reach Compliance Code	unknown
ECCN code	EAR99
Differential output	YES
Number of drives	4
High level input current maximum value	0.00002 A
Input properties	STANDARD
Interface integrated circuit type	LINE DRIVER
Interface standards	V.11; X.27; EIA-422-A; EIA-485
JESD-30 code	R-PDSO-G20
JESD-609 code	e0
length	12.8 mm
Number of functions	4
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Minimum output swing	1.5 V
Output characteristics	3-STATE
Output polarity	COMPLEMENTARY
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP20,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	5 V
Certification status	Not Qualified
Maximum seat height	2.65 mm
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
technology	BIPOLAR
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
maximum transmission delay	25 ns
width	7.5 mm
Base Number Matches	1

Preview

Download Datasheet

View All

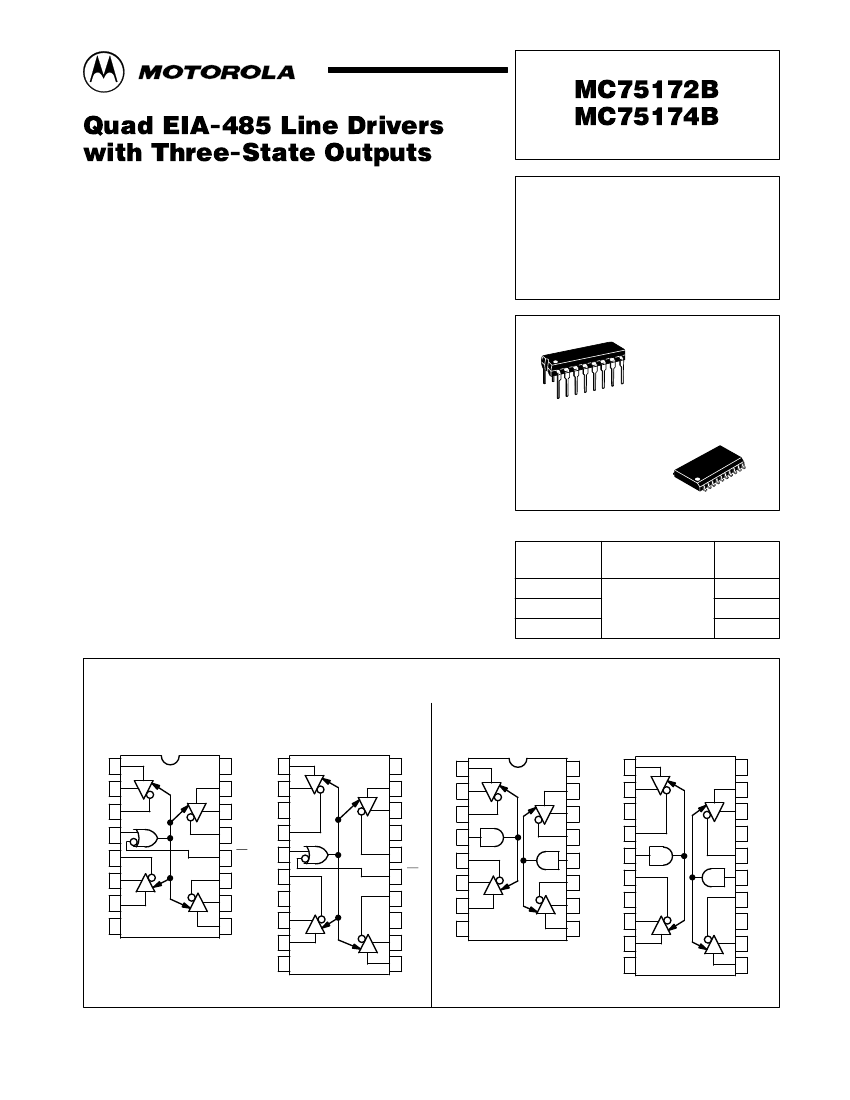

Order this document by MC75172B/D

Quad EIA-485 Line Drivers

with Three-State Outputs

The Motorola MC75172B/174B Quad Line drivers are differential high

speed drivers designed to comply with the EIA–485 Standard. Features

include three–state outputs, thermal shutdown, and output current limiting in

both directions. These devices also comply with EIA–422–A, and CCITT

Recommendations V.11 and X.27.

The MC75172B/174B are optimized for balanced multipoint bus

transmission at rates in excess of 10 MBPS. The outputs feature wide

common mode voltage range, making them suitable for party line

applications in noisy environments. The current limit and thermal shutdown

features protect the devices from line fault conditions. These devices offer

optimum performance when used with the MC75173 and MC75175 line

receivers.

Both devices are available in 16–pin plastic DIP and 20–pin wide body

surface mount packages.

•

Meets EIA–485 Standard for Party Line Operation

MC75172B

MC75174B

QUAD EIA–485 LINE DRIVERS

SEMICONDUCTOR

TECHNICAL DATA

P SUFFIX

PLASTIC PACKAGE

CASE 648

•

Meets EIA–422–A and CCITT Recommendations V.11 and X.27

Operating Ambient Temperature: –40°C to +85°C

High Impedance Outputs

Common Mode Output Voltage Range: –7 to 12 V

Positive and Negative Current Limiting

Transmission Rates in Excess of 10 MBPS

Thermal Shutdown at 150°C Junction Temperature, (± 20°C)

Single 5.0 V Supply

Pin Compatible with TI SN75172/4 and NS

µA96172/4

Interchangeable with MC3487 and AM26LS31 for EIA–422–A

Applications

Device

MC75172BDW

MC75174BDW

MC75174BP

TA = – 40° to +85°C

DW SUFFIX

PLASTIC PACKAGE

CASE 751D

(SO–20L)

ORDERING INFORMATION

Operating

Temperature Range

Package

SO–20L

Plastic DIP

PIN CONNECTIONS

MC75172B

1A 1

1Y 2

1Z 3

En 4

2Z 5

2Y 6

2A 7

Gnd 8

P Package

16 VCC 1A 1

15 4A

14 4Y

13 4Z

12 En

11 3Z

10 3Y

9 3A

1Y 2

NC 3

1Z 4

En 5

2Z 6

NC 7

2Y 8

2A 9

Gnd 10

DW Package

20 VCC

19 4A

18 4Y

17 NC

16 4Z

15 En

14 3Z

13 NC

12 3Y

11 3A

MC75174B

16 VCC 1A 1

15 4A

1Y 2

20 VCC

19 4A

18 4Y

17 NC

16 4Z

15 En

14 3Z

13 NC

12 3Y

11 3A

DW Package

1A 1

1Y 2

1Z 3

En 4

2Z 5

2Y 6

2A 7

Gnd 8

P Package

14 4Y NC 3

13 4Z

12 En

11 3Z

10 3Y

9 3A

1Z 4

En 5

2Z 6

NC 7

2Y 8

2A 9

Gnd 10

Motorola, Inc. 1996

Rev 1

MOTOROLA ANALOG IC DEVICE DATA
