DB-25P-R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> DB-25P-R

DB-25P-R: DescriptionD Subminiature Connector, 25 Contact(s), Male, Wire Wrap Terminal, Locking, Receptacle,; CategoryThe connector The connector; File Size852KB，6 Pages; ManufacturerJapan Aviation Electronics Industry Limited

Download Datasheet Parametric Compare View All

DB-25P-R Overview

D Subminiature Connector, 25 Contact(s), Male, Wire Wrap Terminal, Locking, Receptacle,

DB-25P-R Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.496 inch
subject depth	0.185 inch
body length	2.087 inch
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	GOLD
Contact completed and terminated	Gold (Au)
Contact point gender	MALE
Contact material	COPPER ALLOY
Contact resistance	2.7 mΩ
DIN compliance	NO
Dielectric withstand voltage	1750VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	3.892 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYAMIDE
JESD-609 code	e4
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	CABLE AND PANEL
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	CHROMATE
Shell material	STEEL
Housing size	3/B
Termination type	SOLDER
Total number of contacts	25
UL Flammability Code	94V-0
Maximum wire diameter	20 AWG
Minimum wire diameter	20 AWG
Base Number Matches	1

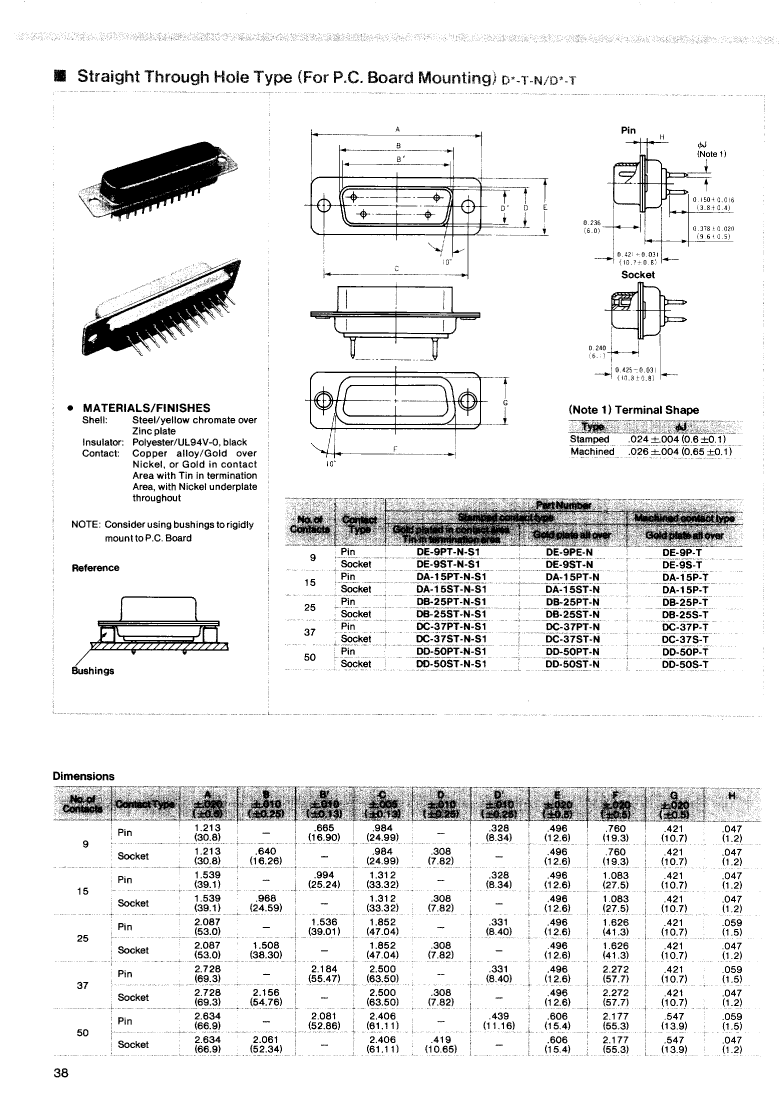

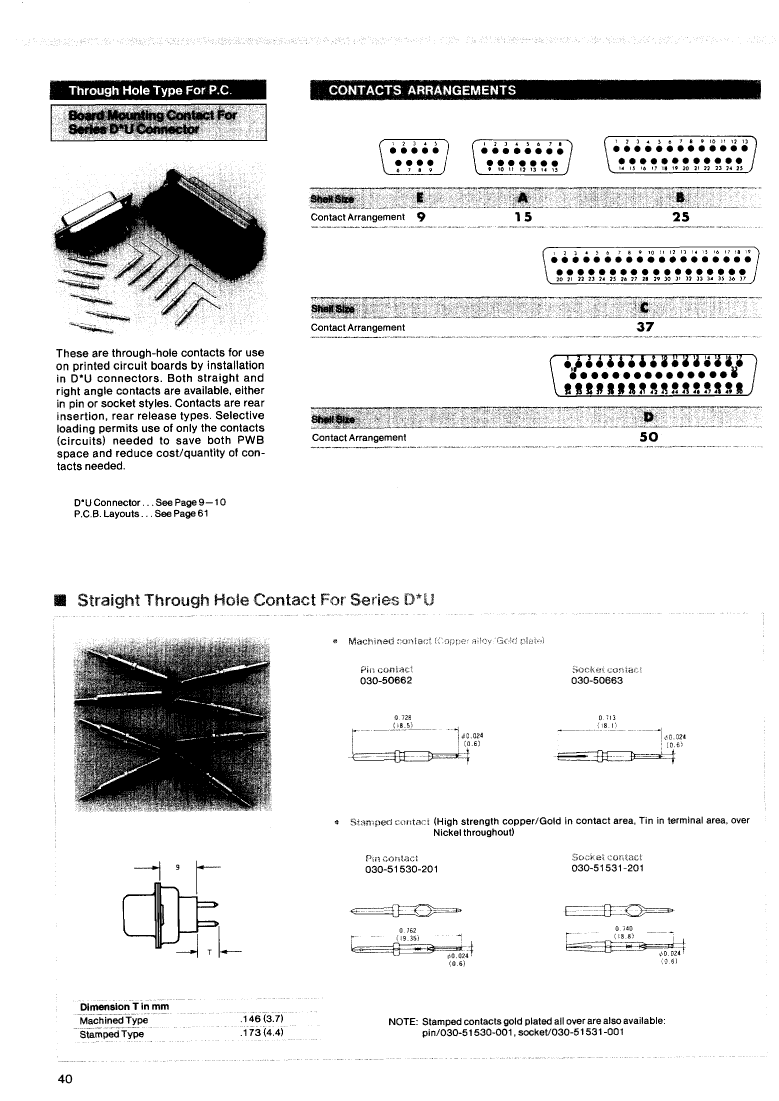

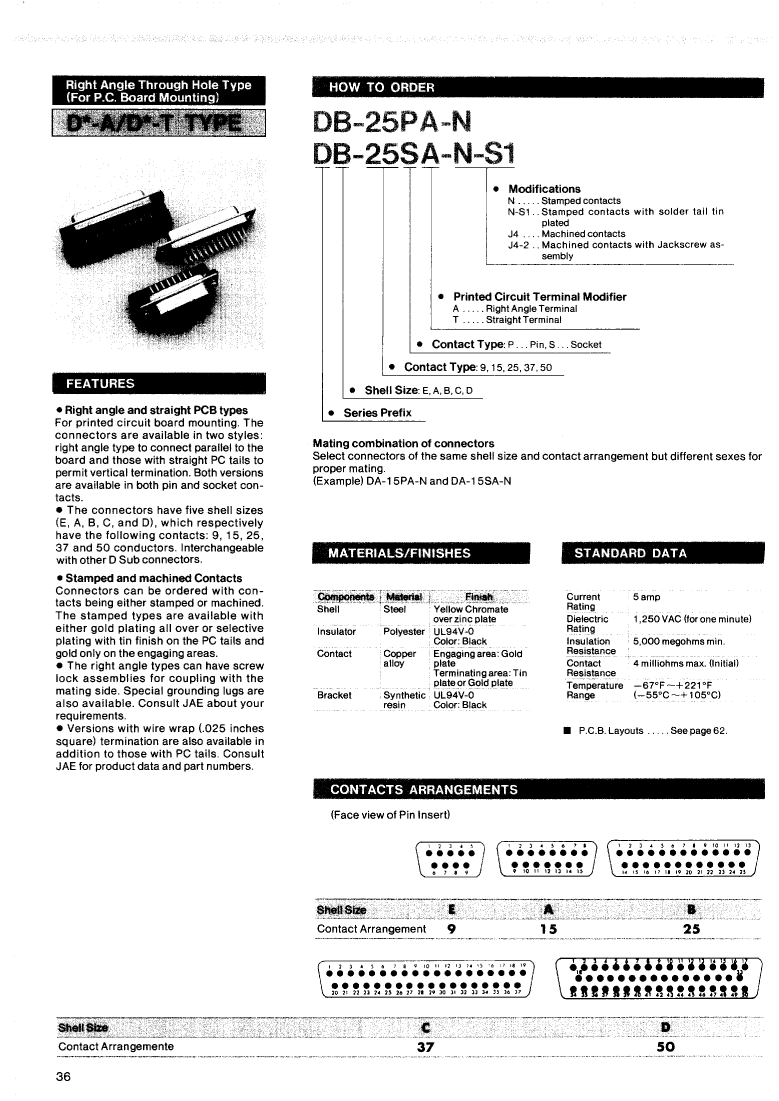

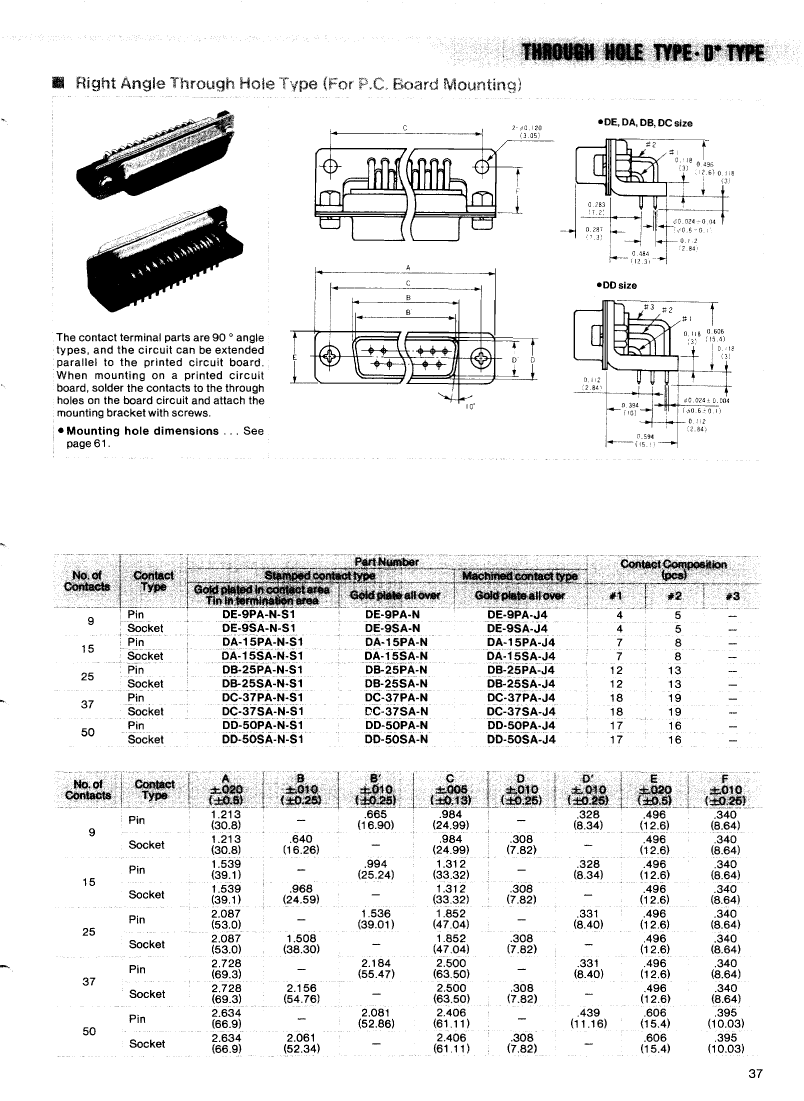

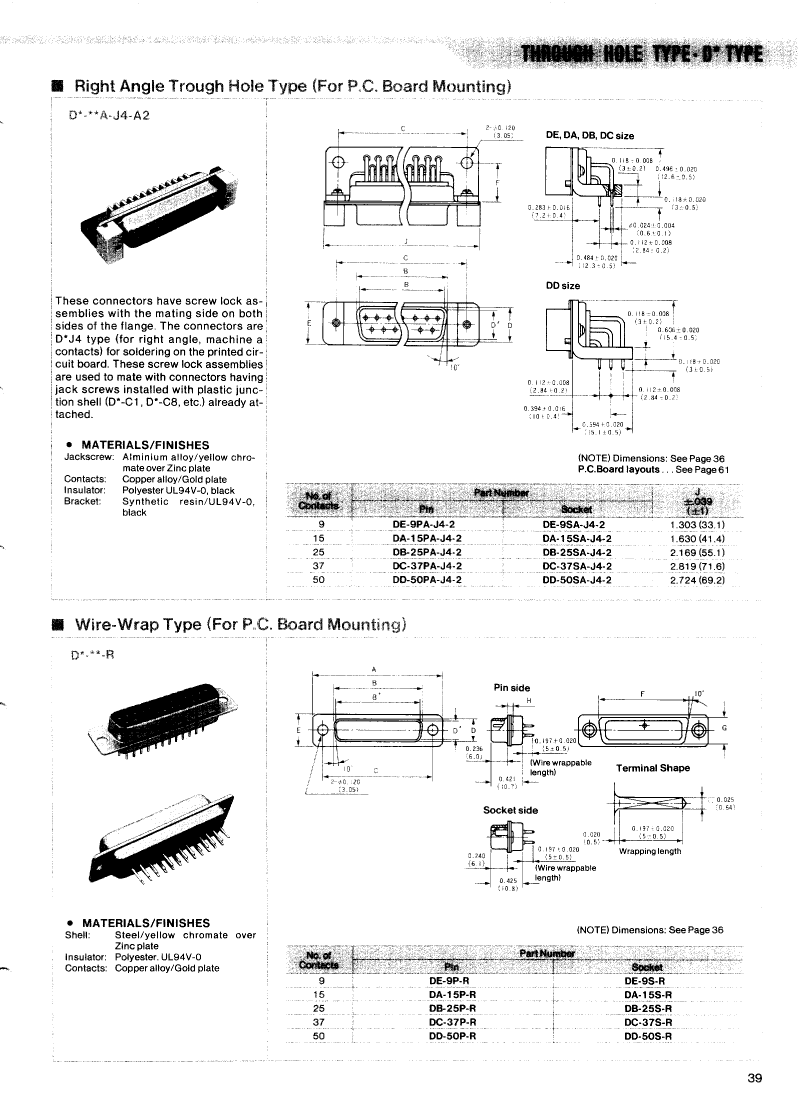

Preview

Download Datasheet

View All

DB-25P-R Related Products

	DB-25P-R	DE-9S-R	DC-37P-R	DB-25S-R	DC-37S-R	DD-50P-R	DE-9P-R	DA-15P-R	DA-15S-R
Description	D Subminiature Connector, 25 Contact(s), Male, Wire Wrap Terminal, Locking, Receptacle,	D Subminiature Connector, 9 Contact(s), Female, Wire Wrap Terminal, Locking, Plug,	D Subminiature Connector, 37 Contact(s), Male, Wire Wrap Terminal, Locking, Receptacle,	D Subminiature Connector, 25 Contact(s), Female, Wire Wrap Terminal, Locking, Plug,	D Subminiature Connector, 37 Contact(s), Female, Wire Wrap Terminal, Locking, Plug,	D Subminiature Connector, 50 Contact(s), Male, Wire Wrap Terminal, Locking, Receptacle,	D Subminiature Connector, 9 Contact(s), Male, Wire Wrap Terminal, Locking, Receptacle,	D Subminiature Connector, 15 Contact(s), Male, Wire Wrap Terminal, Locking, Receptacle,	D Subminiature Connector, 15 Contact(s), Female, Wire Wrap Terminal, Locking, Plug,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
body width	0.496 inch	0.496 inch	0.496 inch	0.496 inch	0.496 inch	0.606 inch	0.496 inch	0.496 inch	0.496 inch
subject depth	0.185 inch	0.185 inch	0.185 inch	0.185 inch	0.185 inch	0.185 inch	0.185 inch	0.185 inch	0.185 inch
body length	2.087 inch	1.213 inch	2.728 inch	2.087 inch	2.728 inch	2.634 inch	1.213 inch	1.539 inch	1.539 inch
Body/casing type	RECEPTACLE	PLUG	RECEPTACLE	PLUG	PLUG	RECEPTACLE	RECEPTACLE	RECEPTACLE	PLUG
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contactor design	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN
Contact to complete cooperation	GOLD	AU	GOLD	AU	AU	NOT SPECIFIED	GOLD	GOLD	NOT SPECIFIED
Contact point gender	MALE	FEMALE	MALE	FEMALE	FEMALE	MALE	MALE	MALE	FEMALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	NOT SPECIFIED	COPPER ALLOY	COPPER ALLOY	NOT SPECIFIED
Contact resistance	2.7 mΩ	2.7 mΩ	2.7 mΩ	2.7 mΩ	2.7 mΩ	2.7 mΩ	2.7 mΩ	2.7 mΩ	2.7 mΩ
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Dielectric withstand voltage	1750VAC V	1750VAC V	1750VAC V	1750VAC V	1750VAC V	1750VAC V	1750VAC V	1750VAC V	1750VAC V
empty shell	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
maximum insertion force	3.892 N	3.892 N	3.892 N	3.892 N	3.892 N	3.892 N	3.892 N	3.892 N	3.892 N
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	GLASS FILLED POLYAMIDE	POLYESTER	POLYESTER	POLYESTER	POLYESTER	GLASS FILLED POLYAMIDE	POLYESTER	GLASS FILLED POLYAMIDE	GLASS FILLED POLYAMIDE
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	CABLE AND PANEL	BOARD	BOARD	BOARD	BOARD	CABLE AND PANEL	BOARD	CABLE AND PANEL	CABLE AND PANEL
Number of rows loaded	2	2	2	2	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Rated current (signal)	5 A	5 A	5 A	5 A	5 A	5 A	5 A	5 A	5 A
Guideline	UL	UL	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	CHROMATE	CHROMATE	CHROMATE	CHROMATE	CHROMATE	CHROMATE	CHROMATE	CHROMATE	CHROMATE
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL
Housing size	3/B	1/E	4/C	3/B	4/C	5/D	1/E	2/A	2/A
Termination type	SOLDER	WIRE WRAP	WIRE WRAP	WIRE WRAP	WIRE WRAP	SOLDER	WIRE WRAP	SOLDER	SOLDER
Total number of contacts	25	9	37	25	37	50	9	15	15
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Maximum wire diameter	20 AWG	20 AWG	20 AWG	20 AWG	20 AWG	20 AWG	20 AWG	20 AWG	20 AWG
Minimum wire diameter	20 AWG	20 AWG	20 AWG	20 AWG	20 AWG	20 AWG	20 AWG	20 AWG	20 AWG
Is it Rohs certified?	incompatible	conform to	incompatible	-	-	-	conform to	incompatible	-
ECCN code	EAR99	-	-	EAR99	EAR99	EAR99	-	EAR99	EAR99
Base Number Matches	1	1	1	1	1	1	1	-	-
