CEE2X56PF-102FELF datasheet, PDF

CEE2X56PF-102FELF: DescriptionCard Edge Connector, 112 Contact(s), 2 Row(s), Female, Straight, Press Fit Terminal, LEAD FREE; CategoryThe connector The connector; File Size617KB，10 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

CEE2X56PF-102FELF Overview

Card Edge Connector, 112 Contact(s), 2 Row(s), Female, Straight, Press Fit Terminal, LEAD FREE

Parameter Name	Attribute value
package instruction	LEAD FREE
Reach Compliance Code	unknown
Connector type	CARD EDGE CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
Filter function	YES
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	CEE2X56PF
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	112
UL Flammability Code	94V-0
Base Number Matches	1

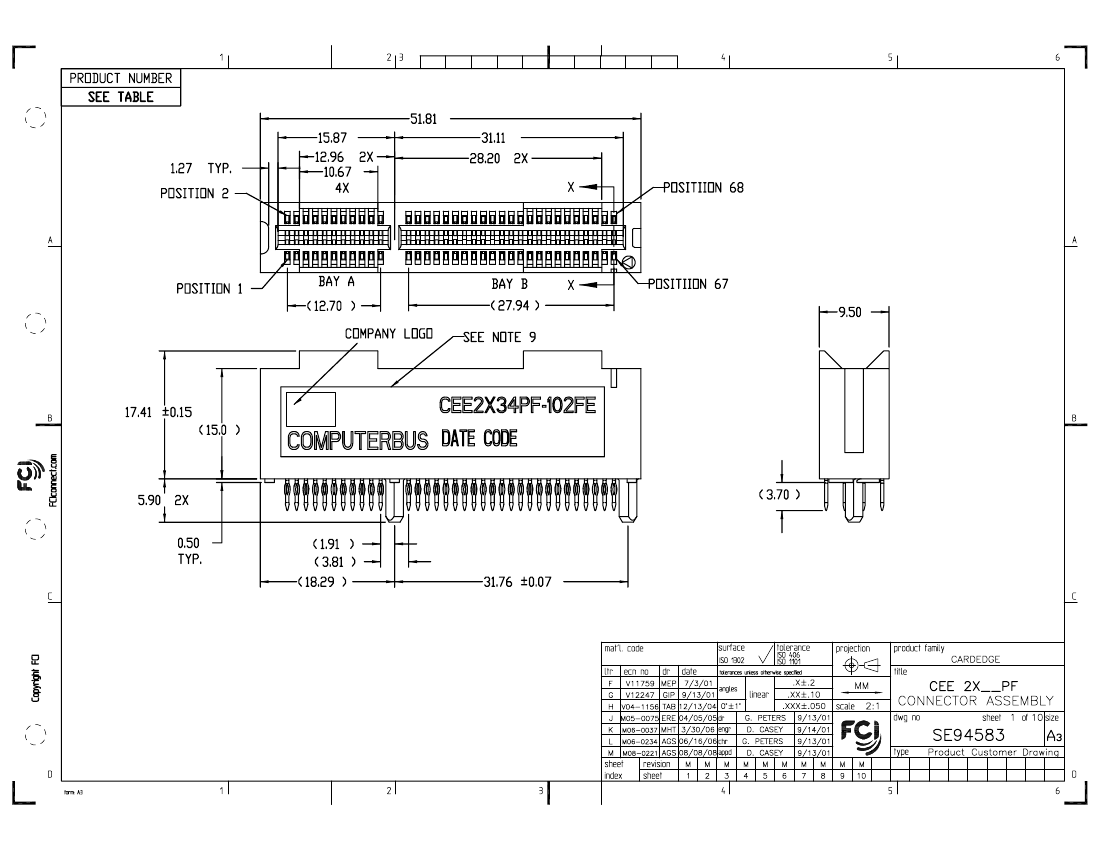

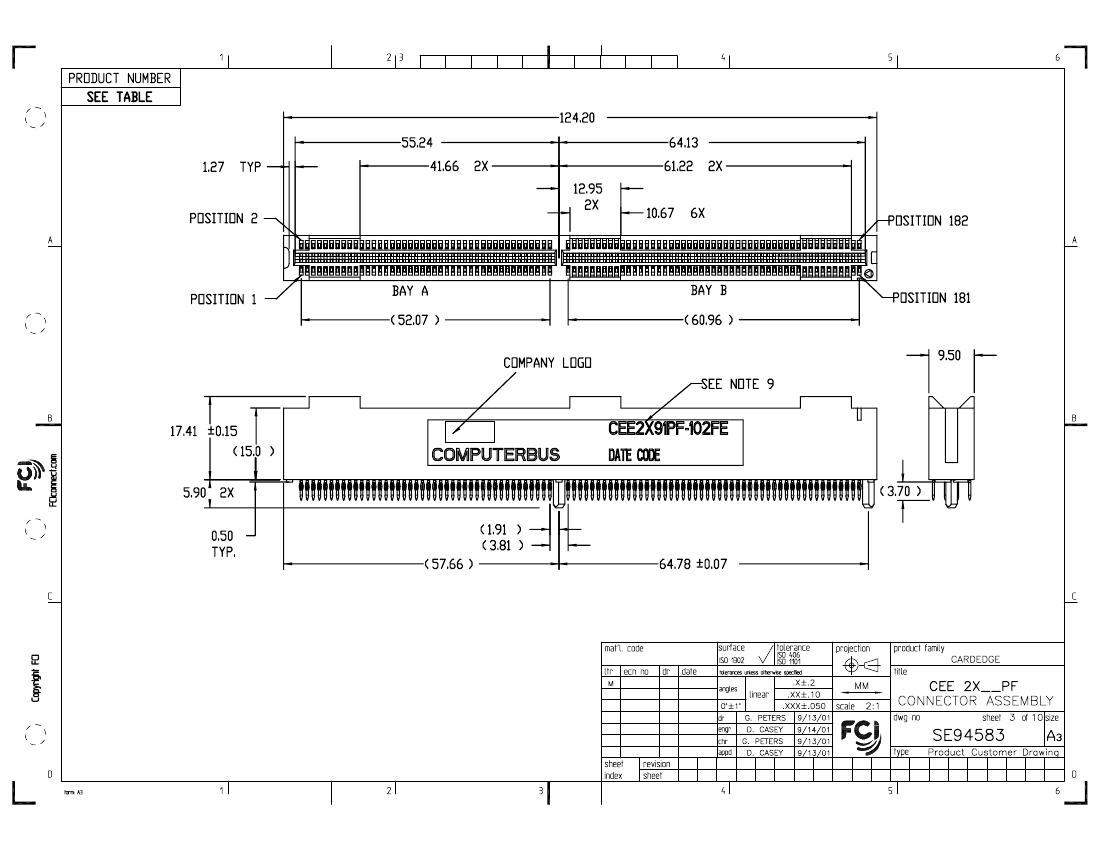

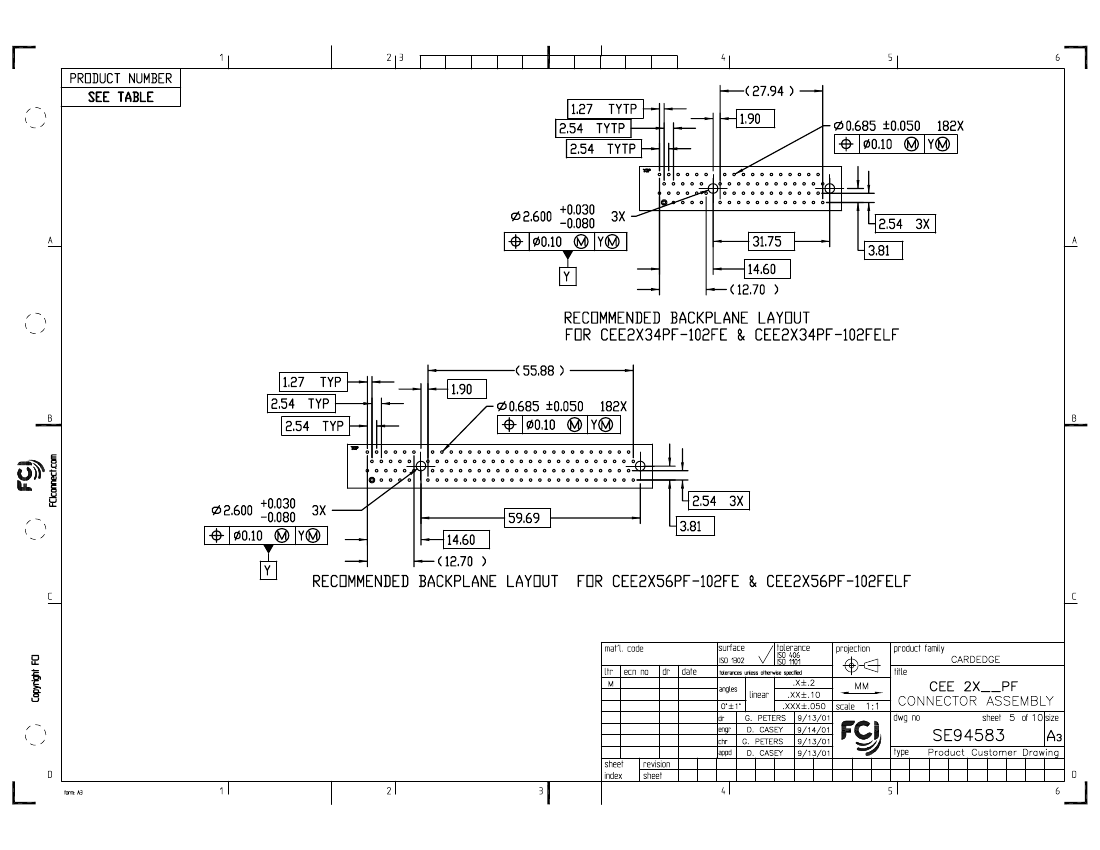

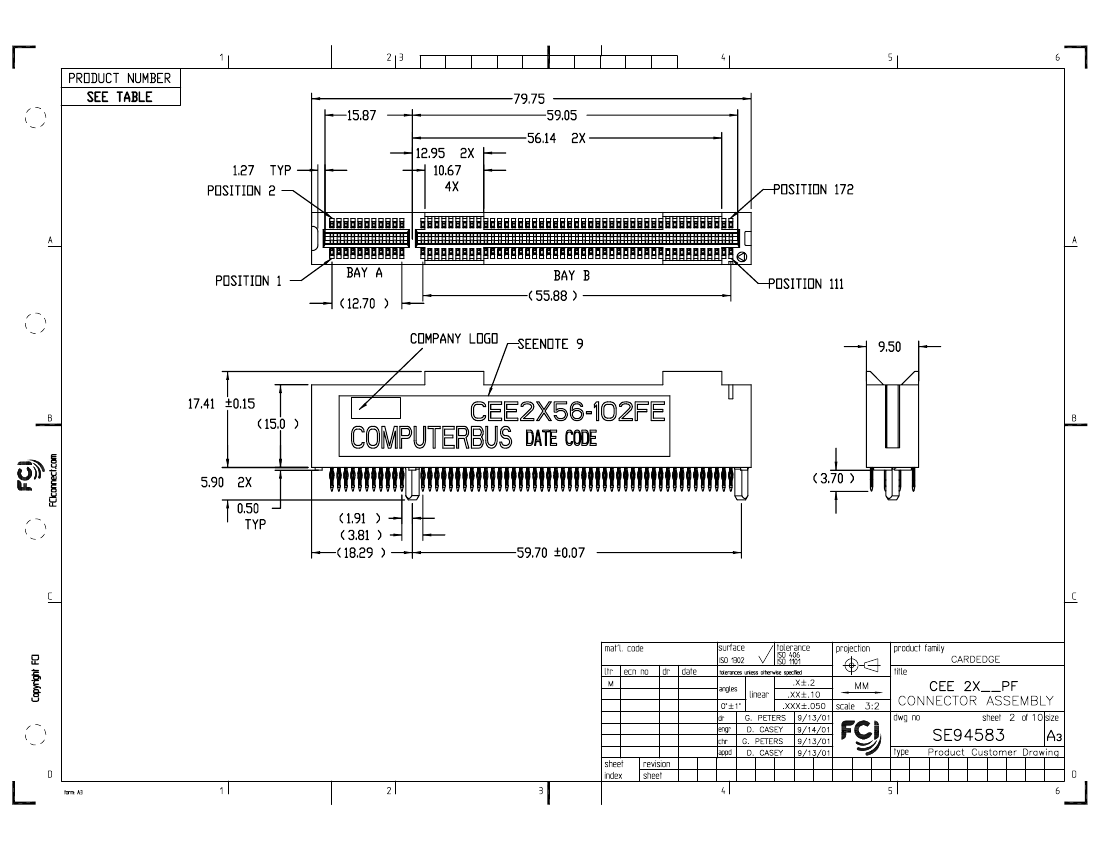

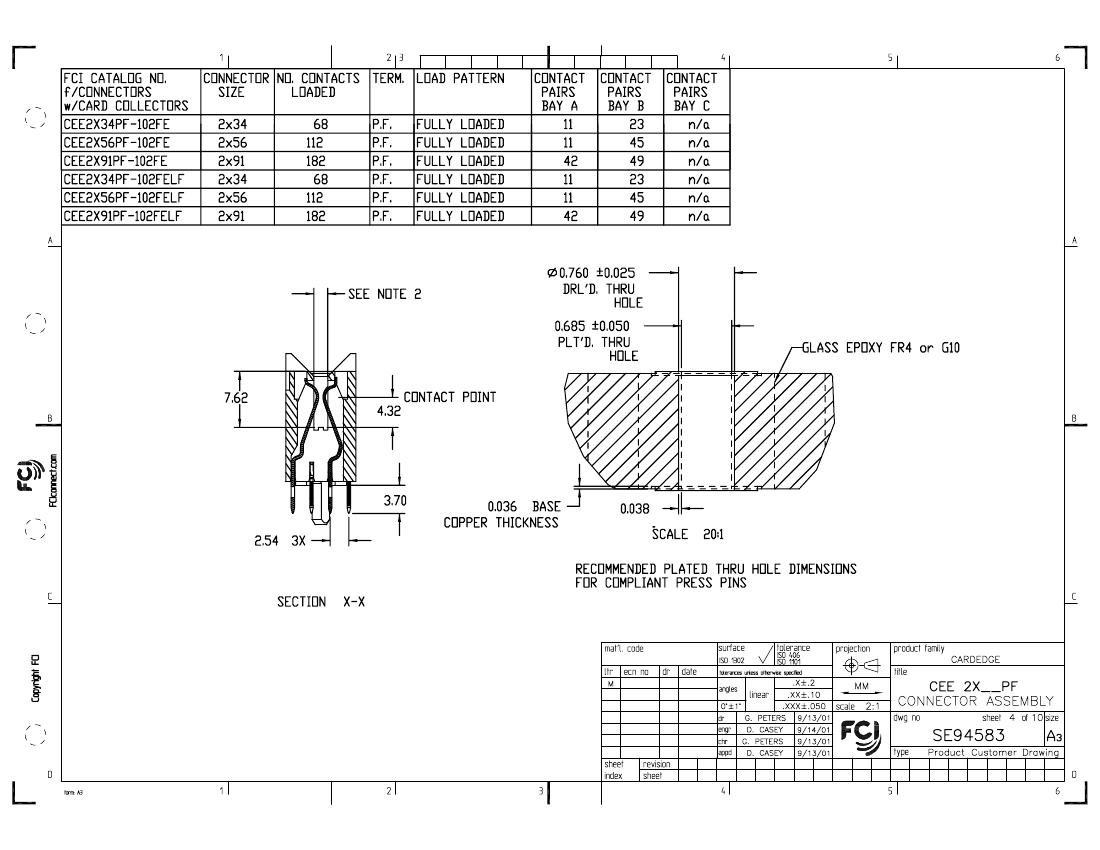

PDM: Rev:M

STATUS:

Released

Printed: Oct 05, 2009

.

	CEE2X56PF-102FELF	CEE2X56PF-102FE	CEE2X91PF-102FELF
Description	Card Edge Connector, 112 Contact(s), 2 Row(s), Female, Straight, Press Fit Terminal, LEAD FREE	Card Edge Connector, 112 Contact(s), 2 Row(s), Female, Straight, Press Fit Terminal	Card Edge Connector, 182 Contact(s), 2 Row(s), Female, Straight, Press Fit Terminal, LEAD FREE
Reach Compliance Code	unknown	unknown	unknown
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO
Filter function	YES	YES	YES
IEC compliance	NO	NO	NO
MIL compliance	NO	NO	NO
Manufacturer's serial number	CEE2X56PF	CEE2X56PF	CEE2X91PF
Mixed contacts	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	112	112	182
UL Flammability Code	94V-0	94V-0	94V-0
package instruction	LEAD FREE	-	LEAD FREE
Base Number Matches	1	1	-
