AZ986-1A-6DC1R1 Overview

40 AMP 280-ISO AUTOMOTIVE RELAY

Preview

Download Datasheet

View All

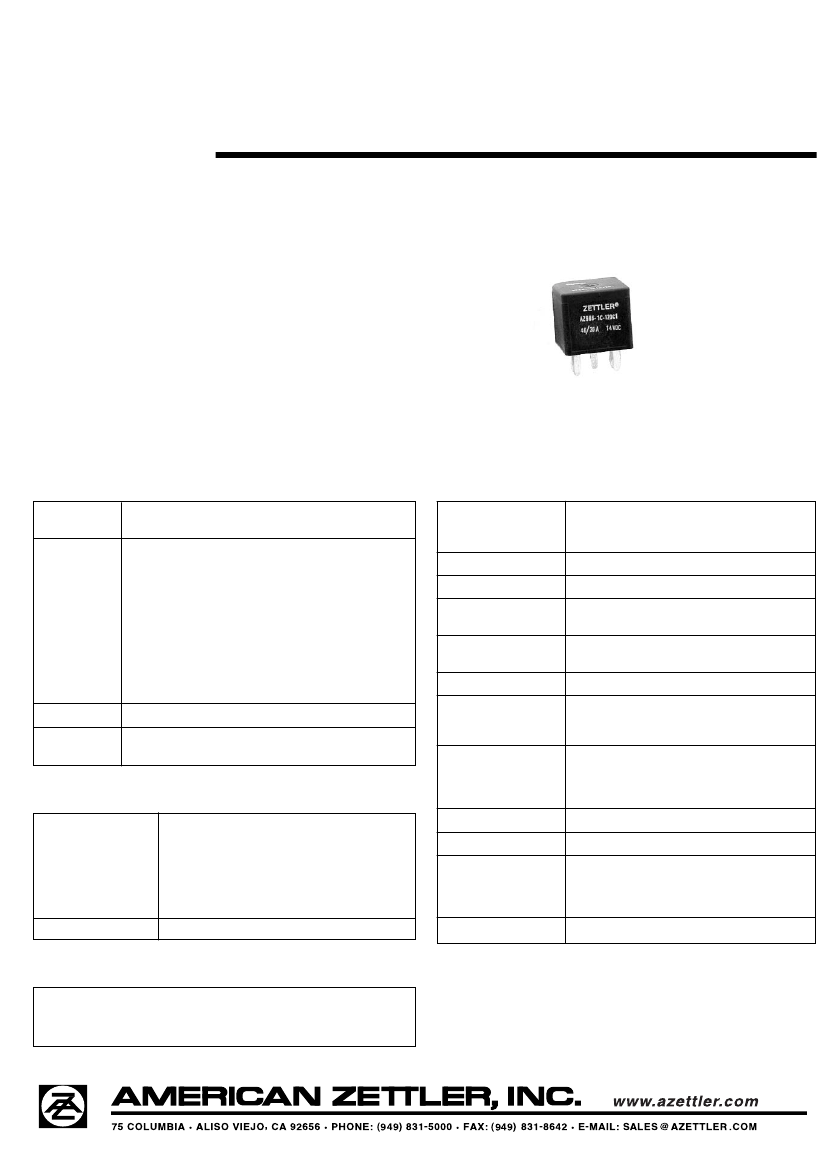

AZ986

40 AMP 280-ISO

AUTOMOTIVE

RELAY

FEATURES

•

40 Amp contact rating

Coils to 24VDC

High operating temperature (125°C)

SPST (1 Form A), SPDT (1 Form C)

Available with shrouded weatherproof cover

Coil suppression available

ISO/TS 16949, ISO9001, ISO 14000

Tested in accordance with SAE J2544

GENERAL DATA

SPST (1 Form A)

SPDT (1 Form C)

Resistive load:

Max. switched power: 560 W (SPST)

560 W (N.O.)

420 W (N.C.)

Max. switched current: 40 A (SPST)

40 A (N.O.)

30 A (N.C.)

Max. switched voltage: 100 VDC

Note: If switching voltage is greater than 30 VDC, special

precautions must be taken. Please contact the factory.

CONTACTS

Arrangement

Ratings

Life Expectancy

Mechanical

Electrical

Operate Time (max.)

Release Time (max.)

Minimum operations

1 x 10

at 40 A 14 VDC Res.

7 ms at nominal coil voltage

4 ms at nominal coil voltage

Dielectric Strength

500 Vrms coil to contact

(at sea level for 1 min.)

500 Vrms contact to contact

Insulation Resistance

Dropout

Ambient Temperature

Operating

Storage

Vibration

600 megohms min. at 500 VDC, 20°C

50% RH

Greater than 10% of nominal coil voltage

-55°C (-67°F) to 125°C (257°F)

-55°C (-67°F) to 155°C (311°F)

1.27mm DA 10-40 Hz

5 g 40-70 Hz

0.5mm DA 70-100 Hz

10 g 100-500 Hz

200 m/s

P.B.T. polyester

Tinned copper alloy

0.110 Quick Connect

Note: Allow suitable slack on leads when wiring, and do

not subject the terminals to excessive force.

Material

Resistance

Silver tin oxide

< 100 milliohms initially

(6 V, 1 A voltage drop method)

COIL

Power

At Pickup Voltage

(typical)

Max. Continuous

Dissipation

Temperature Rise

Temperature

0.58 W

3.7 W at 20°C (68°F)

52°C (94°F) at nominal coil voltage

Max. 180°C (356°F)

Weight

Shock

Enclosure

Terminals

22 grams (37 grams shrouded version)

NOTES

1. All values at 20°C (68°F).

2. Relay may pull in with less than “Must Operate” value.

3. Specifications subject to change without notice.

1/17/07W
