ES14973-R1: DescriptionCard Edge Connector, 98 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle,; CategoryThe connector The connector; File Size255KB，1 Pages; ManufacturerFOXCONN; Websitehttp://www.fit-foxconn.com/

Download Datasheet Parametric View All

ES14973-R1 Overview

Card Edge Connector, 98 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle,

ES14973-R1 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	REVERSE TYPE
body width	0.37 inch
subject depth	0.865 inch
body length	5.46 inch
Body/casing type	RECEPTACLE
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	GOLD (30)
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	15 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	1.668 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	ES
Plug contact pitch	0.1 inch
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.08 mm
Plating thickness	30u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.125 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	98
UL Flammability Code	94V-0
Evacuation force-minimum value	.139 N
Base Number Matches	1

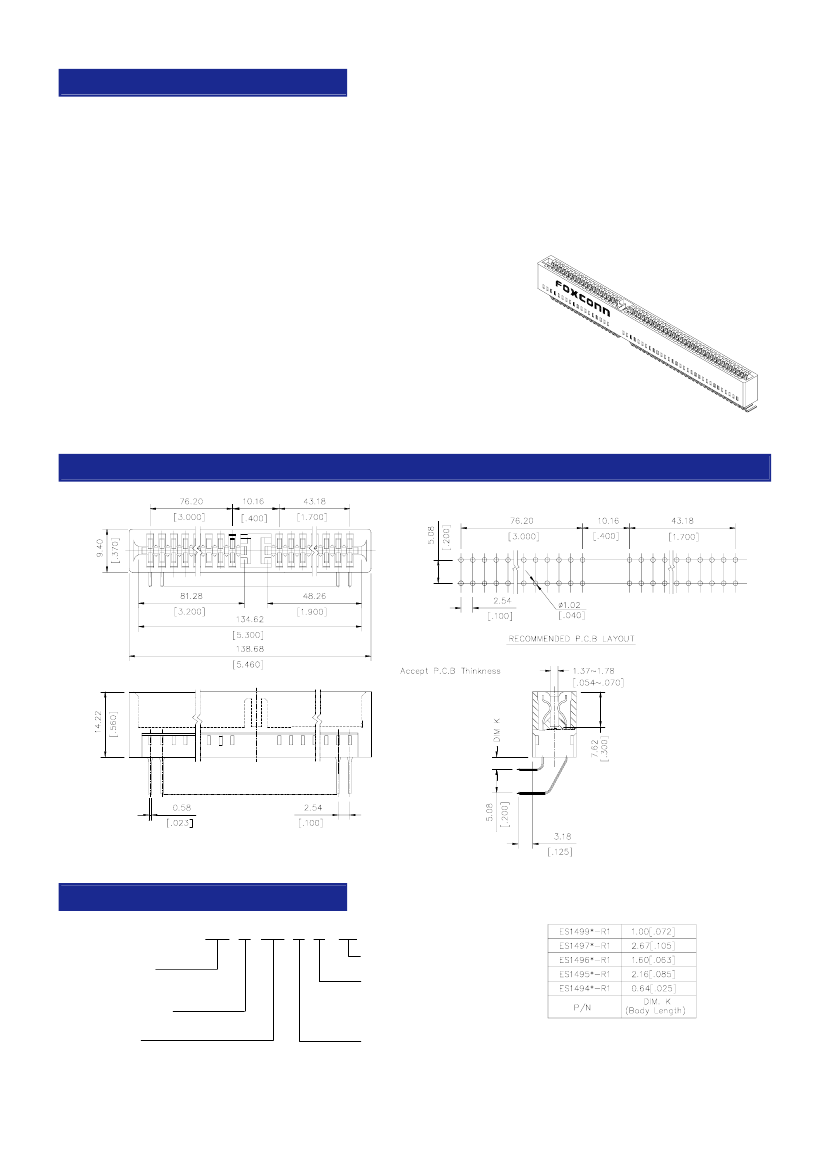

ES14973-R1 Preview

Download Datasheet

View All

SPECIFICATIONS

ISA Connector

ES Series

R/A Type, Reverse Type

2.54 mm [.100”] Pitch

98 Pos.

Mechanical

Contact Retention Force:

1.80kgf min.

Mating Force:

340gf max. per Contact Pair

Unmating Force:

28gf min. per Contact Pair

Durability:

500 Cycles

Electrical

Current Rating:

3A max.

Current Voltage:

250V

Contact Resistance:

15m

Ω

max. initial

Dielectric Withstanding Voltage:

1000V

Insulation Resistance:

5000M

Ω

min.

Physical

Housing:

Thermoplastic, UL 94V-0 rated, in Black Color

Contact:

Copper alloy

Plating:

See “ORDERING INFORMATION”

Operating Temperature:

-55

℃

to +85

℃

DRAWING

ORDERING

I N FO R M ATI O N

Extension Code

PRODUCT NO.: ES 1 4 9 * * - R1

Series Prefix

2.54 [.100] Pitch

Edge Card Conn.

R1=Reverse Type

1=Gold Flash

2=20u" Gold

3=30u" Gold

6=10u" Gold

7=15u" Gold

4=0.64 [.025]

5=2.16 [.085]

6=1.60 [.063]

7=2.67 [.105]

9=1.00 [.072]

Contact Area Plating

Termination Type

1=Right Angle Type

No.of Pos.

49=98 Pos.

Body Length

All specification & dimensions are subject to change, please call your nearest Foxconn sales representative for update information.
