TTLDM-100M datasheet, PDF - EEWORLD Datasheet

TTLDM-100M: DescriptionActive Delay Line, 1-Func, 5-Tap, True Output, TTL, PDIP8, 0.325 INCH HEIGHT, PLASTIC, MODULE, DIP-14/8; Categorylogic logic; File Size124KB，2 Pages; ManufacturerEngineered Components Co.

Download Datasheet Parametric View All

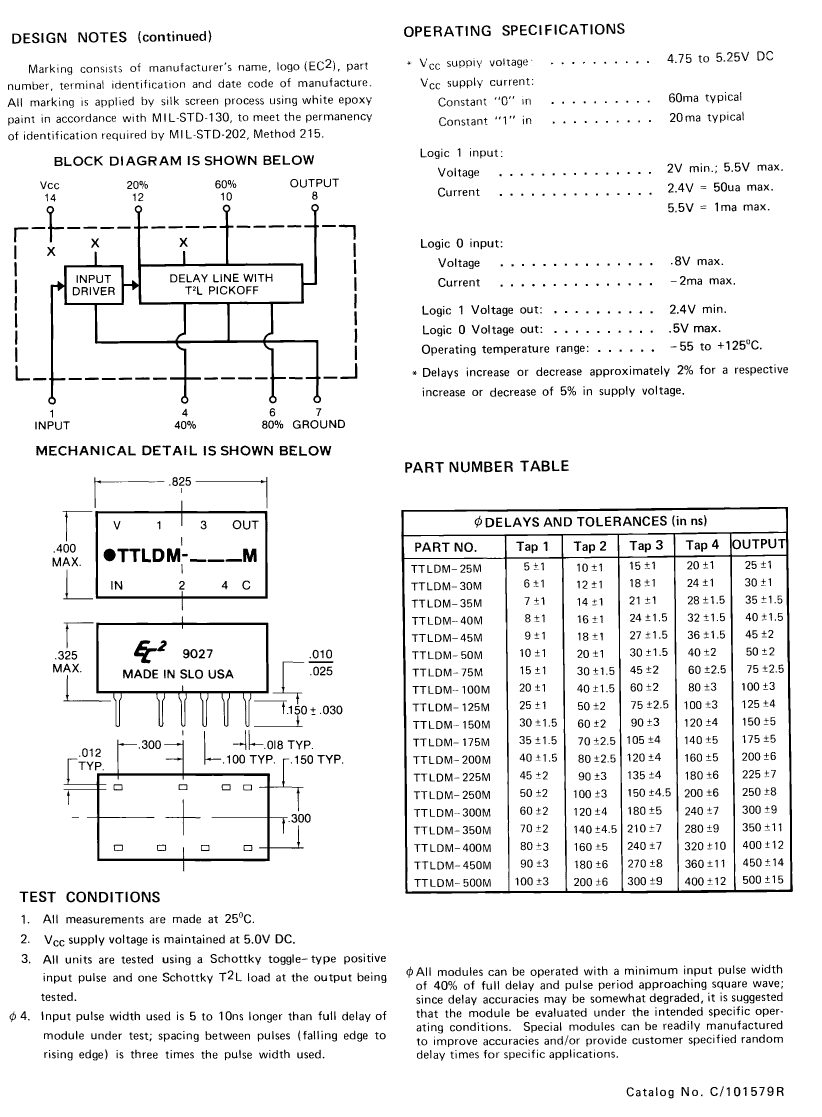

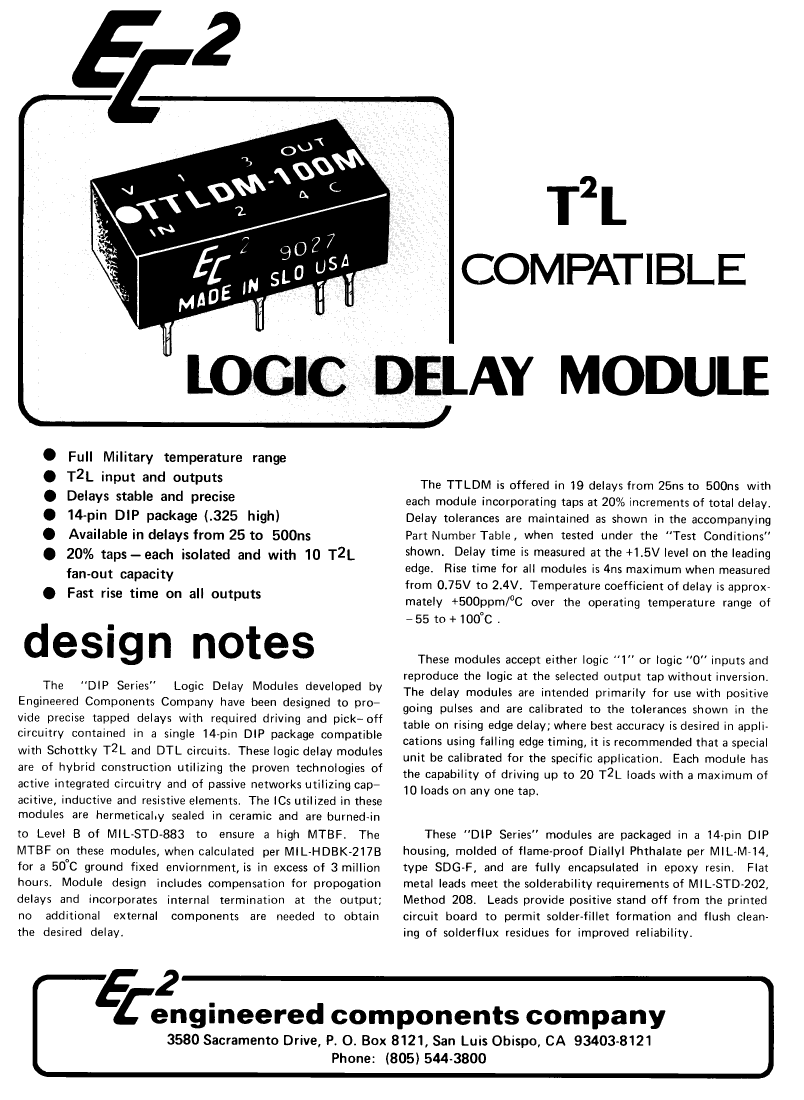

TTLDM-100M Overview

Active Delay Line, 1-Func, 5-Tap, True Output, TTL, PDIP8, 0.325 INCH HEIGHT, PLASTIC, MODULE, DIP-14/8

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Parts packaging code	DIP
package instruction	DIP, DIP14,.3
Contacts	14/8
Reach Compliance Code	unknown
Other features	BURNED-IN TO LEVEL B OF MIL-STD-883; INTERNAL TERMINATION; MAX RISE TIME CAPTURED
series	TTL
JESD-30 code	R-PDIP-T8
JESD-609 code	e0
length	20.955 mm
Logic integrated circuit type	ACTIVE DELAY LINE
Number of functions	1
Number of taps/steps	5
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
programmable delay line	NO
Prop。Delay @ Nom-Sup	100 ns
Certification status	Not Qualified
Maximum seat height	8.255 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Total delay nominal (td)	100 ns
width	7.62 mm
Base Number Matches	1
