DZ11393-NU206-AF datasheet, PDF

Datasheet> All Categories > The connector> The connector> DZ11393-NU206-AF

DZ11393-NU206-AF: DescriptionD Subminiature Connector, 25 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug, LEAD FREE; CategoryThe connector The connector; File Size83KB，1 Pages; ManufacturerFOXCONN; Websitehttp://www.fit-foxconn.com/

Download Datasheet Parametric View All

DZ11393-NU206-AF Overview

D Subminiature Connector, 25 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug, LEAD FREE

DZ11393-NU206-AF Parametric

Parameter Name	Attribute value
package instruction	LEAD FREE
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.354 inch
body length	2.088 inch
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	GOLD (30)
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	STAGGERED
Contact resistance	30 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	500VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	3.336 N
Insulation resistance	5000000000 Ω
Insulator color	BURGUNDY
insulator material	THERMOPLASTIC
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	DZ
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Mixed contacts	NO
Installation option 1	#4-40
Installation option 2	THREADED
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	1
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Shell material	POLYETHYLENE
Housing size	3/B
Terminal length	0.075 inch
Terminal pitch	1.3716 mm
Termination type	SOLDER
Total number of contacts	25
UL Flammability Code	94V-0
Evacuation force-minimum value	.1946 N
Base Number Matches	1

DZ11393-NU206-AF Preview

Download Datasheet

View All

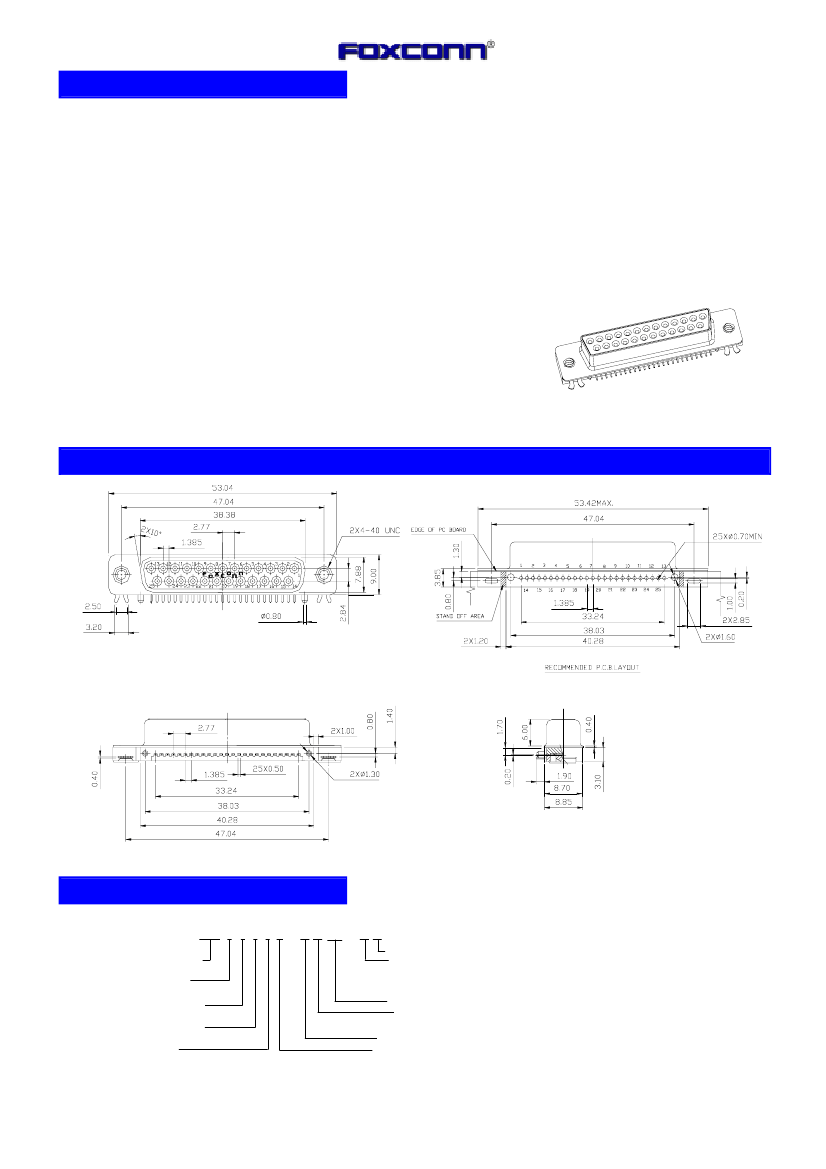

SPECIFICATIONS

D-SUB Connector

DZ Seri es

Right Angle, T/H, Female

Type

15 Pos.

Center Height 4. 27 mm

Recommended PCB’s

Thickness 1.0 or 1. 2 mm

Mechanical

Contact Engagement Force :

0.34 Kgf/ Pin max.

Contact Separation Force :

0.021 Kgf/ Pin min.

Durability :

500 Cycles

Electrical

Voltage Rating:

240V

Current Rating:

Contact Resistance:

30 m

Ω

max.

Dielectric Withstanding Voltage:

500V AC/1 min.

Insulation Resistance:

5000M

Ω

Physical

Housing:

Thermoplastic, UL 94V-0 rated in Black/ PC99 Color

Contact:

Copper alloy

Plating:

See “ORDERING INFORMATION”

Solder Pad:

Copper alloy

Operating Temperature:

-55

℃

to +105

℃

DRAWING

ORDERING I NF OR MATI ON

PRODUT NO.: D Z 1 1 3 9 * - N * 206 - * F

D-SUB DIP Series

Terminator Type

1= Right Angle

Lead Free Code

Package Code

4 = Soft Tray

7 = Tape & Reel

A = Tube

Contact Design Type

1 = Female

Extension Code

Housing Color

B = Black

U = Burgungy

NO. Of Contact POS.

3 = 25 POS.

Body Length

R/A Normal Type

Contact Area Plating

1=Gold Flash

2=20u" Gold Plating

3=30u" Gold Plating

6=10u" Gold Plating

7=15u" Gold Plating

All specification & dimensions are subject to change, please call your nearest Foxconn sales representative for update information.
