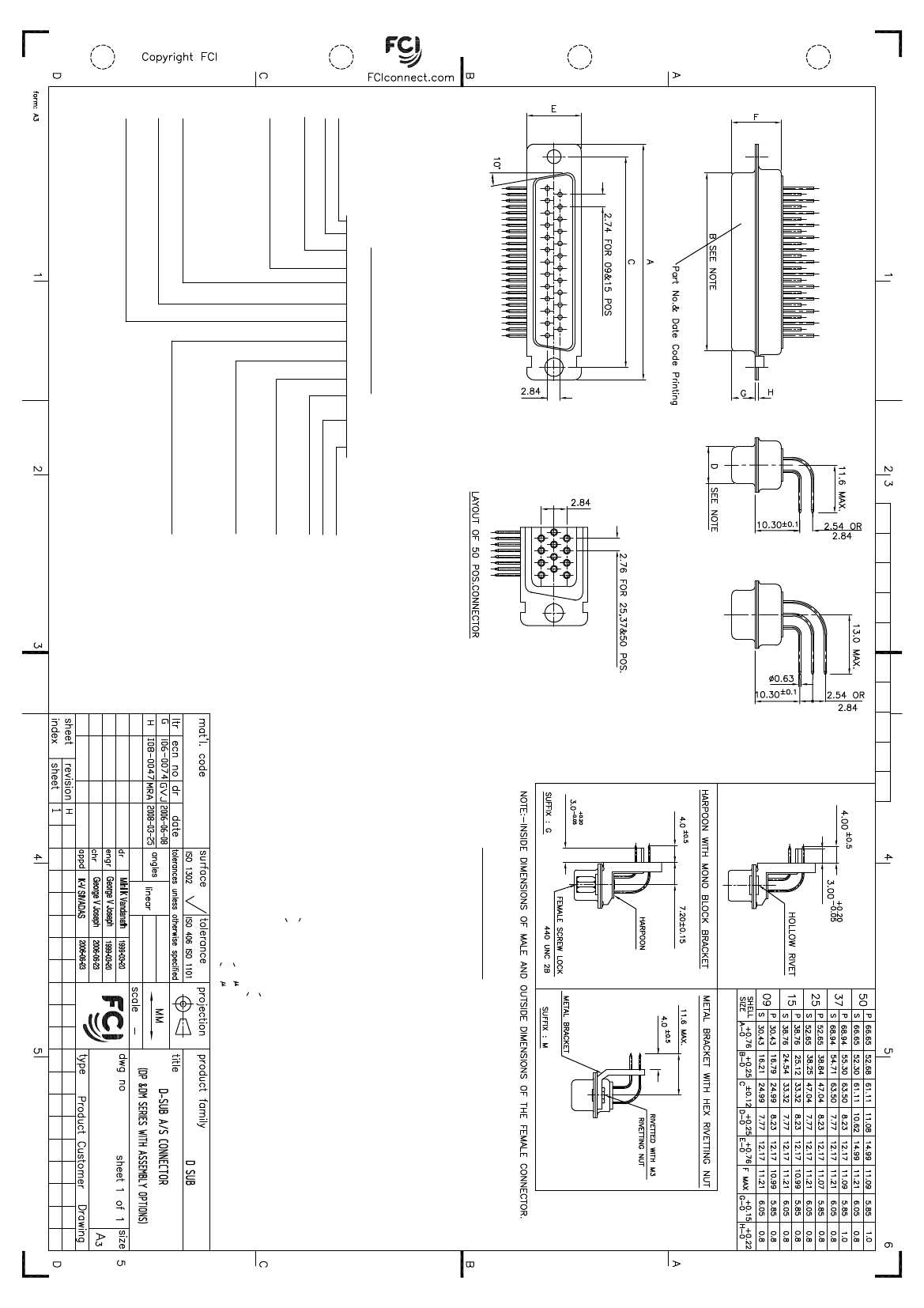

TECHNICAL SPECIFICATIONS
"This LF product meets European Union Directives and other country
regulations as described in GS-22-008"
The housing will withstand exposure to 260°C peak temperature for 3.5 seconds
in a wave solder application with a 1.6mm minimum thick circuit board.
Packaging as per GS-14-920
SHELLS
INSULATOR MATERIAL
:
: TIN/CADMIUM/ZINC PLATED STEEL
SELF EXTINGUISHING THERMOPLASTIC-
TO UL CLASS 94 V0
THE HOUSING WILL WITHSTAND EXPOSURE TO 260-265°C
IF WE USE PROTECTIVE ADHESIVE (type Kapton or Teflon)
OR PROTECTIVE METALLIC DEVICE
ORDERING INFORMATION
SERIES
SHELL SIZE
E,A,B,C,D
CONTACTS DIA ON ACTIVE AREA
:
Ø1 MM.
D B P V 25 P 5 64 C T X XXX
LF
LEAD FREE
SPECIAL CODES
DIMPLES
X-ON MALE CONNECTORS ONLY
N- OBLIGATORY FOR DM
CONTACTS MATERIAL
CONTACT PLATING
OPERATING TEMPERATURE
OPERATING CURRENT
CONTACT RESISTANCE
INSULATION RESISTANCE
:
:
:
:
:
:
COPPER ALLOY
GOLD OVER NICKEL
-55°C +125°C
CHARACTERISATION
M-DM SERIES
P-DP SERIES
7.5 A PER CONTACT
<7.3 m
Ω
OPTIONS-1
BLANK-STANDARD
F-FLOAT MOUNTING
V-FEM. SCREW LOCK HEX. (UNC)
W-RIVETED FEM. SCREW LOCK ROUND UNC
N-THREADED FEM. SCREW LOCK M3
L-CLINCH NUT (M3)
O-CLINCH NUT (UNC)
S-SPACER RIVETTED TO SHELL
SHELL PLATING
BLANK-ZINC FOR DP/CADMIUM FOR DM
T-STD. TIN over Cu or Zinc Cr 3
>5000 M
Ω
MAXIMUM VOLTAGE
MECHANICAL ENDURANCE
:
:
:
1000 V.r.m.s
500 MATINGS MIN.FOR > 0.75
µ
GOLD PLATING
200 MATINGS MIN.FOR < 0.40
µ
GOLD PLATING
OPTIONS-2
BLANK-STANDARD
H-SHIELDING TERMINATION FINGERS
G-HARPOON
M-METAL BRACKET
C-WITHOUT BRACKET
DAMP HEAT
:
:
56 DAYS FOR > 0.75 GOLD PLATING
21 DAYS FOR < 0.40 GOLD PLATING
NO.OF CONTACTS
09,15,25,37,50
CONTACT PLATING
BLANK- 0.2
µ
Au
64 - Au FLASH
65 - 0.75
µ
Au
67 - 0.4
µ
Au
32 - 1.27
µ
Au
(APPLICABLE FOR DM SERIES ONLY)
CONTACTS
P - PIN
S - SOCKET
TERMINATION TYPE
5-ANGLED SPILL 2.54mm BETWEEN ROWS
8-ANGLED SPILL 2.84mm BETWEEN ROWS
C-DSUB-0069
6
PDM: Rev:H
STATUS:
Released
Printed: Apr 03, 2008
.
