88-569722-5S

Description
MIL Series Connector, 5 Contact(s), Female, Solder Terminal, Receptacle
CategoryThe connector    The connector
File Size27KB,1 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric View All

88-569722-5S Overview

MIL Series Connector, 5 Contact(s), Female, Solder Terminal, Receptacle

88-569722-5S Parametric

Parameter NameAttribute value
Reach Compliance Codeunknown
Other featuresSTANDARD: MIL-DTL-38999, EMI SHIELDED
Back shell typeSOLID
Body/casing typeRECEPTACLE
Connector typeMIL SERIES CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact completed and terminatedGOLD (500) OVER NICKEL
Contact point genderFEMALE
Coupling typeBAYONET
DIN complianceNO
empty shellNO
Environmental characteristicsENVIRONMENT RESISTANT
Filter functionNO
IEC complianceNO
JESD-609 codee4
MIL complianceYES
Manufacturer's serial number88-5697
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation typeBOARD AND PANEL
OptionsGENERAL PURPOSE
Shell surfaceOLIVE DRAB CADMIUM PLATED
Housing size11
Termination typeSOLDER
Total number of contacts5
Base Number Matches1

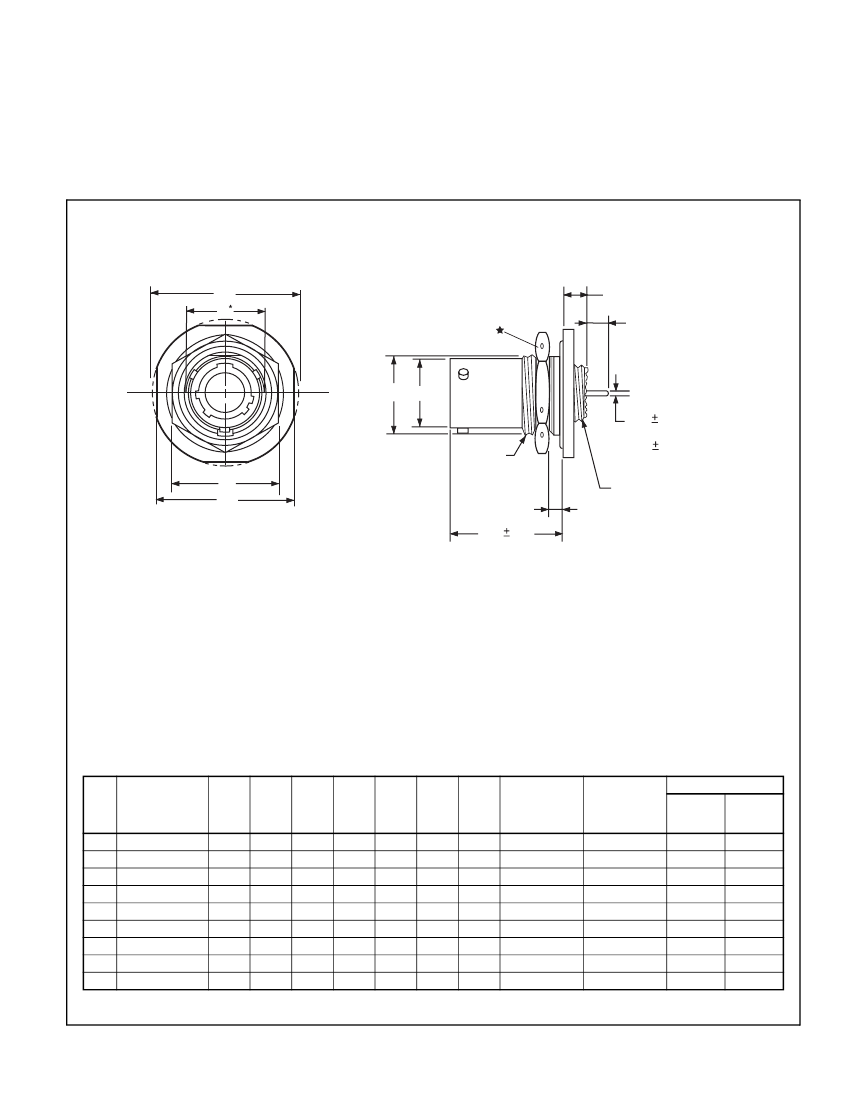

MIL-DTL-38999 Series I Type Connectors
with PCB contacts
LJT07R jam nut receptacle
C
T
.328 MAX.
Z
PCB TAIL STICKOUT
A*
N
.062 .001 DIA.
FOR SIZE 16 CONTACT
.019 .001 DIA.
FOR SIZE 20 & 22D
CONTACTS
V THREAD
.062 MIN.
.125 MAX PANEL THICKNESS
RR
THREAD
H
S
.915 .005
HOW TO ORDER
• Order by applicable 88/91 part number in table below.
88 prefix designates olive drab cadmium plated connector shell.
91 prefix designates electroless nickel plated connector shell.
• Add insert arrangement to end of number. Refer to insert availability chart on page 4 and
pin-out illustrations on pages 5-24. Last letter of part number designates rotation; P for
pins in normal position, S for sockets in normal position. See page 25 for alternate rota-
tion letter to use.
Example part number: 88-569721-35P designates shell size 9 with a 9-35 insert and pin
contacts in normal position.
• Z dimension is determined by contact type in the insert arrangement.
• Most common options are shown; other options are available.
*
.059 dia. min. 3 lockwire holes.
Formed lockwire hole design (6 holes) is optional.
“D” shaped mounting hole dimensions
Z
Shell
Size
9
11
13
15
17
19
21
23
25
Part Number
88/91-569721-XXX
722-XXX
723-XXX
724-XXX
725-XXX
726-XXX
727-XXX
728-XXX
729-XXX
A*
+.000
–.010
.669
.769
.955
1.084
1.208
1.333
1.459
1.580
1.709
C
Max.
1.199
1.386
1.511
1.636
1.761
1.949
2.073
2.199
2.323
H Hex
+.017
–.016
.875
1.000
1.188
1.312
1.438
1.562
1.688
1.812
2.000
L
Max.
.625
.625
.625
.625
.625
.656
.750
.750
.750
N
+.001
–.005
.572
.700
.850
.975
1.100
1.207
1.332
1.457
1.582
S
±.016
1.062
1.250
1.375
1.500
1.625
1.812
1.938
2.062
2.188
T*
+.010
–.000
.697
.822
1.007
1.134
1.259
1.384
1.507
1.634
1.759
V Thread
Class 2A
(Plated)
.4375-28 UNEF
.5625-24 UNEF
.6875-24 UNEF
.8125-20 UNEF
.9375-20 UNEF
1.0625-18 UNEF
1.1875-18 UNEF
1.3125-18 UNEF
1.4375-18 UNEF
RR Thread
Class 2A
(Plated)
Size
16 & 20
Contacts
Size 22D
Contacts
.6875-24 UNEF .229 – .175 .243 – .182
.8125-20 UNEF .229 – .175 .243 – .182
1.0000-20 UNEF .229 – .175
1.1250-18 UNEF .229 – .175
1.2500-18 UNEF .229 – .175
1.3750-18 UNEF .207 – .158
1.5000-18 UNEF .207 – .158
1.6250-18 UNEF .207 – .158
1.7500-18 UNS
.207 – .158
.243 – .182
.243 – .182
.243 – .182
.221 – .165
.221 – .165
.221 – .165
.221 – .165
All dimensions for reference only.
31
