AZ9721-1C-24DC1R2 datasheet, PDF

Datasheet> All Categories > Mechanical and electronic products> relay> AZ9721-1C-24DC1R2

AZ9721-1C-24DC1R2: Description40 AMP AUTOMOTIVE RELAY; CategoryMechanical and electronic products relay; File Size133KB，4 Pages; ManufacturerAZETTLER; Websitehttp://www.azettler.com/; Environmental Compliance

Download Datasheet Parametric View All

AZ9721-1C-24DC1R2 Overview

40 AMP AUTOMOTIVE RELAY

AZ9721-1C-24DC1R2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	AZETTLER
Reach Compliance Code	unknow
ECCN code	EAR99
body width	28 mm
Body length or diameter	32.2 mm
Coil operating voltage (DC)	17 V
Coil resistance	320 Ω
Maximum coil voltage (DC)	36 V
Nominal coil voltage	24 V
Coil/Input Power Type	DC
Contact resistance	50 mΩ
Contact/Output Power Type	DC
Dielectric strength between coil and contacts	750 Vrms
Dielectric strength between breaking contacts	750 Vrms
Electrical life	100000 Cycle(s)
End contact material	Silver Alloy
Input switching control type	Random
Insulation resistance	100000000 Ω
Number of terminals	5
operating hours	10 ms
Maximum operating temperature	70 °C
Minimum operating temperature	-55 °C
Relay style	1 FORM C
Relay function	SPDT
Relay type	POWER/SIGNAL RELAY
release time	10 ms
Terminal length	0.011 inch
Termination type	QUICK CONNECT
weight	40 g

Preview

Download Datasheet

View All

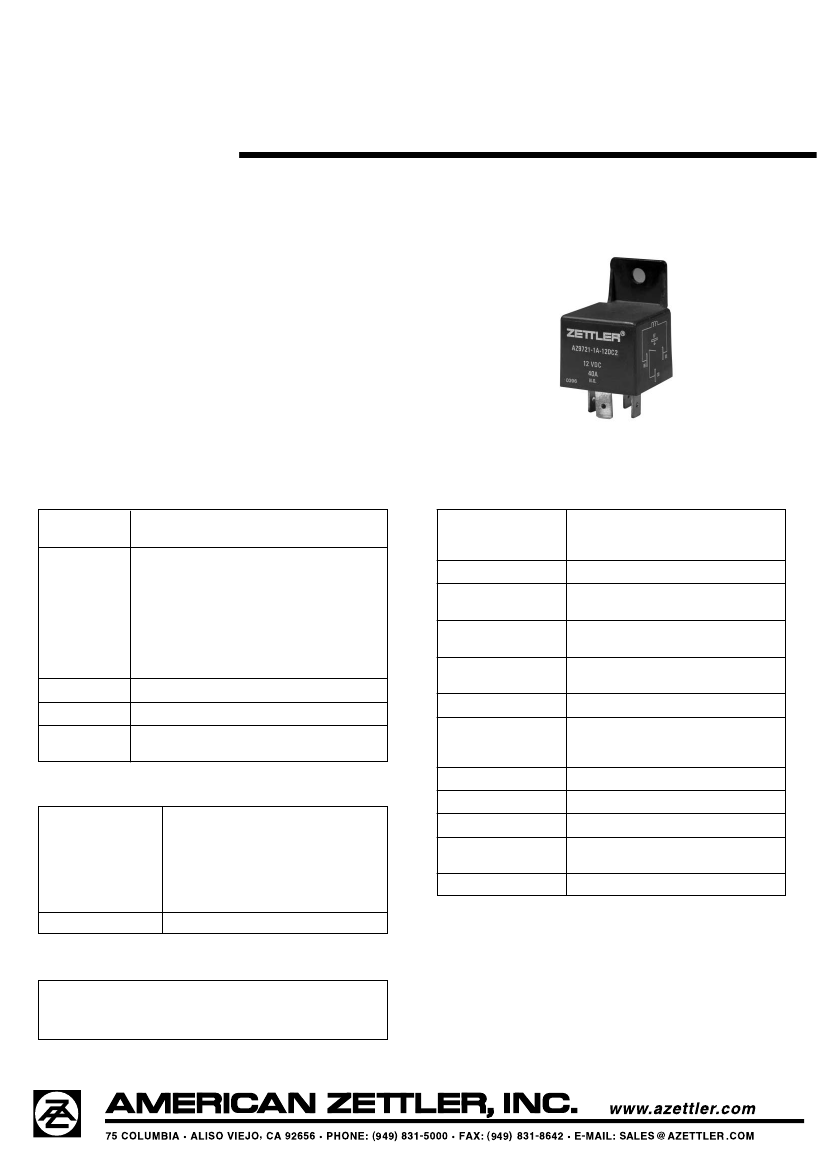

AZ9721

40 AMP

AUTOMOTIVE

RELAY

FEATURES

•

40 Amp contact rating

High momentary carry current (60A)

SPST (1 Form A), SPDT (1 Form C)

Quick connect terminals

Metal or plastic mounting bracket available

Resistor or diode parallel to coil available

CONTACTS

Arrangement

Ratings

SPST (1 Form A)

SPDT (1 Form C)

Resistive load:

Max. switched power: 480 W (SPST)

480 W (N.O.)

360 W (N.C.)

Max. switched current: 40 A (SPST)

40 A (N.O.)

30 A (N.C.)

Max. switched voltage: 75 VDC

Minimum Load

Material

Resistance

5 VDC, 0.1 A

Silver alloy

< 50 milliohms initially

(24 V, 1 A voltage drop method)

GENERAL DATA

Life Expectancy

Mechanical

Electrical

Operate Time (typical)

Release Time (typical)

Minimum operations

1 x 10

at rated load

10 ms at nominal coil voltage

(with no coil suppression)

Dielectric Strength

750 Vrms coil to contact

(at sea level for 1 min.)

750 Vrms contact to contact

Insulation Resistance

Dropout

Ambient Temperature

Operating

Storage

Vibration

100 megohms min. at 500 VDC, 20°C

50% RH

Greater than 10% of nominal coil voltage

-55°C (-67°F) to 70°C (158°F)

-55°C (-67°F) to 155°C (311°F)

0.062" DA at 20-200 Hz

20 g

P.B.T. polyester

Copper alloy

0.25 Quick Connect

40 grams

COIL

Power

At Pickup Voltage

(typical)

Max. Continuous

Dissipation

Temperature Rise

Temperature

0.76 W

Shock

Enclosure

Terminals

4.0 W at 20°C (68°F)

Weight

63°C (113°F) at nominal coil voltage

Max. 155°C (311°F)

NOTES

1. All values at 20°C (68°F).

2. Relay may pull in with less than “Must Operate” value.

3. Specifications subject to change without notice.

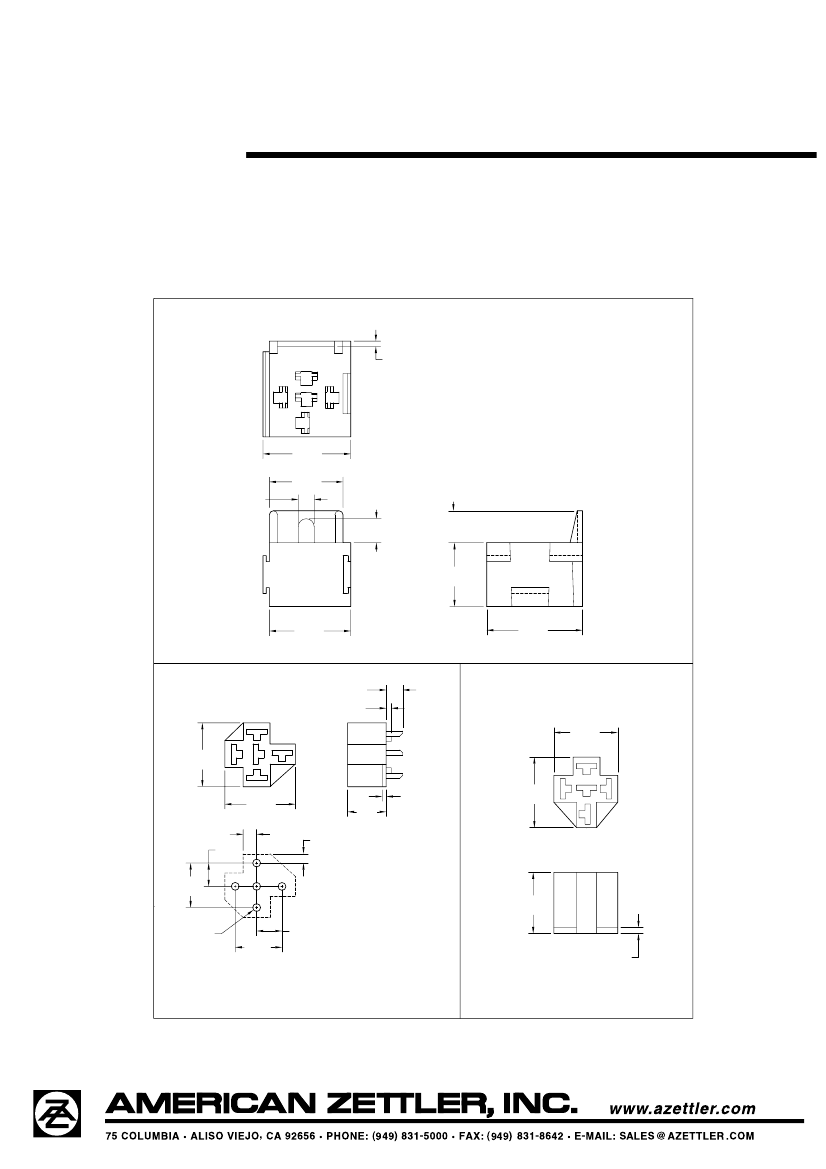

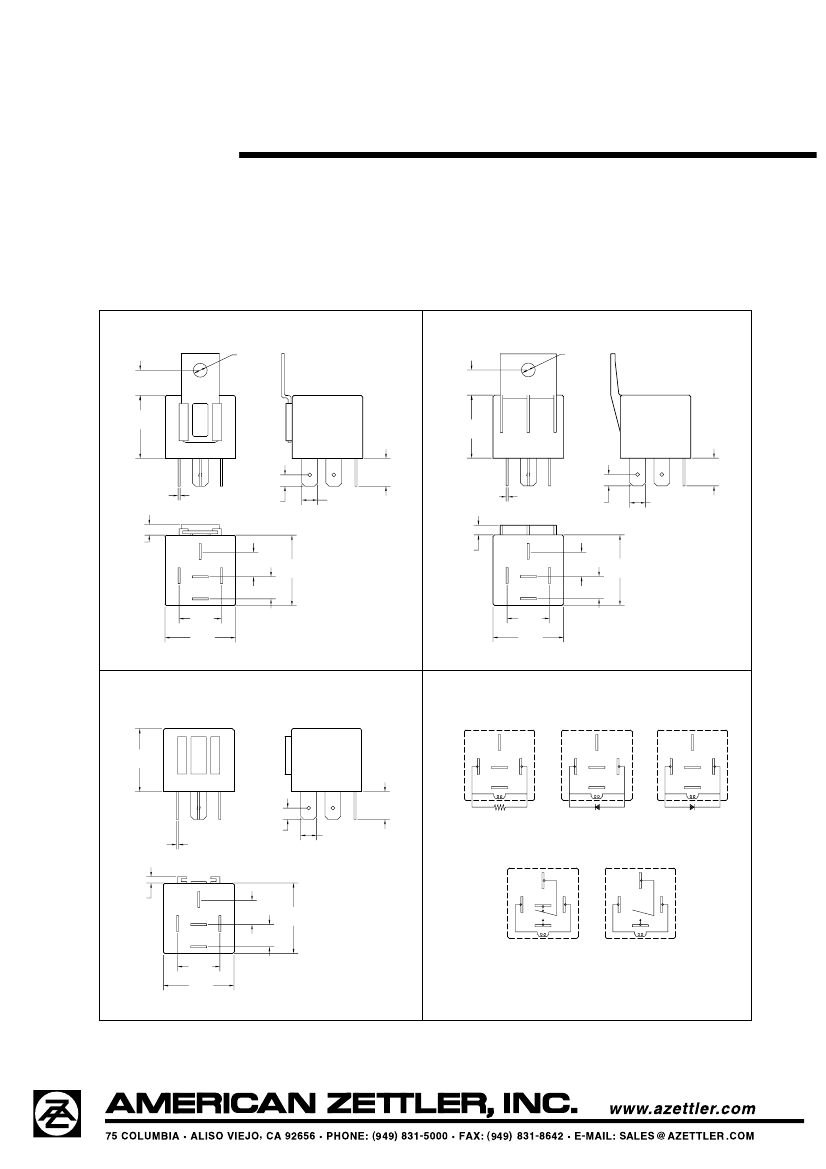

9/3/98W
