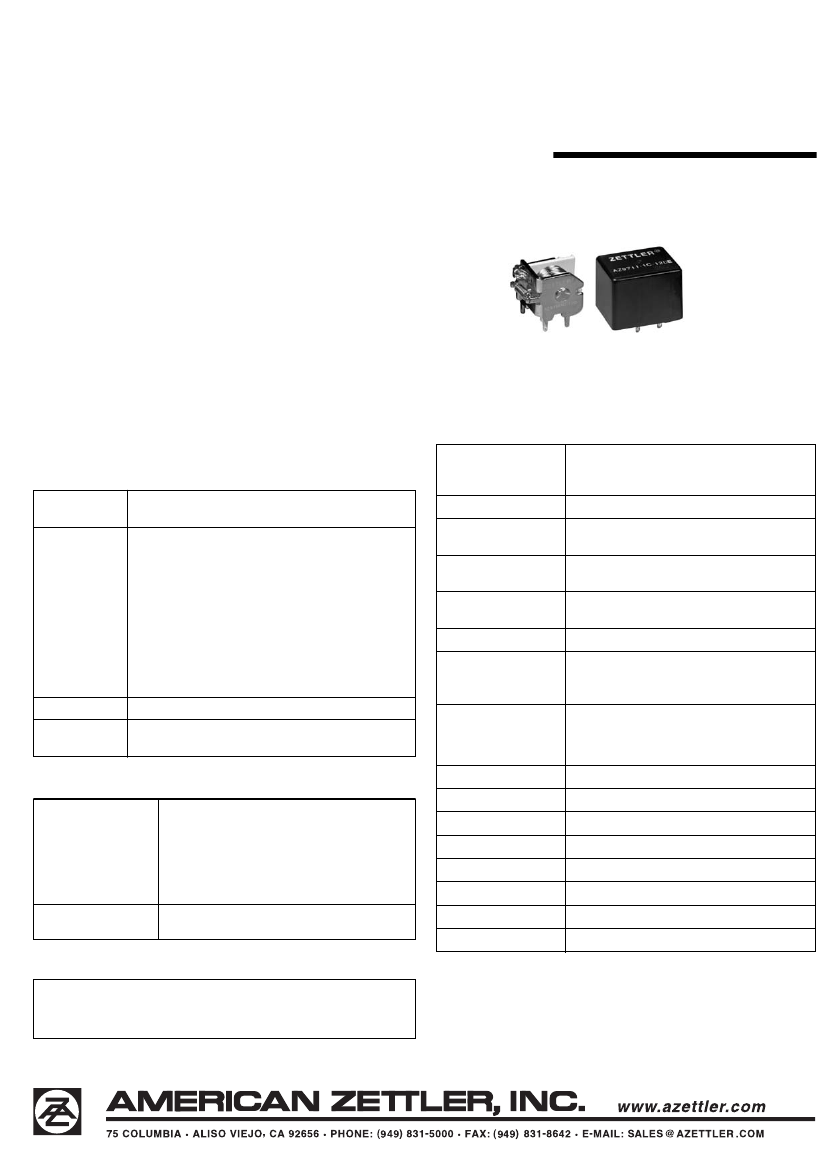

AZ9701E/AZ9711E
45 AMP AUTOMOTIVE RELAY
FEATURES
•
•
•
•
•
•
•
•
•
•
•
Up to 45 Amp switching capability in a compact size
Epoxy sealed versions available
Coils to 24 VDC
Small footprint
1 Form A and C contacts available
Vibration and shock resistant
ISO/TS 16949, ISO9001, ISO14000
Tested in accordance with SAE J2544
Cost effective
Designed for high in-rush applications
UL, CUR File E43203
GENERAL DATA
Life Expectancy
Mechanical
Electrical
Minimum operations
5 x 10
6
operations
1 x 10
5
40 A 14 VDC Res.
5 ms at nominal coil voltage
3 ms at nominal coil voltage
(with no coil suppression)
CONTACTS
Arrangement
Ratings
SPST (1 Form A)
SPDT (1 Form C)
Resistive load:
Max. switched power: Form A: 630 W
Form C: 630 W/420W N.O./N.C.
Max. switched current: Form A: 45 A
Form C: 45 A/30A N.O./N.C.
Max. switched voltage: 150* VDC
Max. carry current: 60 A
* If switching voltage is greater than 30 VDC, special
precautions must be taken. Please contact the factory.
Operate Time (typical)
Release Time (typical)
Dielectric Strength
500 VDC coil to contact
(at sea level for 1 min.)
500 VDC between open contacts
Insulation Resistance
Dropout
Ambient Temperature
Operating
Storage
Vibration
100 megohms min. at 20°C (68°F), 500 VDC,
50% RH
Greater than 6% of nominal coil voltage
At nominal coil voltage
-40°C (-40°F) to 135°C (275°F)
-40°C (-40°F) to 155°C (311°F))
10-40 Hz – 1.27 mm DA
40-70 Hz – 50 m/s
2
70-100 HZ – 0.5 mm DA
100-500 Hz – 100 m/s
2
20 g
P.B.T. polyester
Tinned copper alloy, P.C.
270°C (518°F)
5 seconds
80°C (176°F)
30 seconds
20 grams
UL, CUR
Material
Resistance
45A at 14VDC Res. 10k cycles (1 Form A)
Silver tin oxide (silver nickel available - contact factory)
< 100 milliohms initially
(24 V, 1 A voltage drop method)
COIL
Power
At Pickup Voltage
(typical)
Max. Continuous
Dissipation
Temperature Rise
Max. Temperature
484-573 mW standard coil
675 mW sensitive coil
4.2W 20°C (68°F) ambient
50°C (90°F) nominal coil VDC
155°C (311°F)
Shock
Enclosure
Terminals
Max. Solder Temp.
Max. Solder Time
Max. Solvent Temp.
Max. Immersion Time
Weight
NOTES
1. All values at 20°C (68°F).
2. Relay may pull in with less than “Must Operate” value.
3. Specifications subject to change without notice.
6/29/06W
AZ9701E/AZ9711E
RELAY ORDERING DATA — STANDARD COIL
COIL SPECIFICATIONS
Nominal Coil
VDC
6
12
24
Must Operate
VDC
3.3
6.8
13.9
Max. Continuous
VDC
9.0
19.6
39.3
ORDER NUMBER
Coil Resistance
Open
Sealed*
±10%
19.0
AZ9701E–1A–6DT AZ9701E–1C–6DT AZ9711E–1A–6DET AZ9711E–1C–6DET
90.0
362.0
AZ9701E–1A–12DT AZ9701E–1C–12DT AZ9711E–1A–12DET AZ9711E–1C–12DET
AZ9701E–1A–24DT AZ9701E–1C–24DT AZ9711E–1A–24DET AZ9711E–1C–24DET
RELAY ORDERING DATA — SENSITIVE COIL
COIL SPECIFICATIONS
Nominal Coil
VDC
6
12
24
Must Operate
VDC
4.5
9.0
19.2
Max. Continuous
VDC
11.3
22.6
45.2
ORDER NUMBER
Coil Resistance
Open
Sealed*
±10%
30.0
AZ9701E–1A–6DST AZ9701E–1C–6DST AZ9711E–1A–6DSET AZ9711E–1C–6DSET
120.0
480.0
AZ9701E–1A–24DSTAZ9701E–1C–24DST AZ9711E–1A–24DSET
AZ9701E–1A–12DST AZ9701E–1C–12DST AZ9711E–1A–12DSET AZ9711E–1C–12DSET
AZ9711E–1C–24DSET
* Add suffix “K” to add third yoke pin.
MECHANICAL DATA

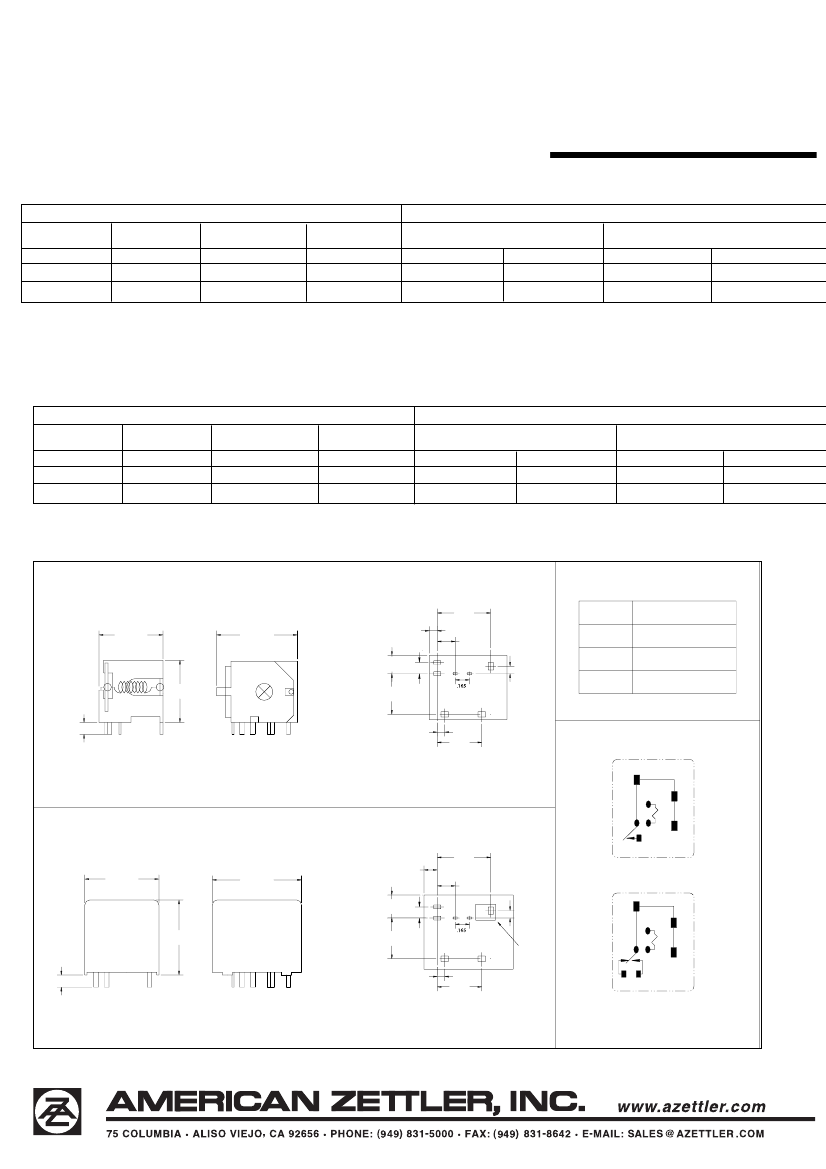

AZ9701E Outline Dimensions and PCB Layout
.626
[15.9]
Terminal Dimensions
Term.
3, 5
.087
[2.2]
[4.2]
Dimensions
.070 [1.78] x .032 [.81]
.025 [.64] x .048 [1.22]
.070 [1.78] x .063 [1.6]
.748
[19 MAX]
.945
[24 MAX]
.213
[5.4]
.094
[2.4]
.211
[5.35]
.130
[3.3]
1, 2
4
.728
[18.5 MAX]
.476
[12.1]
.138
[3.5 MAX]
.087
[2.2]
.520
[13.2]
4
4
2
4
5
.626
[15.9]
.866
[22.0MAX]
1.043
[26.5MAX]
.156
[3.96]
.211
[5.35]
.268
[6.81]
AZ9711E Outline Dimensions and PCB Layout
FORM A
.130
[3.3]
.087
[2.2]
[4.2]
4
4
2
.878
[22.3MAX]
.476
[12.1]
Optional
3rd Yoke
Termminal
.087
[2.2]
4
.142
[3.6MAX]
.520
[13.2]
3
5
FORM C
Viewed towards terminals
Dimensions in inches with metric equivalents in parentheses. Tolerance: ±0.010"
6/29/06W
