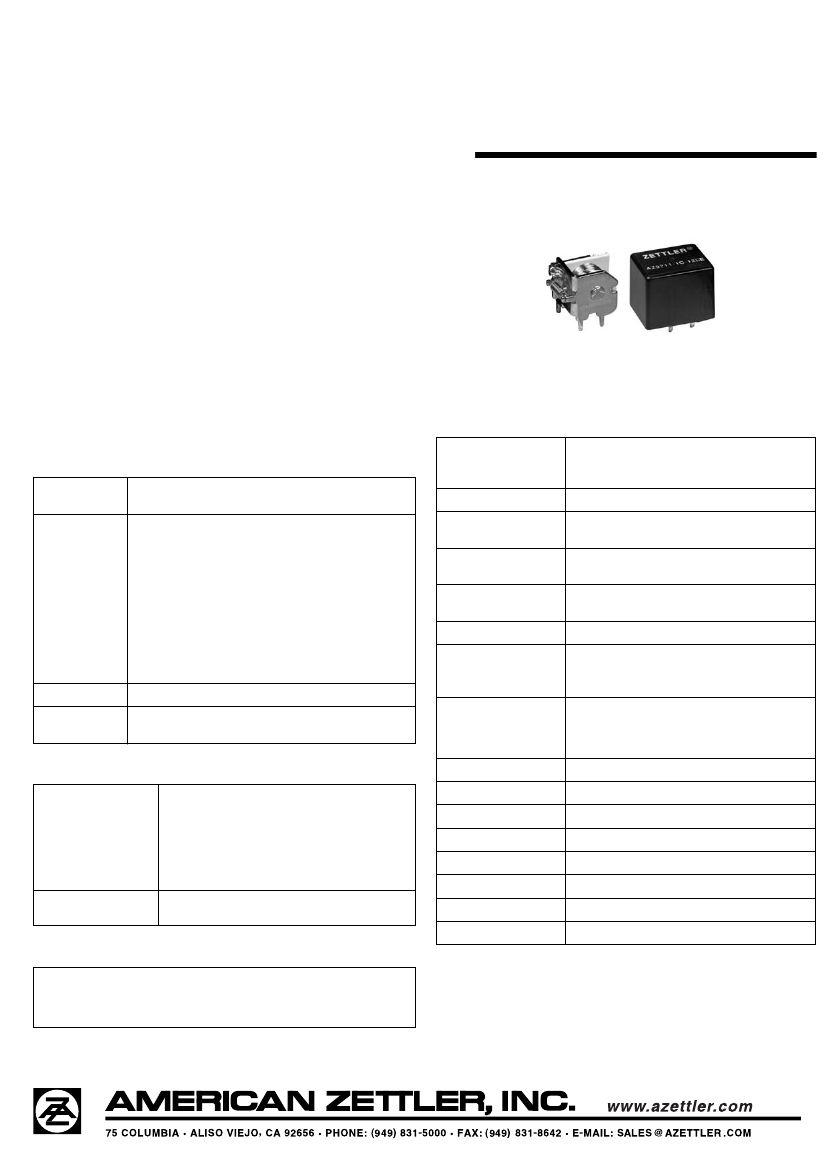

AZ9701/AZ9711
45 AMP AUTOMOTIVE RELAY
FEATURES
•
•
•
•
•
•
•
•
•
•
•
Up to 45 Amp switching capability in a compact size
Epoxy sealed versions available
Coils to 24 VDC
Small footprint
1 Form A and C contacts available
Vibration and shock resistant
ISO/TS 16949, ISO9001, ISO14000
Tested in accordance with SAE J2544
Cost effective
Designed for high in-rush applications
UL,CUR file E43203
GENERAL DATA
Life Expectancy
Mechanical
Electrical
Minimum operations
5 x 10
6
operations
1 x 10
5
40 A 14 VDC Res.
5 ms at nominal coil voltage
3 ms at nominal coil voltage
(with no coil suppression)
CONTACTS
Arrangement
Ratings
SPST (1 Form A)
SPDT (1 Form C)
Resistive load:
Max. switched power: Form A: 630 W
Form C: 630 W/420W N.O./N.C.
Max. switched current: Form A: 45 A
Form C: 45 A/30A N.O./N.C.
Max. switched voltage: 150* VDC
Max. carry current: 60 A
* If switching voltage is greater than 30 VDC, special
precautions must be taken. Please contact the factory.
Operate Time (typical)
Release Time (typical)
Dielectric Strength
500 VDC coil to contact
(at sea level for 1 min.)
500 VDC between open contacts
Insulation Resistance
Dropout
Ambient Temperature
Operating
Storage
Vibration
100 megohms min. at 20°C (68°F), 500 VDC,
50% RH
Greater than 6% of nominal coil voltage
At nominal coil voltage
-40°C (-40°F) to 135°C (275°F)
-40°C (-40°F) to 155°C (311°F))
10-40 Hz – 1.27 mm DA
40-70 Hz – 50 m/s
2
70-100 HZ – 0.5 mm DA
100-500 Hz – 100 m/s
2
20 g
P.B.T. polyester
Tinned copper alloy, P.C.
270°C (518°F)
5 seconds
80°C (176°F)
30 seconds
20 grams
UL, CUR
Material
Resistance
45A at 14VDC res. 10k cycles (1Form A)
Silver tin oxide
< 100 milliohms initially
(24 V, 1 A voltage drop method)
COIL
Power
At Pickup Voltage
(typical)
Max. Continuous
Dissipation
Temperature Rise
Max. Temperature
484-573 mW standard coil
675 mW sensitive coil
4.2W 20°C (68°F) ambient
50°C (90°F) nominal coil VDC
155°C (311°F)
Shock
Enclosure
Terminals
Max. Solder Temp.
Max. Solder Time
Max. Solvent Temp.
Max. Immersion Time
Weight
NOTES
1. All values at 20°C (68°F).
2. Relay may pull in with less than “Must Operate” value.
3. Specifications subject to change without notice.
7/17/08W

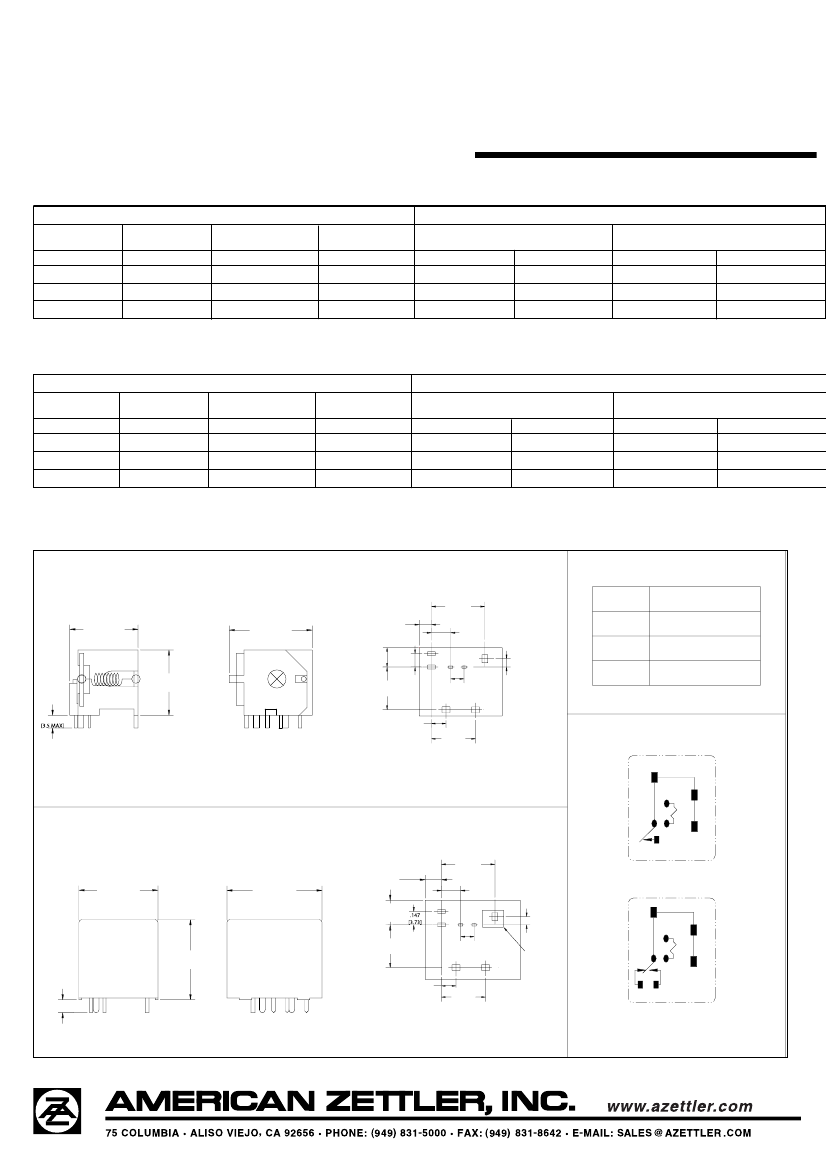

AZ9701/AZ9711
RELAY ORDERING DATA — STANDARD COIL
COIL SPECIFICATIONS
Nominal Coil
VDC
6
9
12
24
Must Operate
VDC
3.3
5.1
6.8
13.9
Max. Continuous
VDC
9.0
14.7
19.6
39.3
ORDER NUMBER
Coil Resistance
Open
Sealed*
±10%
19.0
AZ9701–1A–6DT AZ9701–1C–6DT AZ9711–1A–6DET AZ9711–1C–6DET
51.0
90.0
362.0
AZ9701–1A–9DT
AZ9701–1C–9DT AZ9711–1A–9DET AZ9711–1C–9DET
AZ9701–1A–12DT AZ9701–1C–12DT AZ9711–1A–12DET AZ9711–1C–12DET
AZ9701–1A–24DT AZ9701–1C–24DT AZ9711–1A–24DET AZ9711–1C–24DET
RELAY ORDERING DATA — SENSITIVE COIL
COIL SPECIFICATIONS
Nominal Coil
VDC
6
9
12
24
Must Operate
VDC
4.5
6.8
9.0
19.2
Max. Continuous
VDC
11.3
17.0
22.6
45.2
ORDER NUMBER
Coil Resistance
Open
Sealed*
±10%
30.0
AZ9701–1A–6DST AZ9701–1C–6DST AZ9711–1A–6DSET AZ9711–1C–6DSET
68.0
120.0
480.0
AZ9701–1A–9DST AZ9701–1C–9DST AZ9711–1A–9DSET AZ9711–1C–9DSET
AZ9701–1A–12DST AZ9701–1C–12DSTAZ9711–1A–12DSET AZ9711–1C–12DSET
AZ9701–1A–24DST AZ9701–1C–24DSTAZ9711–1A–24DSET AZ9711–1C–24DSET
*Add suffix “K” to add third yoke pin.
MECHANICAL DATA
AZ9701 Outline Dimensions and PCB Layout
Terminal Dimensions
.586
[14.88]
Term.
3, 5
.092
[2.33]
Dimensions
.070 [1.78] x .032 [.81]
.025 [.64] x .048 [1.22]
.048 [1.22] x .063 [1.6]
.748
[19.0 MAX]
.909
[23.1 MAX]
.213
[5.4]
.134
[3.4]
.211
[5.35]
.147
[3.73]
1, 2
4
.717
[18.2 MAX]
.467
[11.87]
.148
[3.75]
.138
.161
[4.08]
.483
[12.28]
4
4
2
1
5
.586
[14.88]
AZ9711 Outline Dimensions and PCB Layout
4
.866
[22.0 MAX]
1.043
[26.5 MAX]
.176
[4.47]
.268
[6.81]
FORM A
.211
[5.35]
4
.092
[2.33]
4
2
.878
[22.3 MAX]
.467
[11.87]
.148
[3.75]
Optional
3rd Yoke
Termminal
1
4
.161
[4.08]
.142
[3.6 MAX]
]
.483
[12.28]
3
5
FORM C
Viewed towards terminals
Viewed towards terminals
Dimensions in inches with metric equivalents in parentheses. Tolerance: ±0.010"
7/17/08W
