91553-0001: Description68 CONTACT(S), FEMALE, RIGHT ANGLE PCMCIA CONNECTOR, SURFACE MOUNT, RECEPTACLE; CategoryThe connector The connector; File Size211KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

91553-0001 Overview

68 CONTACT(S), FEMALE, RIGHT ANGLE PCMCIA CONNECTOR, SURFACE MOUNT, RECEPTACLE

91553-0001 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknow
ECCN code	EAR99
Body/casing type	RECEPTACLE
Connector type	PCMCIA CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	91553
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	0.635 mm
Termination type	SURFACE MOUNT
Total number of contacts	68
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

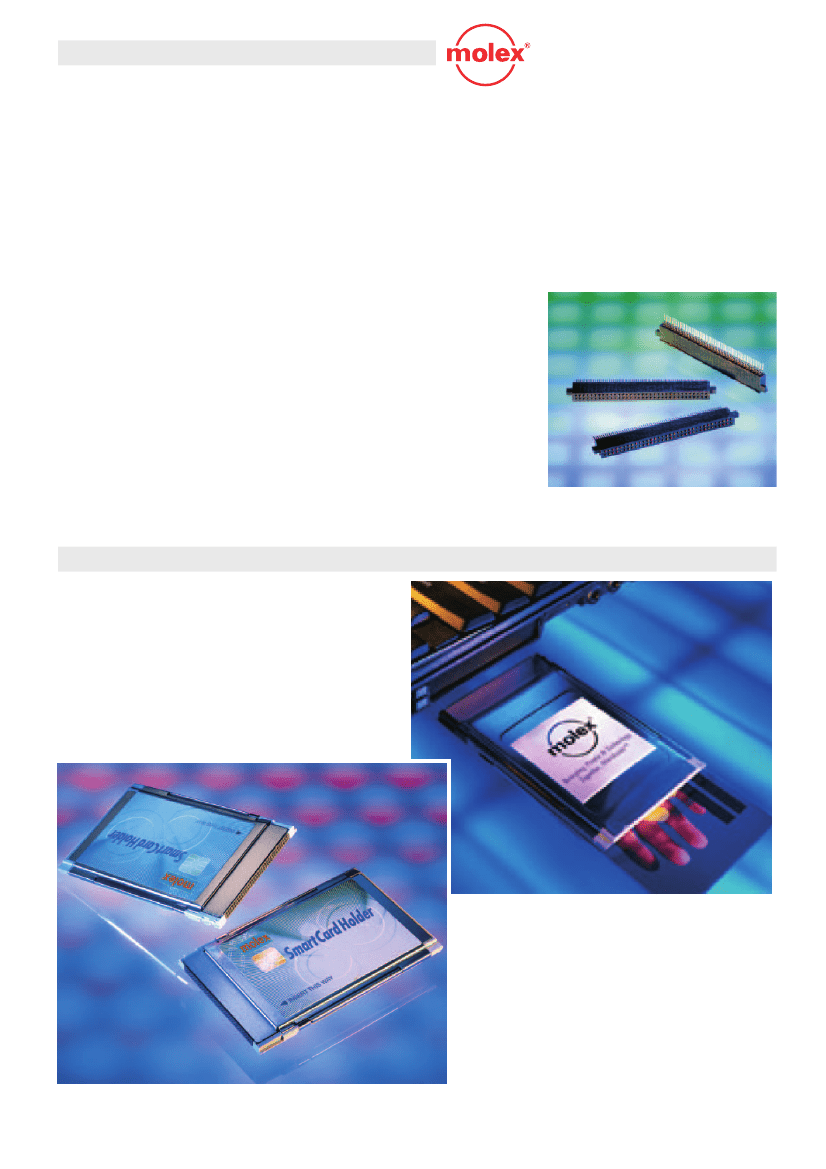

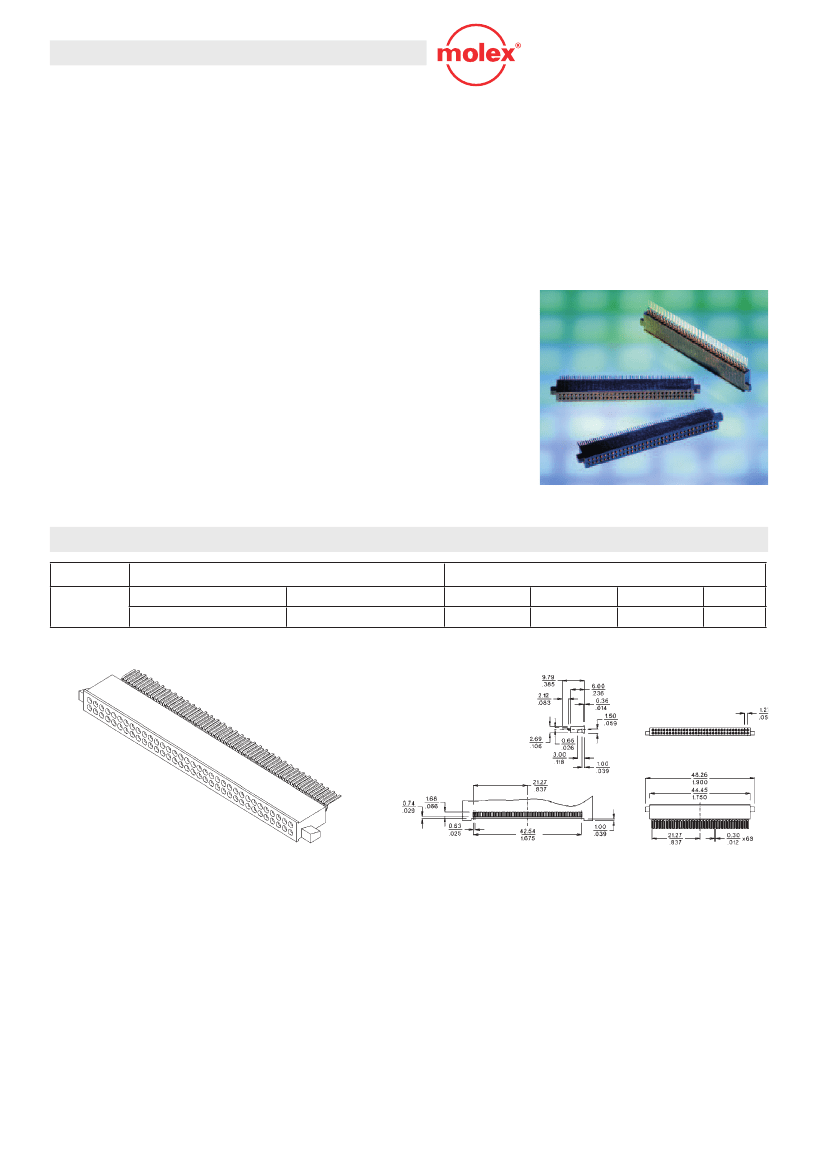

0.635 mm (.025") Pitch

68 Way PCMCIA

68 Way PCMCIA Header with 0.10 mm Coplanarity

The 91553 is an SMT 68 way header designed to the Personal Computer Memory Card International Association

(PCMCIA) speciﬁcation. This part is one of the few parts on the market to meet the challenging requirements

of an automated SMT process. It achieves this primarily through superior coplanarity performance. The major

applications include satellite decoders and laptop computers.

91553

Receptacle

Features and Beneﬁts

■

This product meets all PCMCIA standards

■

Coplanarity speciﬁcation is 0.10 mm as per SMT

standard

■

Hold down feature available for use during the

SMT process

■

Parts are available on tape & reel packaging so

are pick and place compatible

■

Durability of a minimum of 10,000 cycles

REGIONAL MARKETS, APPLICATIONS AND TYPICAL CUSTOMERS

■

Secure data modules for satellite decoders

■

Laptop computers

■

Handheld devices

■

Set top boxes
