X2864BJ-12 datasheet, PDF - EEWORLD Datasheet

X2864BJ-12: DescriptionEEPROM, 8KX8, 120ns, Parallel, NMOS, PQCC32, PLASTIC, LCC-32; Categorystorage storage; File Size462KB，8 Pages; ManufacturerXicor Inc.

Download Datasheet Parametric View All

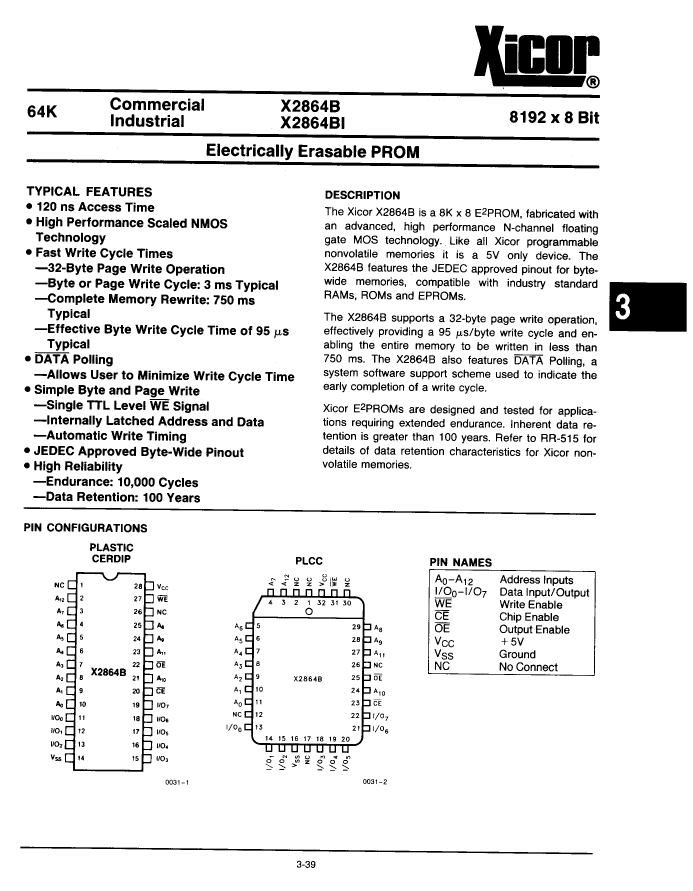

X2864BJ-12 Overview

EEPROM, 8KX8, 120ns, Parallel, NMOS, PQCC32, PLASTIC, LCC-32

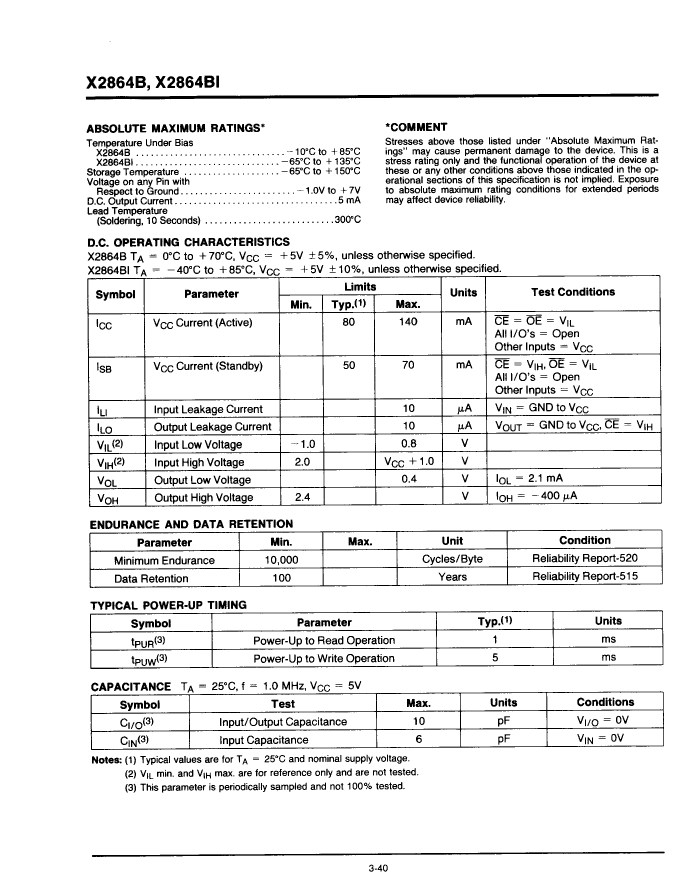

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	QCCJ, LDCC32,.5X.6
Reach Compliance Code	unknown

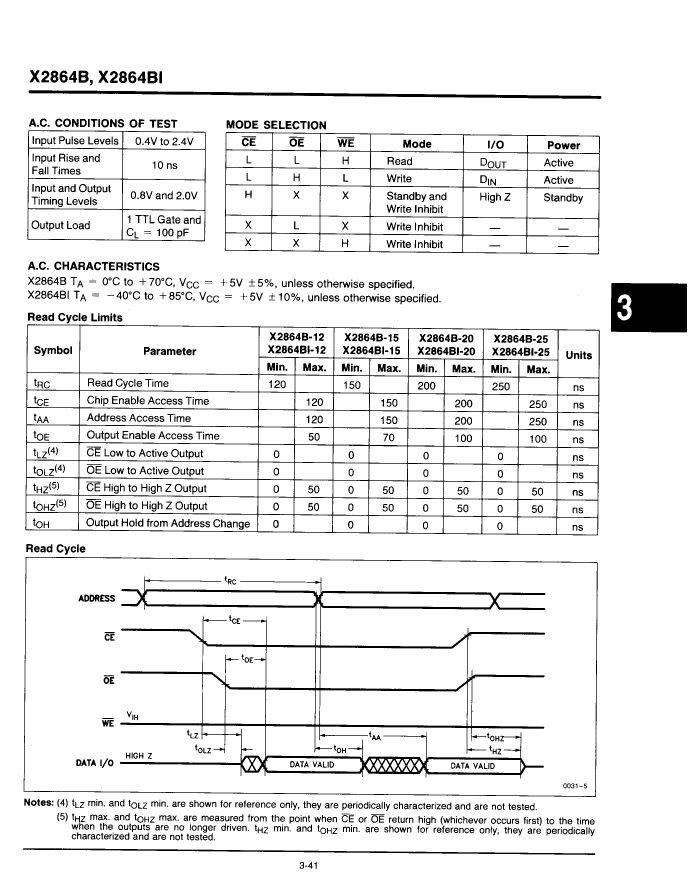

Maximum access time	120 ns
Other features	32 BYTE PAGE WRITE; OVER 10 YEARS DATA RETENTION
command user interface	NO
Data polling	YES
Data retention time - minimum	10
JESD-30 code	R-PQCC-J32
JESD-609 code	e0
length	13.97 mm
memory density	65536 bit
Memory IC Type	EEPROM
memory width	8
Number of functions	1
Number of terminals	32
word count	8192 words
character code	8000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	8KX8
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Encapsulate equivalent code	LDCC32,.5X.6
Package shape	RECTANGULAR
Package form	CHIP CARRIER
page size	32 words
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Programming voltage	5 V
Certification status	Not Qualified
Maximum seat height	3.56 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	NMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
switch bit	NO
width	11.43 mm

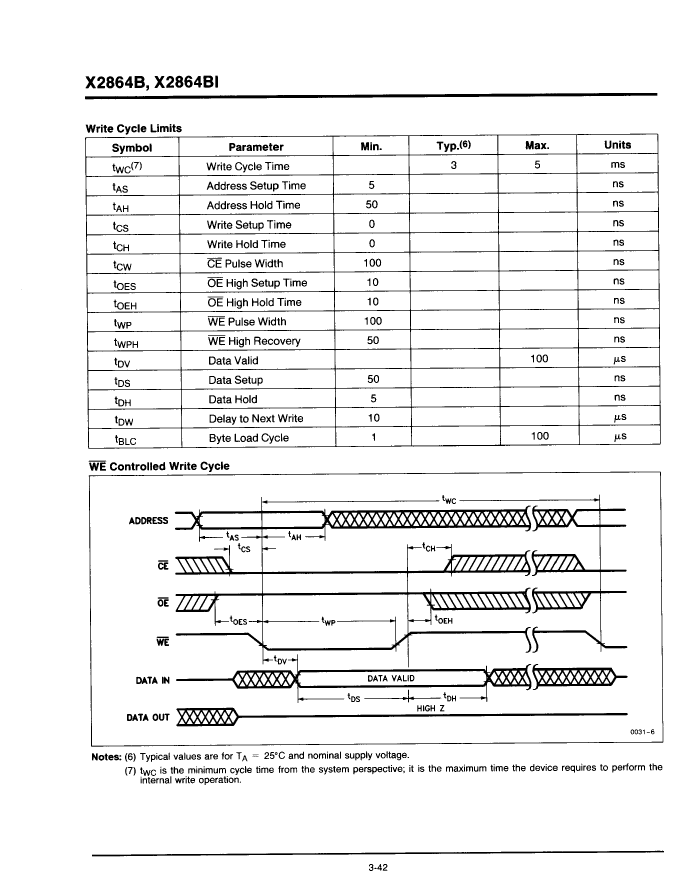

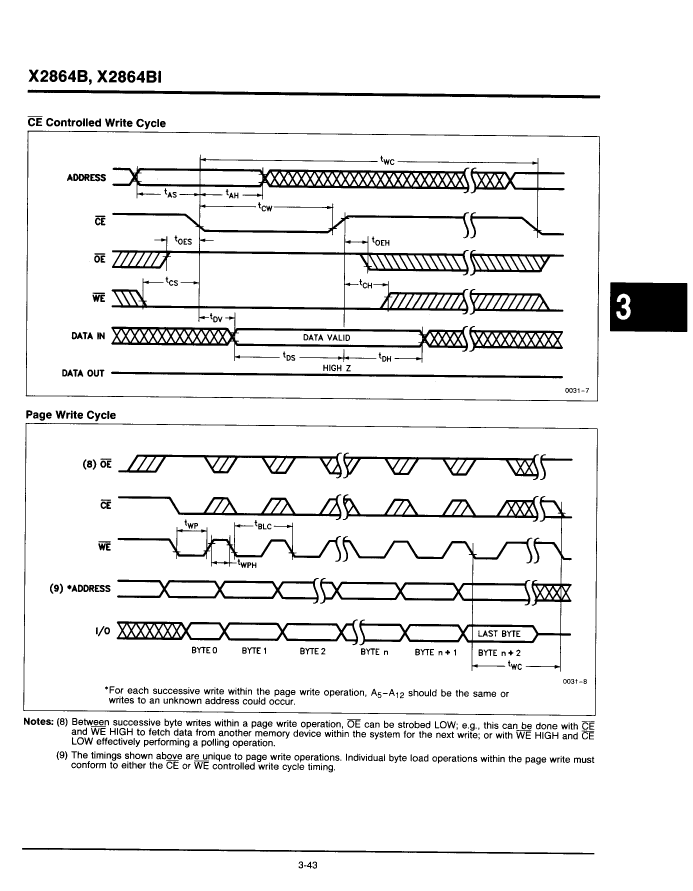

Maximum write cycle time (tWC)	5 ms
Base Number Matches	1
