60440201: DescriptionRectangular Power Connector, 56 Contact(s), Female,; CategoryThe connector The connector; File Size226KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

60440201 Overview

Rectangular Power Connector, 56 Contact(s), Female,

60440201 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell material	POLYBUTYLENE TEREPHTHALATE
Total number of contacts	56
Base Number Matches	1

Preview

Download Datasheet

View All

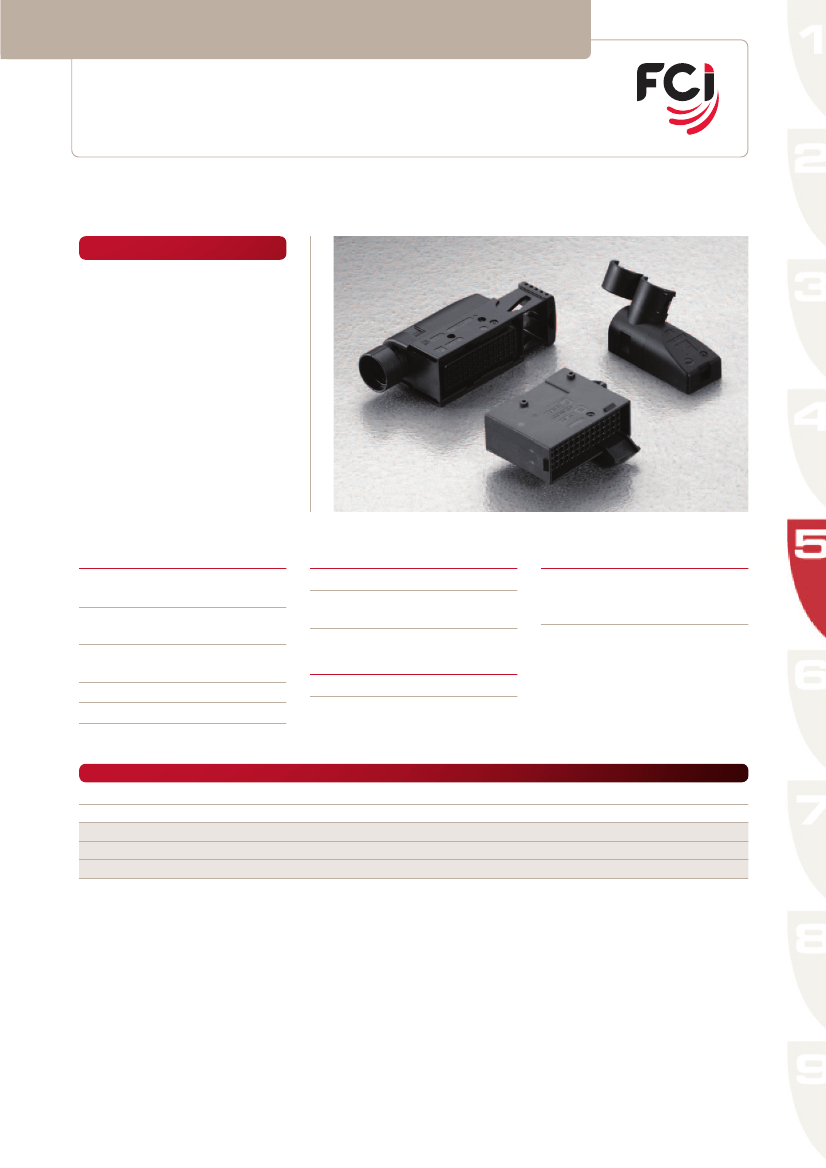

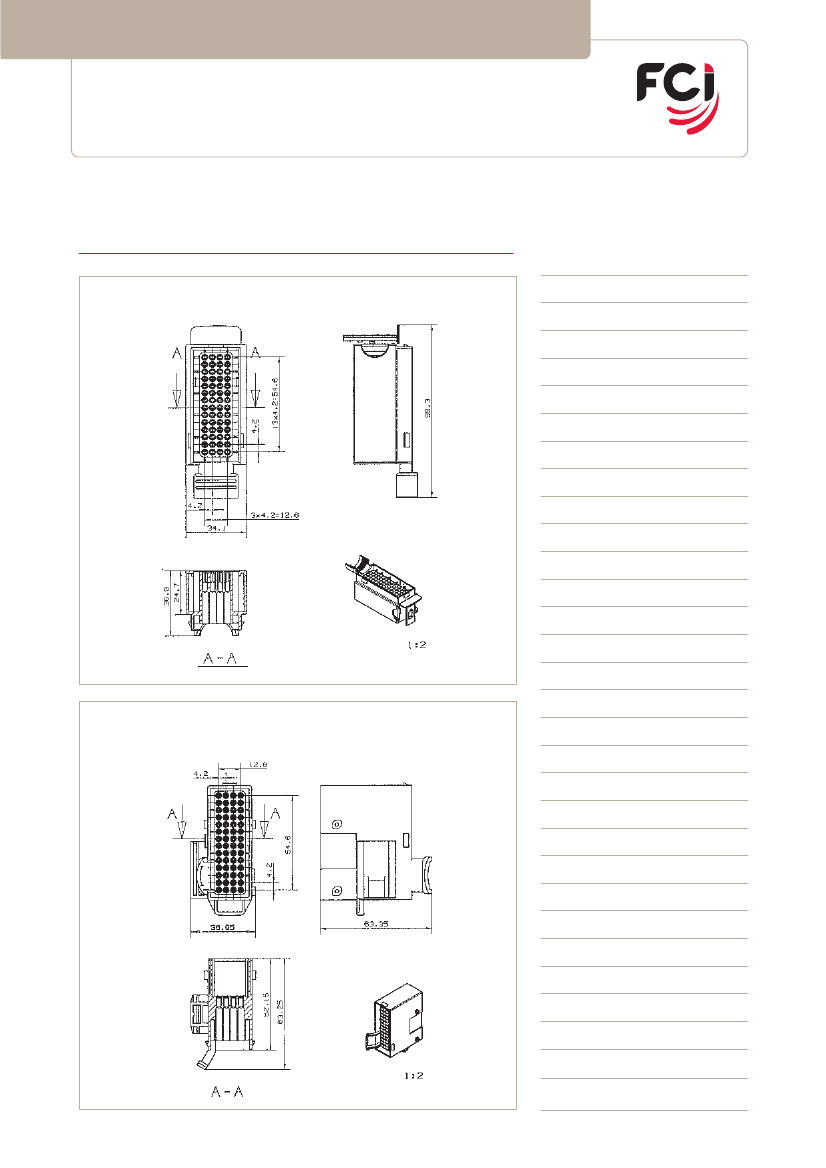

Harness Sectioning Connectors

Coupling connectors

DCS-2

56 way sealed connector system

Features

•

Rear sealing ensured by single wire

•

seal

Male housing can be equiped with

a mat-seal

Pre-mounted locking cam

Mechanical polarization

Connector position assurance

(C.P.A.) optional possible

Cable protection cover for

corrugated tube

Performance characteristics

•

Temperature range:

from -40°C to +120°C

Construction

•

Housing material:

•

Interface seal:

Silicone

PBT

Connector compatibility

•

Usable terminals:

- DCS-2 1.5 mm female terminals

- DCS-2 1.5 mm male terminals

•

Contact retention force:

> 55 N for DCS-2 1.5 mm

•

Contact insertion force:

< 10 N for DCS-2 1.5 mm

Tooling

•

Terminal removal tool:

Consult us

•

Connector mating force: Consult us

•

Sealing protection:

IPX 9K

Part Numbers

6 044 02 01

6 099 48 01

6 054 02 01

6 099 47 01

6 900 36 00

No. of position

56

Terminal size

56 x 1.5 mm

Type

Female housing

Cover

Male housing

Cover

Mat-seal

Colour

Black

Nature

5.21
