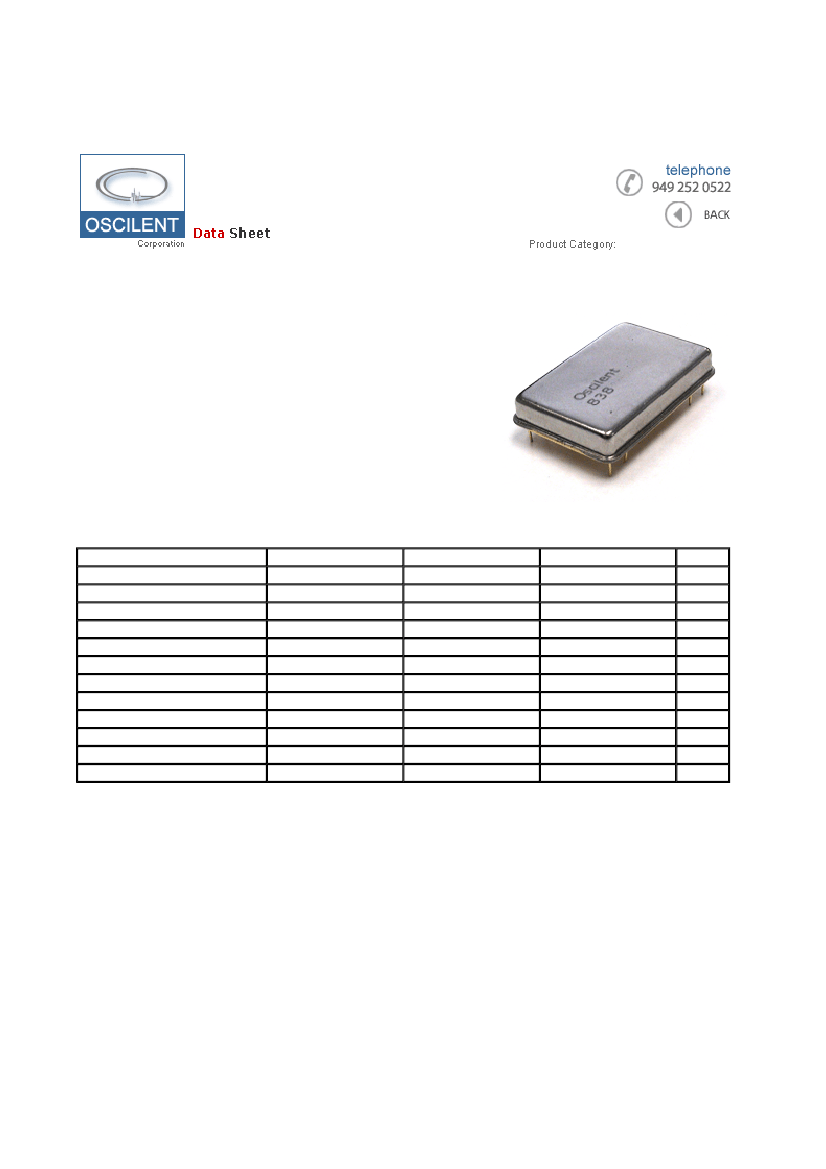

Oscilent Corporation IF SAW Filter | 838-IF70.0M-LA
Page 1 of 2
IF SAW Filter
Part Number
Package
Application
Last Modified
838-IF70.0M-LA
.
TYPE :
38.0 x 25.0 Thru Hole
Base Station & Repeater
May 24 2003
70.0 MHz Bandpass Filter
18.95 MHz Bandwidth
PART NUMBER :
838-IF70.0M-LA
..
OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS
PARAMETERS
Center Frequency
Insertion Loss
1dB Bandwidth
3dB Bandwidth
40dB Bandwidth
50dB Bandwidth
Passband Ripple
Group Delay Variation
Absolute Delay
Ultimate Rejection
Substrate Material
Ambient Temperature
Minimum
69.94
-
18.75
18.95
-
-
-
-
-
50
-
-
Typical
70.00
25.5
18.85
19.05
20.00
20.10
0.70
55
3.22
55
128° LN
25
Maximum
70.06
27.0
-
-
20.10
20.20
1.0
100
-
-
-
-
Units
MHz
dB
MHz
MHz
MHz
MHz
dB
nsec
µsec
dB
-
°C
* Custom SAW IF Filters available. Contact Oscilent for assistance.
.
PACKAGE OUTLINE
(mm)
TEST FIXTURE
Contact Oscilent for Test Fixture Details
http://www.oscilent.com/spec_pages/if_sawfilter/if_838_if70_0la.htm
12/28/2005
