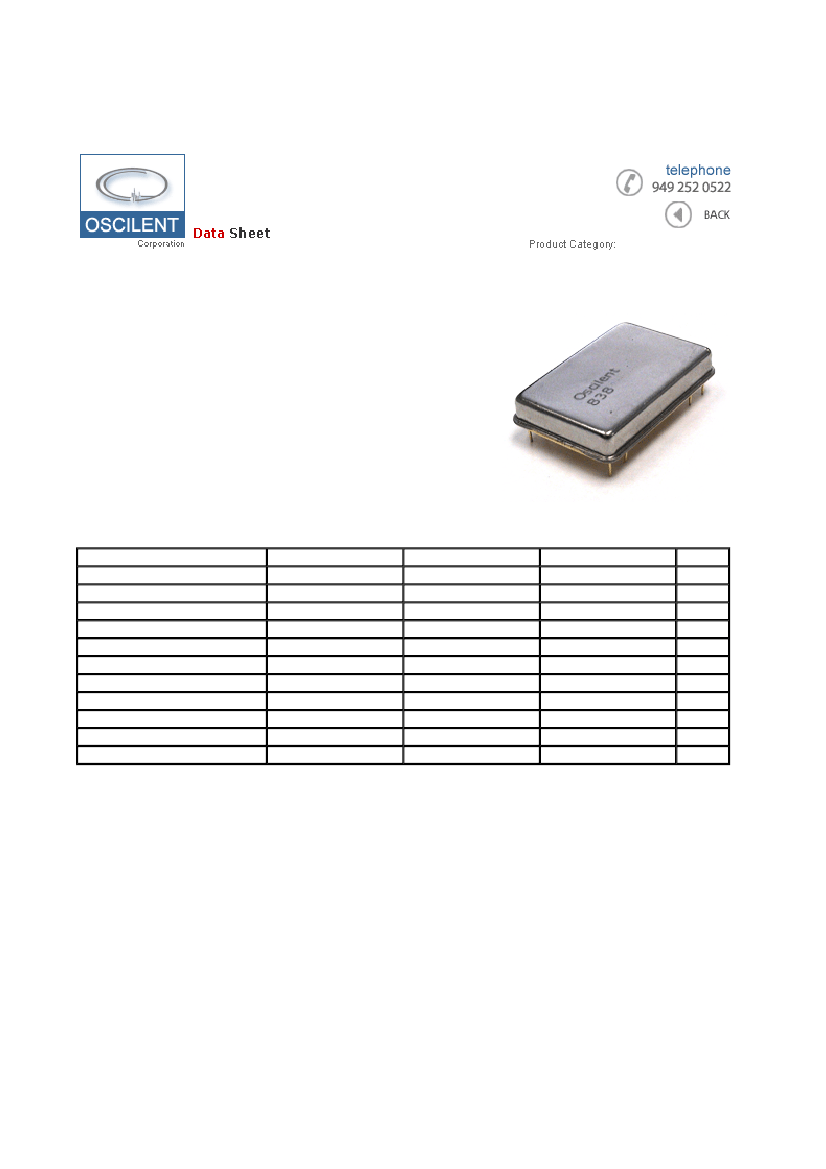

Oscilent Corporation IF SAW Filter | 838-IF65.0M-D
Page 1 of 2
IF SAW Filter
Part Number
Package
Application
Last Modified
838-IF65.0M-D
.
TYPE :
38.0 x 25.0 Thru Hole
Base Station & Repeater
May 24 2003
65.0 MHz Bandpass Filter
19.30 MHz Bandwidth
PART NUMBER :
838-IF65.0M-D
..
OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS
PARAMETERS
Center Frequency
Insertion Loss
1dB Bandwidth
3dB Bandwidth
40dB Bandwidth
Passband Ripple
Group Delay Variation
Absolute Delay
Ultimate Rejection
Substrate Material
Ambient Temperature
Minimum
64.92
-
19.10
19.30
-
-
-
-
50
-
-
Typical
65.00
24.5
19.30
19.60
20.80
0.6
70
2.87
55
LN
25
Maximum
65.08
26.0
-
-
20.90
1.0
120
-
-
-
-
Units
MHz
dB
MHz
MHz
MHz
dB
nsec
µsec
dB
-
°C
* Custom SAW IF Filters available. Contact Oscilent for assistance.
.
PACKAGE OUTLINE
(mm)
TEST FIXTURE
Contact Oscilent for Test Fixture Details
http://www.oscilent.com/spec_pages/if_sawfilter/if_838_if65_0d.htm
