BU-060Z-178HT datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> socket> BU-060Z-178HT

Preview

BU-060Z-178HT: DescriptionIC Socket, DIP6, 6 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Surface Mount; CategoryThe connector socket; File Size43KB，2 Pages; ManufacturerOn-Shore Technology ( OST ); Websitehttp://www.on-shore.com

Download Datasheet Parametric Compare View All

BU-060Z-178HT Overview

IC Socket, DIP6, 6 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Surface Mount

BU-060Z-178HT Parametric

Parameter Name	Attribute value
Maker	On-Shore Technology ( OST )
Reach Compliance Code	compliant
body width	0.397 inch
subject depth	0.146 inch
body length	0.3 inch
Contact to complete cooperation	AU ON NI
Contact material	BE-CU
Contact style	RND PIN-SKT
current rating	1 A
Device slot type	IC SOCKET
Type of equipment used	DIP6
Dielectric withstand voltage	1400VAC V
Shell material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Insulation resistance	1000000000000 Ω
Manufacturer's serial number	BU
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Number of contacts	6
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	0.3 mm
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT

Preview

Download Datasheet

View All

Series: BU-178HT

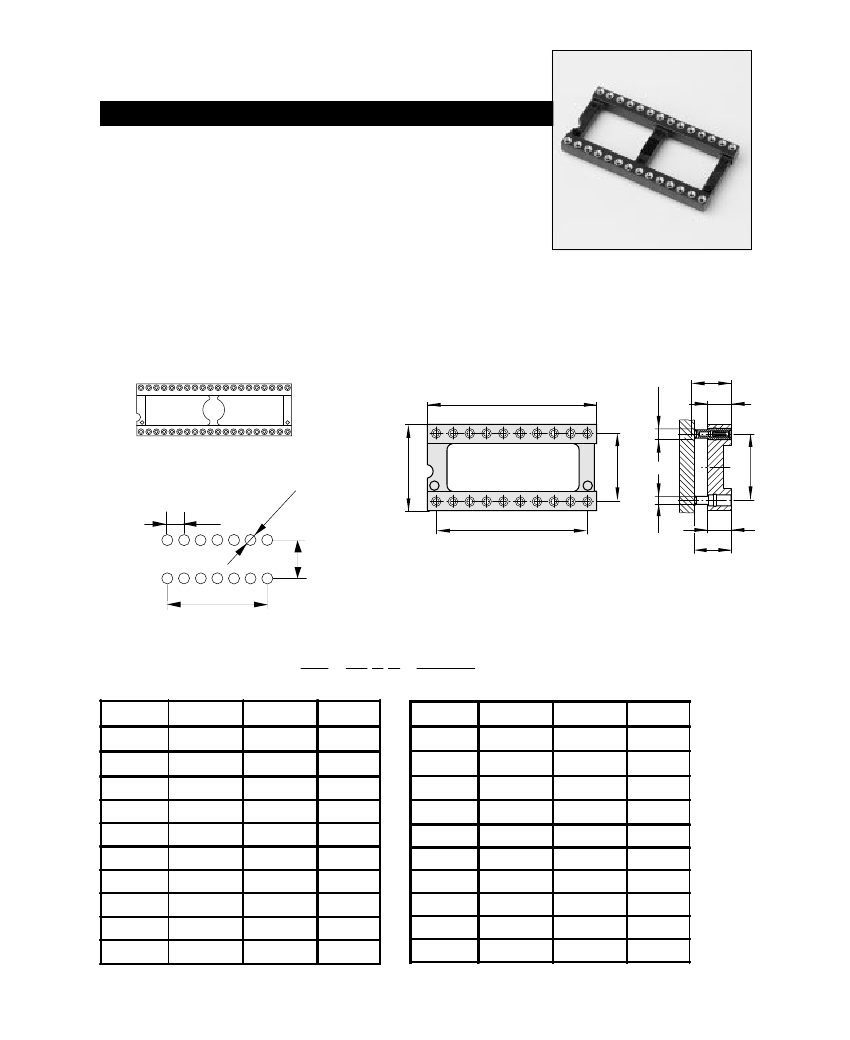

SMT Machined Dip Socket

v

Insertion diameter, .40 mm min. - .56 mm max.

Insertion depth, 2.4 mm min. - 3.8 mm max.

Process temperature, 260°C for 10 sec. / 215°C for 2 minutes

Four finger clip with funnel design entry

Side and end stackable

Pin 1 polarized

3.7

Ø 1.5

A

2.4

C

B

Ø1

2.54

1.

5

n - 1 x 2.54

C

2.8

4.3

n - 1 X 2.54

RECOMMENDED PCB LAYOUT

Ordering example:

Positions

04

06

08

10

14

16

18

20

22

22*

A

5.08

7.62

10.16

12.70

17.78

20.32

22.86

25.40

27.94

B

10.08

BU - 14 0 Z - 178HT

C

7.62

15.24

7.62

Positions

24

24*

28

28*

32

36

40

48

50

64

A

30.48

35.56

40.64

45.75

50.80

60.96

63.50

81.28

B

17.70

10.08

17.70

25.32

C

15.24

7.62

15.24

7.62

15.24

22.86

*Add 1 for 7.62 spacing on 22(1), 24(1) and 28(1) positions

C

OPTIONAL PICK AND PLACE PAD

BU-060Z-178HT Related Products

	BU-060Z-178HT	BU-080Z-178HT	BU-160Z-178HT	BU-180Z-178HT	BU-240Z-178HT	BU-280Z-178HT	BU-400Z-178HT	BU-640Z-178HT	BU-16OZ
Description	IC Socket, DIP6, 6 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Surface Mount	IC Socket, DIP8, 8 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Surface Mount	IC Socket, DIP16, 16 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Surface Mount	IC Socket, DIP18, 18 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Surface Mount	IC Socket, DIP24, 24 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Surface Mount	IC Socket, DIP28, 28 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Surface Mount	IC Socket, DIP40, 40 Contact(s), 2.54mm Term Pitch, 0.6inch Row Spacing, Surface Mount	IC Socket, DIP64, 64 Contact(s), 2.54mm Term Pitch, 0.9inch Row Spacing, Surface Mount	IC Socket, DIP16, 16 Contact(s)
Maker	On-Shore Technology ( OST )	On-Shore Technology ( OST )	On-Shore Technology ( OST )	On-Shore Technology ( OST )	On-Shore Technology ( OST )	On-Shore Technology ( OST )	On-Shore Technology ( OST )	On-Shore Technology ( OST )	On-Shore Technology ( OST )
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compli
Device slot type	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET
Type of equipment used	DIP6	DIP8	DIP16	DIP18	DIP24	DIP28	DIP40	DIP64	DIP16
Shell material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	BU	BU	BU	BU	BU	BU	BU	BU	BU
Number of contacts	6	8	16	18	24	28	40	64	16
body width	0.397 inch	0.397 inch	0.397 inch	0.397 inch	0.397 inch	0.397 inch	0.697 inch	0.997 inch	-
subject depth	0.146 inch	0.146 inch	0.146 inch	0.146 inch	0.146 inch	0.146 inch	0.146 inch	0.146 inch	-
body length	0.3 inch	0.4 inch	0.8 inch	0.9 inch	1.2 inch	1.4 inch	2 inch	3.2 inch	-
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	-
Contact material	BE-CU	BE-CU	BE-CU	BE-CU	BE-CU	BE-CU	BE-CU	BE-CU	-
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	-
current rating	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A	-
Dielectric withstand voltage	1400VAC V	1400VAC V	1400VAC V	1400VAC V	1400VAC V	1400VAC V	1400VAC V	1400VAC V	-
Insulation resistance	1000000000000 Ω	1000000000000 Ω	1000000000000 Ω	1000000000000 Ω	1000000000000 Ω	1000000000000 Ω	1000000000000 Ω	1000000000000 Ω	-
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	-
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	-
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	-
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-
PCB contact row spacing	0.3 mm	0.3 mm	0.3 mm	0.3 mm	0.3 mm	0.3 mm	0.6 mm	0.9 mm	-
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	-
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	-
