835-IF80.7M-A

Description
Base Station & Repeater
CategoryAnalog mixed-signal IC    filter
File Size131KB,2 Pages
ManufacturerOscilent
Websitehttp://www.oscilent.com
Download Datasheet Parametric View All

835-IF80.7M-A Overview

Base Station & Repeater

835-IF80.7M-A Parametric

Parameter NameAttribute value
MakerOscilent
Reach Compliance Codecompli
Center frequency or cutoff frequency (fo/fc)80.7 MHz
filter typeSAW FILTER
high5 mm
input resistance50 OHM
Maximum insertion loss28 dB
Manufacturer's serial number835-IF80.7M-A
Installation typeTHROUGH HOLE MOUNT
Number of functions1
Output impedance50 OHM Ω
physical sizeL35.0XB12.8XH5.3 (mm)/L1.378XB0.504XH0.209 (inch)

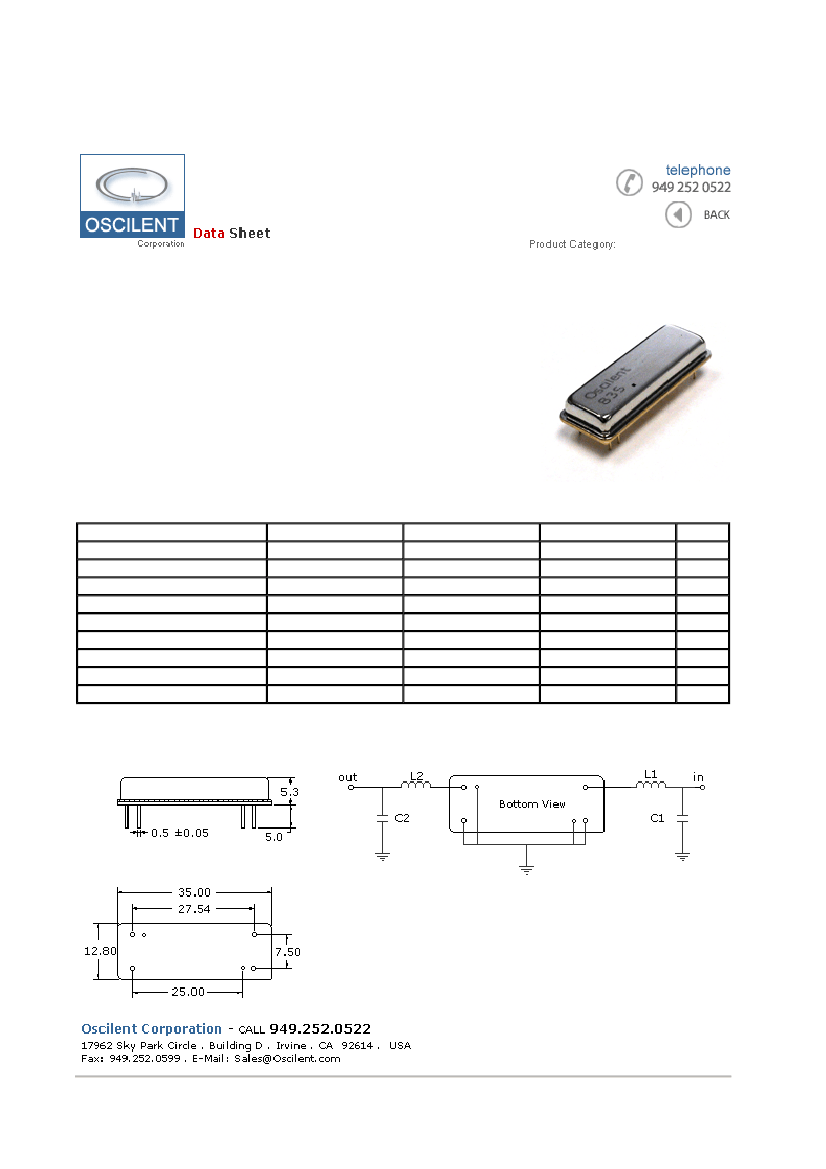

Oscilent Corporation IF SAW Filter | 835-IF80.7M-A
Page 1 of 2
IF SAW Filter
Part Number
Package
Application
Last Modified
835-IF80.7M-A
.
TYPE :
35.0 x 12.8 Thru Hole
Base Station & Repeater
May 24 2003
80.7 MHz Bandpass Filter
11.20 MHz Bandwidth
PART NUMBER :
835-IF80.7M-A
..
OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS
PARAMETERS
Center Frequency
Insertion Loss
3dB Bandwidth
40dB Bandwidth
Passband Ripple
Group Delay Variation
Ultimate Rejection
Substrate Material
Ambient Temperature
Minimum
-
-
-
-
-
-
-
-
-
Typical
80.7
25.2
11.2
12.8
0.8
80
50
LT
25
Maximum
-
28.0
-
-
1.2
150
55
-
-
Units
MHz
dB
MHz
MHz
dB
nsec
dB
-
°C
* Custom SAW IF Filters available. Contact Oscilent for assistance.
.
PACKAGE OUTLINE
(mm)
TEST FIXTURE
L1 = 120nH
L2 = 180nH
C1 = 62pF
C2 = 43pF
Source/Load Impedance = 50 ohms
Part No.:
835-IF80.7M-A
http://www.oscilent.com/spec_pages/if_sawfilter/if_835_if80_7a.htm
12/28/2005
