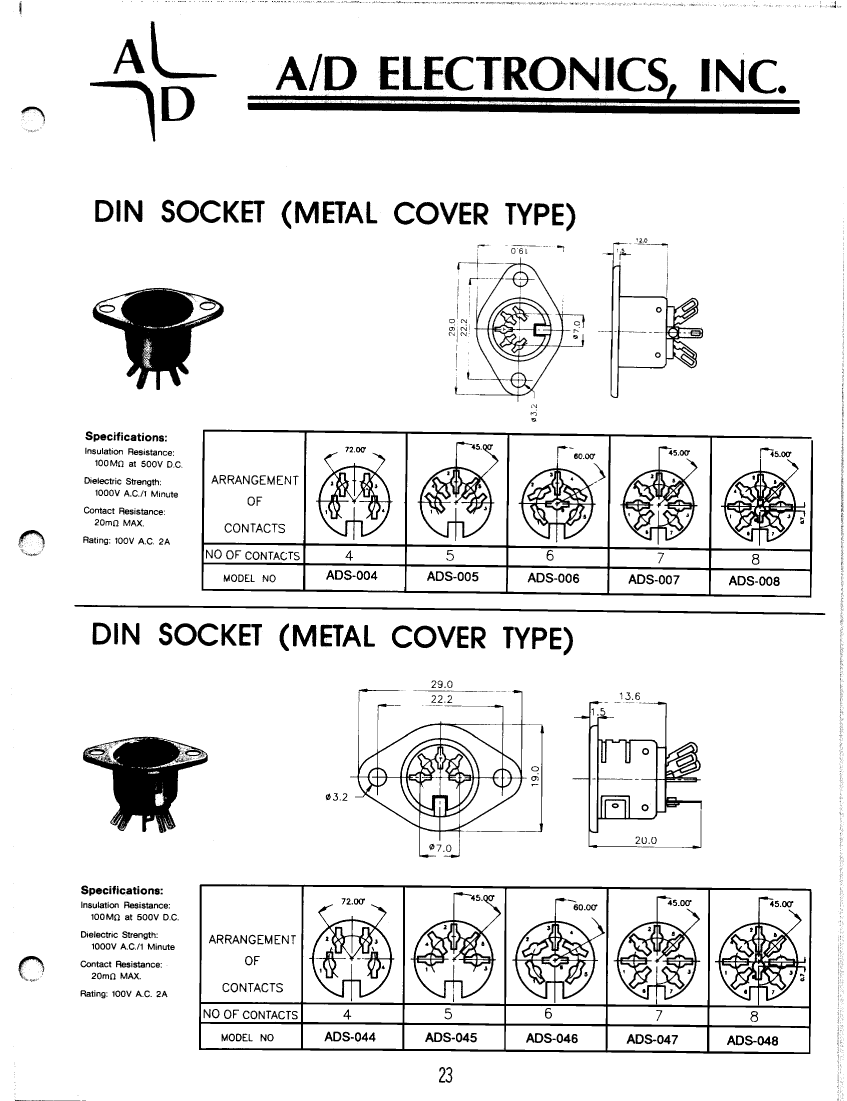

ADS-005: DescriptionCircular DIN Connector, 5 Contact(s), Female, Panel Mount, Solder Lug Terminal, Socket; CategoryThe connector The connector; File Size56KB，1 Pages; ManufacturerA/D Electronics Inc.

Download Datasheet Parametric Compare View All

ADS-005 Overview

Circular DIN Connector, 5 Contact(s), Female, Panel Mount, Solder Lug Terminal, Socket

ADS-005 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Body/casing type	SOCKET
Connector type	CIRCULAR DIN CONNECTOR
Contact point gender	FEMALE
Contact pitch circle diameter	7 mm
DIN compliance	YES
Electromagnetic interference shielding	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	ADS-005
Installation method	STRAIGHT
Installation type	PANEL
Termination type	SOLDER LUG
Total number of contacts	5
Base Number Matches	1

Preview

Download Datasheet

View All

ADS-005 Related Products

	ADS-005	ADS-004	ADS-006	ADS-007	ADS-008	ADS-044	ADS-046	ADS-047	ADS-048	ADS-045
Description	Circular DIN Connector, 5 Contact(s), Female, Panel Mount, Solder Lug Terminal, Socket	Circular DIN Connector, 4 Contact(s), Female, Panel Mount, Solder Lug Terminal, Socket	Circular DIN Connector, 6 Contact(s), Female, Panel Mount, Solder Lug Terminal, Socket	Circular DIN Connector, 7 Contact(s), Female, Panel Mount, Solder Lug Terminal, Socket	Circular DIN Connector, 8 Contact(s), Female, Panel Mount, Solder Lug Terminal, Socket	Circular DIN Connector, 4 Contact(s), Female, Panel Mount, Solder Lug Terminal, Socket	Circular DIN Connector, 6 Contact(s), Female, Panel Mount, Solder Lug Terminal, Socket	Circular DIN Connector, 7 Contact(s), Female, Panel Mount, Solder Lug Terminal, Socket	Circular DIN Connector, 8 Contact(s), Female, Panel Mount, Solder Lug Terminal, Socket	Circular DIN Connector, 5 Contact(s), Female, Panel Mount, Solder Lug Terminal, Socket
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Body/casing type	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET
Connector type	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
Electromagnetic interference shielding	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	ADS-005	ADS-004	ADS-006	ADS-007	ADS-008	ADS-044	ADS-046	ADS-047	ADS-048	ADS-045
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	PANEL	PANEL	PANEL	PANEL	PANEL	PANEL	PANEL	PANEL	PANEL	PANEL
Termination type	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG
Total number of contacts	5	4	6	7	8	4	6	7	8	5
Contact pitch circle diameter	7 mm	7 mm	-	7 mm	-	7 mm	-	7 mm	-	7 mm
Base Number Matches	1	1	1	1	1	1	1	1	1	-
