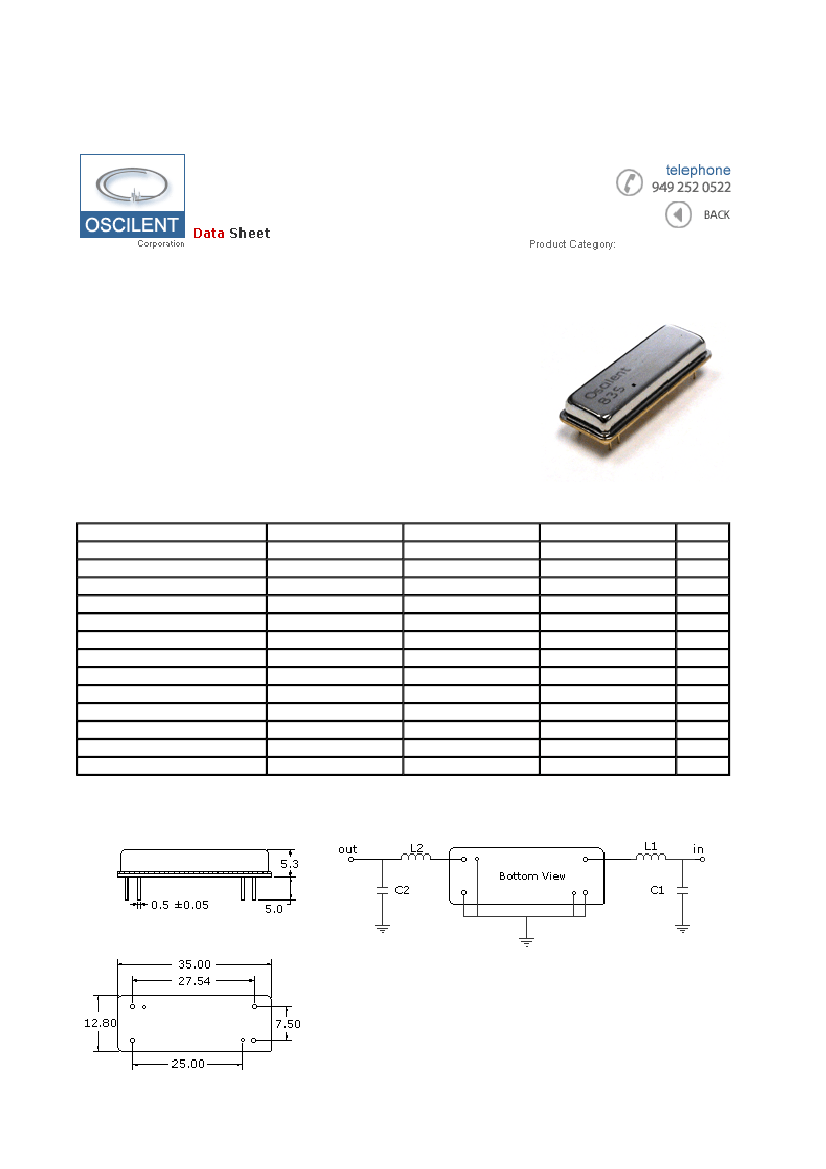

Oscilent Corporation IF SAW Filter | 835-IF75.0M-D
Page 1 of 2
IF SAW Filter
Part Number
Package
Application
Last Modified
835-IF75.0M-D
.
TYPE :
35.0 x 12.8 Thru Hole
Base Station & Repeater
May 24 2003
75.0 MHz Bandpass Filter
19.30 MHz Bandwidth
PART NUMBER :
835-IF75.0M-D
..
OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS
PARAMETERS
Center Frequency
Insertion Loss
1dB Bandwidth
3dB Bandwidth
18dB Bandwidth
33dB Bandwidth
40dB Bandwidth
50dB Bandwidth
Passband Ripple
Group Delay Variation
Ultimate Rejection
Substrate Material
Ambient Temperature
Minimum
69.95
-
18.90
19.30
-
-
-
-
-
-
50
-
-
Typical
75.00
22.80
19.05
19.50
20.29
20.60
20.70
20.80
0.65
65
55
LN
25
Maximum
75.05
25.0
-
-
20.40
20.80
20.90
21.00
1.0
100
-
-
-
Units
MHz
dB
MHz
MHz
MHz
MHz
MHz
MHz
dB
nsec
dB
-
°C
* Custom SAW IF Filters available. Contact Oscilent for assistance.
.
PACKAGE OUTLINE
(mm)
TEST FIXTURE
L1 = 120nH
L2 = 180nH
C1 = 51pF
C2 = 43pF
Source/Load Impedance = 50 ohms
