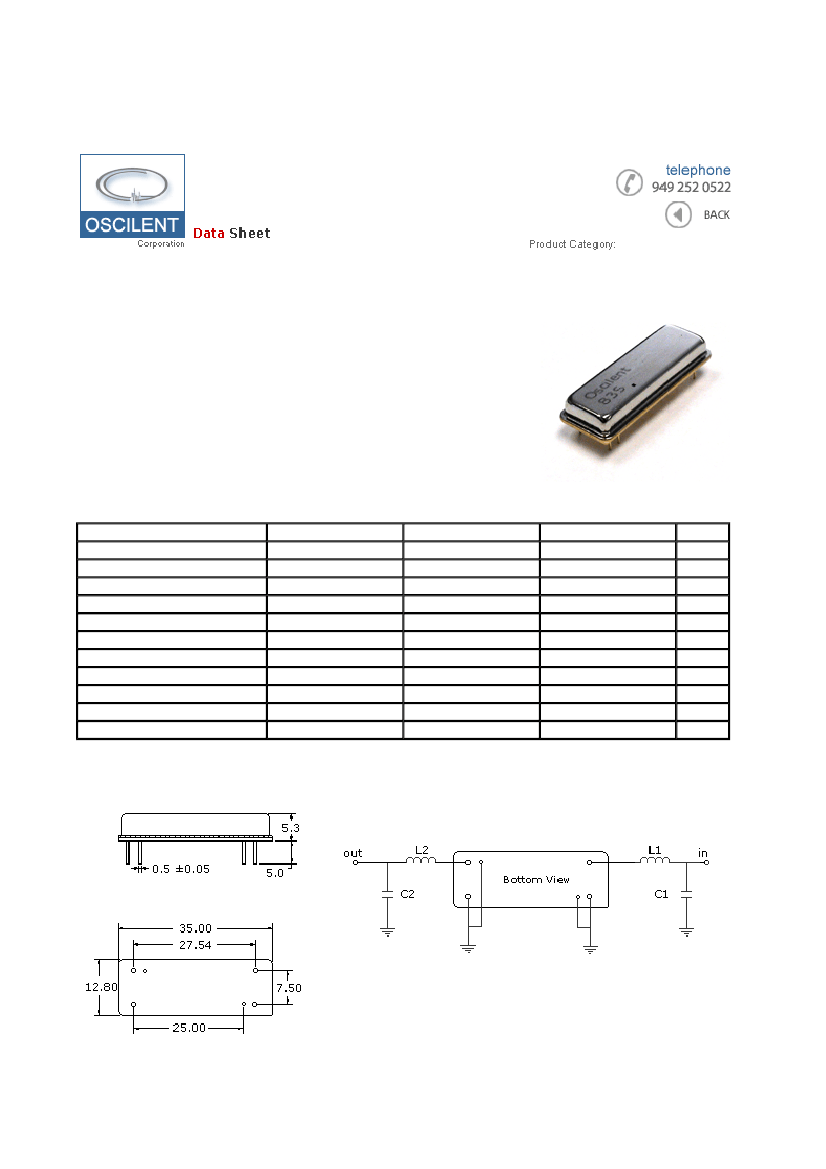

Oscilent Corporation IF SAW Filter | 835-IF120.0M-B

Page 1 of 2

IF SAW Filter

Part Number

Package

Application

Last Modified

835-IF120.0M-B

.

TYPE :

35.0 x 12.0 Thru Hole

Base Station & Repeater

May 30 2003

120.0 MHz Bandpass Filter

26.1 MHz Bandwidth

PART NUMBER :

835-IF120.0M-B

..

OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS

PARAMETERS

Center Frequency

Insertion Loss

1dB Bandwidth

3dB Bandwidth

40dB Bandwidth

Passband Ripple

Group Delay Variation

Absolute Delay

Ultimate Rejection

Substrate Material

Ambient Temperature

Minimum

119.9

-

25.5

26.1

-

50

-

Typical

120.0

23.0

25.65

26.25

28.70

0.70

35

1.52

55

128 Degree LN

25

Maximum

120.1

25.0

-

28.9

1.0

80

-

Units

MHz

dB

MHz

dB

nsec

µsec

dB

-

°C

* Custom SAW IF Filters available. Contact Oscilent for assistance.

.

PACKAGE OUTLINE

(mm)

TEST FIXTURE

L1 =

L2 =

39nH

27nH

C2 = 15pF

Source/Load Impedance = 50 ohms

* PKG ground required for excellent spurious levels

Part No.:

835-IF120.0M-B

http://www.oscilent.com/spec_pages/if_sawfilter/if_835_if120_0b.htm

12/28/2005
