MUR3005PT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> MUR3005PT

MUR3005PT: DescriptionRectifier, Ultra Fast Recovery; Max Peak Repetitive Reverse Voltage: 30; Max TMS Bridge Input Voltage: 50; Max DC Reverse Voltage: 10; Package: TO-218AC; CategoryDiscrete semiconductor diode; File Size509KB，5 Pages; ManufacturerDigitron; Websitehttp://www.digitroncorp.com

Download Datasheet Parametric Compare View All

MUR3005PT Overview

Rectifier, Ultra Fast Recovery; Max Peak Repetitive Reverse Voltage: 30; Max TMS Bridge Input Voltage: 50; Max DC Reverse Voltage: 10; Package: TO-218AC

MUR3005PT Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
application	ULTRA FAST RECOVERY
Shell connection	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.05 V
JEDEC-95 code	TO-218AC
JESD-30 code	R-PSFM-T3
Maximum non-repetitive peak forward current	200 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	175 °C
Minimum operating temperature	-65 °C
Maximum output current	15 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Maximum repetitive peak reverse voltage	50 V
Maximum reverse current	10 µA
Maximum reverse recovery time	0.035 µs
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Base Number Matches	1

Preview

Download Datasheet

View All

MUR3005PT-MUR3060PT

High-reliability discrete products

and engineering services since 1977

FEATURES

•

Available as “HR” (high reliability) screened per MIL-PRF-19500, JANTX level. Add “HR” suffix to base part number.

Available as non-RoHS

(Sn/Pb plating), standard, and as RoHS by adding “-PBF” suffix.

30A ULTRA FAST RECTIFIERS

MAXIMUM RATINGS

Rating

Symbol

MUR3005PT

MUR3010PT

MUR3015PT

MUR3020PT

MUR3030PT

MUR3040PT

MUR3050PT

MUR3060PT

Unit

Peak repetitive reverse voltage

Working peak reverse voltage

DC blocking voltage

Average rectified forward current

(Rated V

)

Peak repetitive forward current, per leg

(Rated V

, square wave, 20 kHz), T

= 150°C)

Non-repetitive peak surge current

(surge applied at rated load conditions halfwave, single

phase, 60Hz)

RRM

RWM

F(AV)

FRM

100

150

200

300

400

500

600

30 @ T

= 150°C

30 @

= 145°C

30 @

= 145°C

30 @ T

= 150°C

FSM

200

-65 to +175

150

Operating and storage junction temperature

range

Thermal resistance

Junction to case

Junction to ambient

stg

°C

ӨJC

ӨJA

1.5

°C/W

ELECTRICAL CHARACTERISTICS

= 25°C unless otherwise noted)

Parameter

Symbol

MUR3005PT

MUR3010PT

MUR3015PT

MUR3020PT

MUR3030PT

MUR3040PT

MUR3050PT

MUR3060PT

Unit

Maximum instantaneous forward

voltage

(1)

= 15A, T

= 150°C)

= 15A, T

= 25°C)

Maximum instantaneous reverse current

(1)

0.85

1.05

1.12

1.25

1.2

1.5

(Rated dc voltage, T

= 150°C)

(Rated dc voltage, T

= 25°C)

Maximum reverse recovery time

= 1.0A, di/dt = 50A/µs)

500

1000

µA

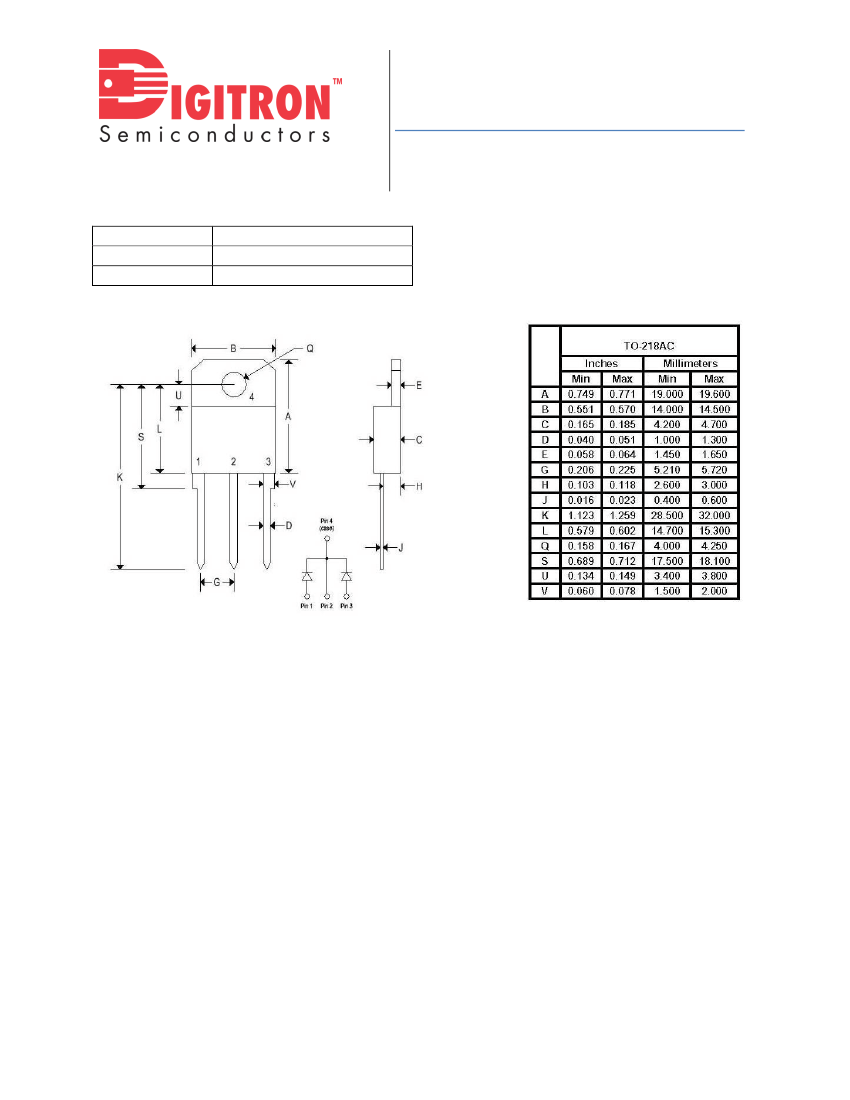

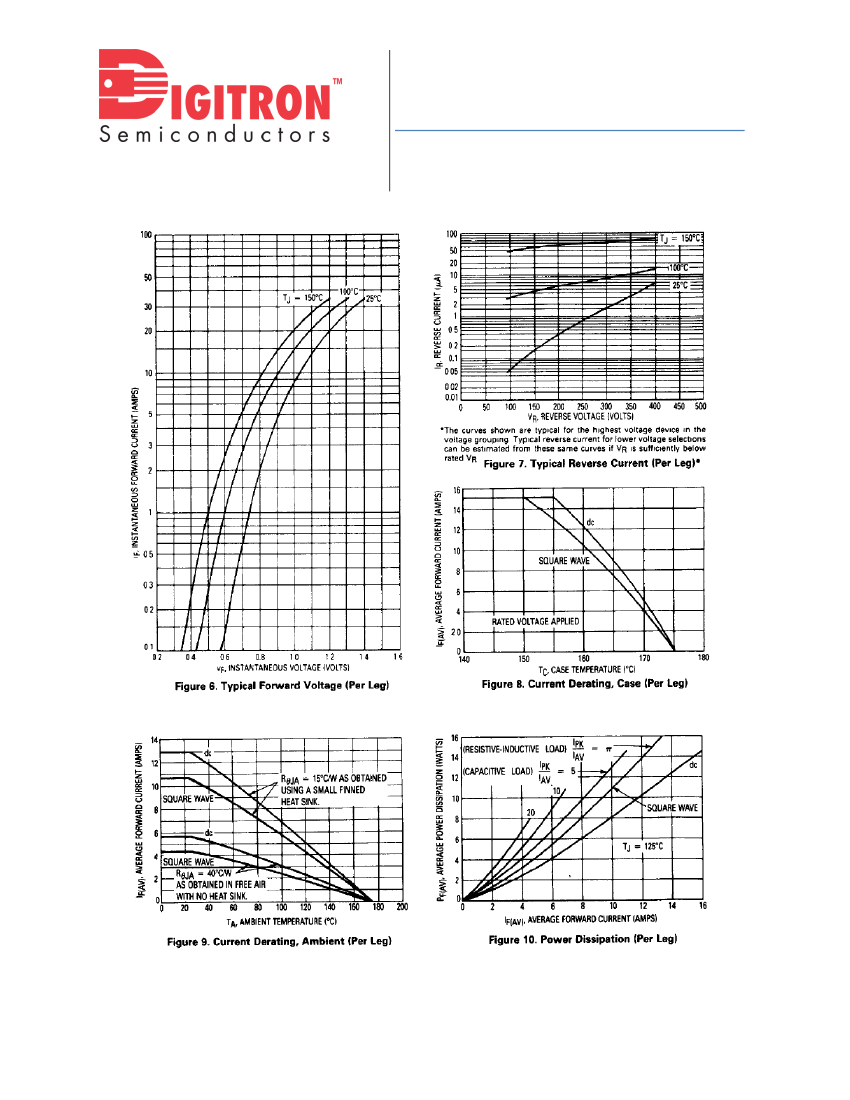

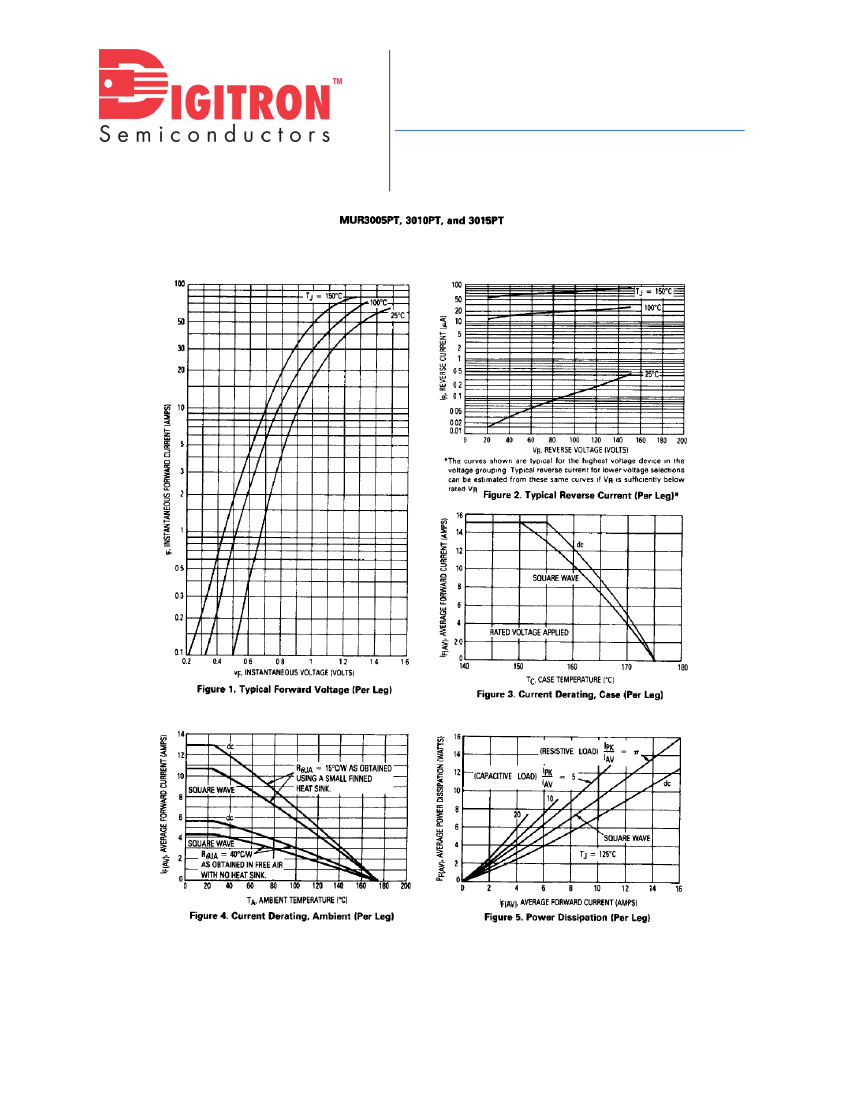

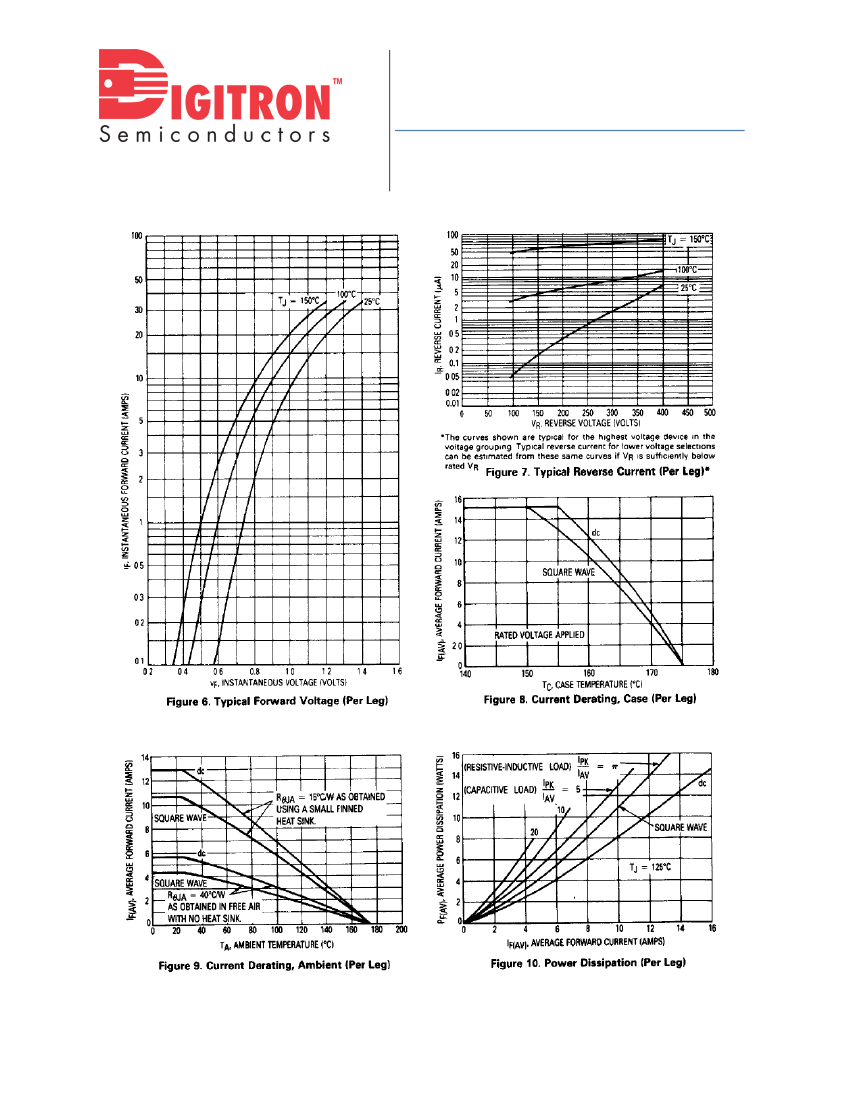

Rev. 20121210
