BSR42TA

Description
Small Signal Bipolar Transistor, 1A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon
CategoryDiscrete semiconductor    The transistor

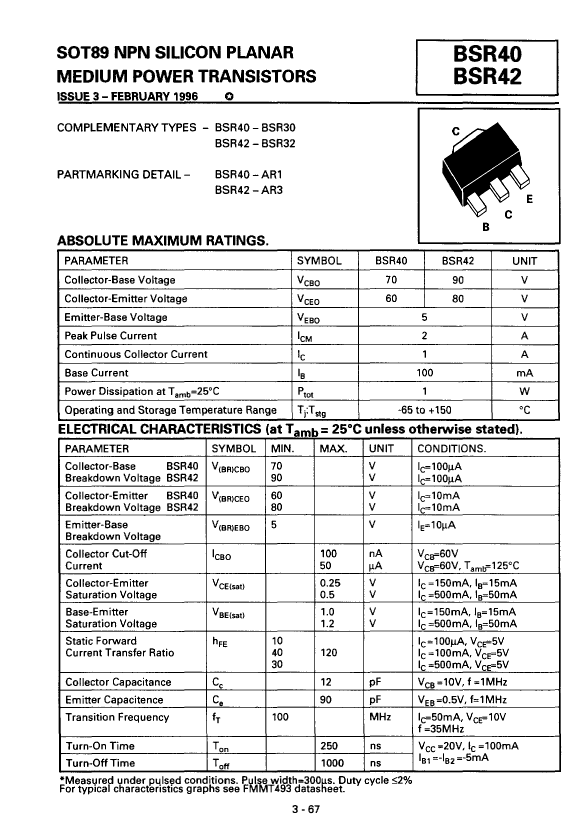

File Size45KB,1 Pages
ManufacturerZetex Semiconductors
Websitehttp://www.zetex.com/
Download Datasheet Parametric Compare View All

BSR42TA Overview

Small Signal Bipolar Transistor, 1A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon

BSR42TA Parametric

Parameter NameAttribute value
package instructionSMALL OUTLINE, R-PSSO-F3
Reach Compliance Codeunknown
ECCN codeEAR99
Shell connectionCOLLECTOR
Maximum collector current (IC)1 A
Collector-based maximum capacity12 pF
Collector-emitter maximum voltage80 V
ConfigurationSINGLE
Minimum DC current gain (hFE)30
JESD-30 codeR-PSSO-F3
Number of components1
Number of terminals3
Maximum operating temperature150 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Polarity/channel typeNPN
Certification statusNot Qualified
surface mountYES
Terminal formFLAT
Terminal locationSINGLE
transistor applicationsSWITCHING
Transistor component materialsSILICON
Nominal transition frequency (fT)100 MHz
Maximum off time (toff)1000 ns
Maximum opening time (tons)250 ns
VCEsat-Max0.5 V
Base Number Matches1

BSR42TA Related Products

BSR42TA BSR40TA
Description Small Signal Bipolar Transistor, 1A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon Small Signal Bipolar Transistor, 1A I(C), 60V V(BR)CEO, 1-Element, NPN, Silicon
package instruction SMALL OUTLINE, R-PSSO-F3 SMALL OUTLINE, R-PSSO-F3
Reach Compliance Code unknown unknown
ECCN code EAR99 EAR99
Shell connection COLLECTOR COLLECTOR
Maximum collector current (IC) 1 A 1 A
Collector-based maximum capacity 12 pF 12 pF
Collector-emitter maximum voltage 80 V 60 V
Configuration SINGLE SINGLE
Minimum DC current gain (hFE) 30 30
JESD-30 code R-PSSO-F3 R-PSSO-F3
Number of components 1 1
Number of terminals 3 3
Maximum operating temperature 150 °C 150 °C
Package body material PLASTIC/EPOXY PLASTIC/EPOXY
Package shape RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE SMALL OUTLINE
Polarity/channel type NPN NPN
Certification status Not Qualified Not Qualified
surface mount YES YES
Terminal form FLAT FLAT
Terminal location SINGLE SINGLE
transistor applications SWITCHING SWITCHING
Transistor component materials SILICON SILICON
Nominal transition frequency (fT) 100 MHz 100 MHz
Maximum off time (toff) 1000 ns 1000 ns
Maximum opening time (tons) 250 ns 250 ns
VCEsat-Max 0.5 V 0.5 V
Base Number Matches 1 1
