BYW84GP: DescriptionRectifier Diode, 1 Phase, 1 Element, 3A, 600V V(RRM), Silicon, DO-201AD, PLASTIC PACKAGE-2; CategoryDiscrete semiconductor diode; File Size134KB，2 Pages; ManufacturerGulf Semiconductor; Websitehttp://www.gulfsemi.com/

Download Datasheet Parametric Compare View All

BYW84GP Overview

Rectifier Diode, 1 Phase, 1 Element, 3A, 600V V(RRM), Silicon, DO-201AD, PLASTIC PACKAGE-2

BYW84GP Parametric

Parameter Name	Attribute value
package instruction	PLASTIC PACKAGE-2
Reach Compliance Code	unknown
ECCN code	EAR99
application	GENERAL PURPOSE
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1 V
JEDEC-95 code	DO-201AD
JESD-30 code	O-PALF-W2
Maximum non-repetitive peak forward current	100 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-65 °C
Maximum output current	3 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Maximum repetitive peak reverse voltage	600 V
Maximum reverse current	5 µA
Maximum reverse recovery time	4 µs
surface mount	NO
Terminal form	WIRE
Terminal location	AXIAL
Base Number Matches	1

Preview

Download Datasheet

View All

BYW82GP THRU BYW86GP

SINTERED GLASS JUNCTION

PLASTIC RECTIFIER

VOLTAGE:200 TO 1000V

CURRENT: 3.0A

FEATURE

High temperature metallurgically bonded construction

Sintered glass cavity free junction

Capability of meeting environmental standard of

MIL-S-19500

High temperature soldering guaranteed

350°C /10sec/0.375”lead length at 5 lbs tension

Operate at Ta

=65°C

with no thermal run away

Typical Ir<0.1µA

DO-201AD

MECHANICAL DATA

Terminal: Plated axial leads solderable per

MIL-STD 202E, method 208C

Case: Molded with UL-94 Class V-0 recognized Flame

Retardant Epoxy

Polarity: color band denotes cathode

Mounting position: any

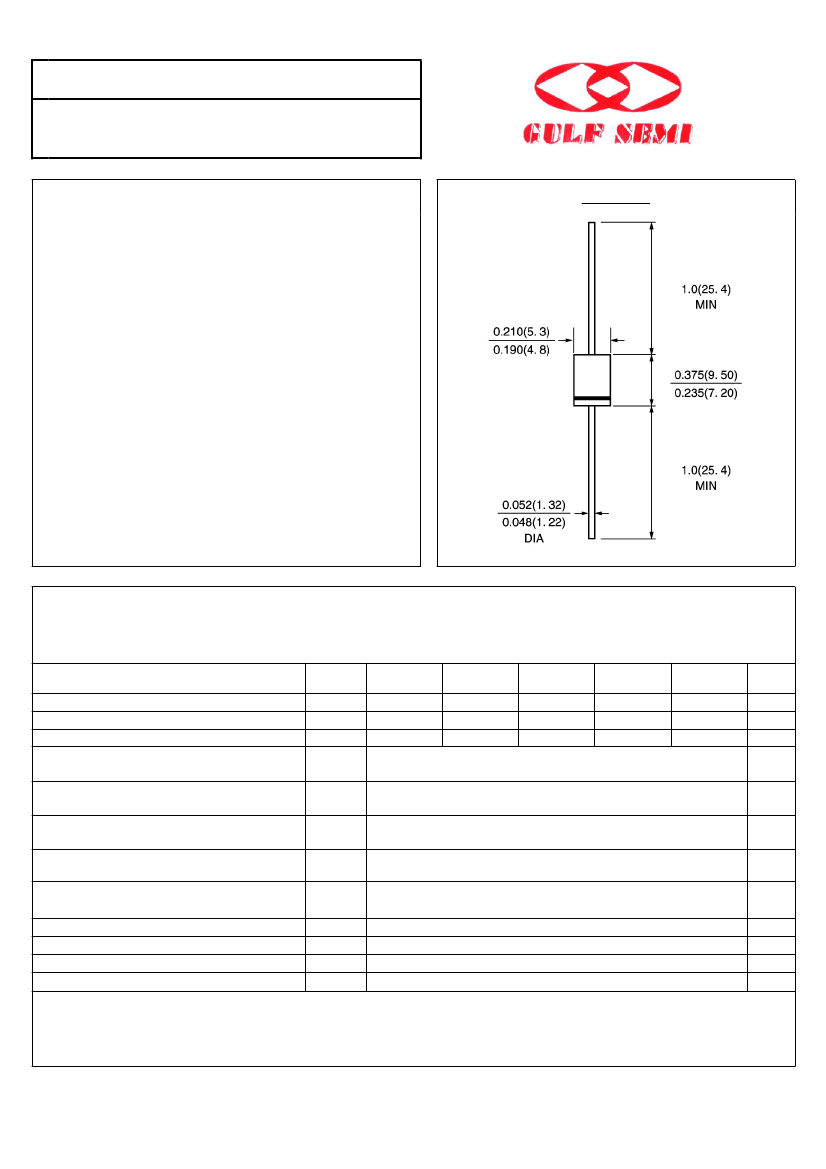

Dimensions in inches and (millimeters)

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

(single-phase, half-wave, 60HZ, resistive or inductive load rating at 25°C, unless otherwise stated,

for capacitive load, derate current by 20%)

SYMBOL

BYW

82GP

BYW

83GP

BYW

84GP

BYW

85GP

BYW

86GP

units

Maximum Recurrent Peak Reverse Voltage

Maximum RMS Voltage

Maximum DC blocking Voltage

Maximum Average Forward Rectified

Current 3/8”lead length at Ta =65

°C

Peak Forward Surge Current 8.3ms single

Half sine-wave superimposed on rated load

Maximum Instantaneous Forward Voltage

Vrrm

Vrms

Vdc

If(av)

Ifsm

200

140

200

400

280

400

600

420

600

3.0

100.0

1.0

800

560

800

1000

700

1000

=3.0A

non-repetitive peak reverse avalanche

energy

(Note 1)

Maximum DC Reverse Current

Ta =25

°C

at rated DC blocking voltage

Ta =125

°C

Typical Reverse Recovery Time

(Note 2)

Typical Junction Capacitance

Typical Thermal Resistance

(Note3)

(Note 4)

RSM

Trr

R(ja)

Tstg, Tj

5.0

100.0

4.0

100.0

20.0

-65 to +175

Storage and Operating Junction Temperature

°C

Note: 1.L = 120 mH; Tj = Tj max prior to surge; inductive load switched off.

2.Reverse Recovery Condition If

=0.5A,

Ir =1.0A, Irr =0.25A

3.Measured at 1.0 MHz and applied reverse voltage of 4.0Vdc

4. Thermal Resistance from Junction to Ambient at 3/8”lead length, P.C. Board Mounted

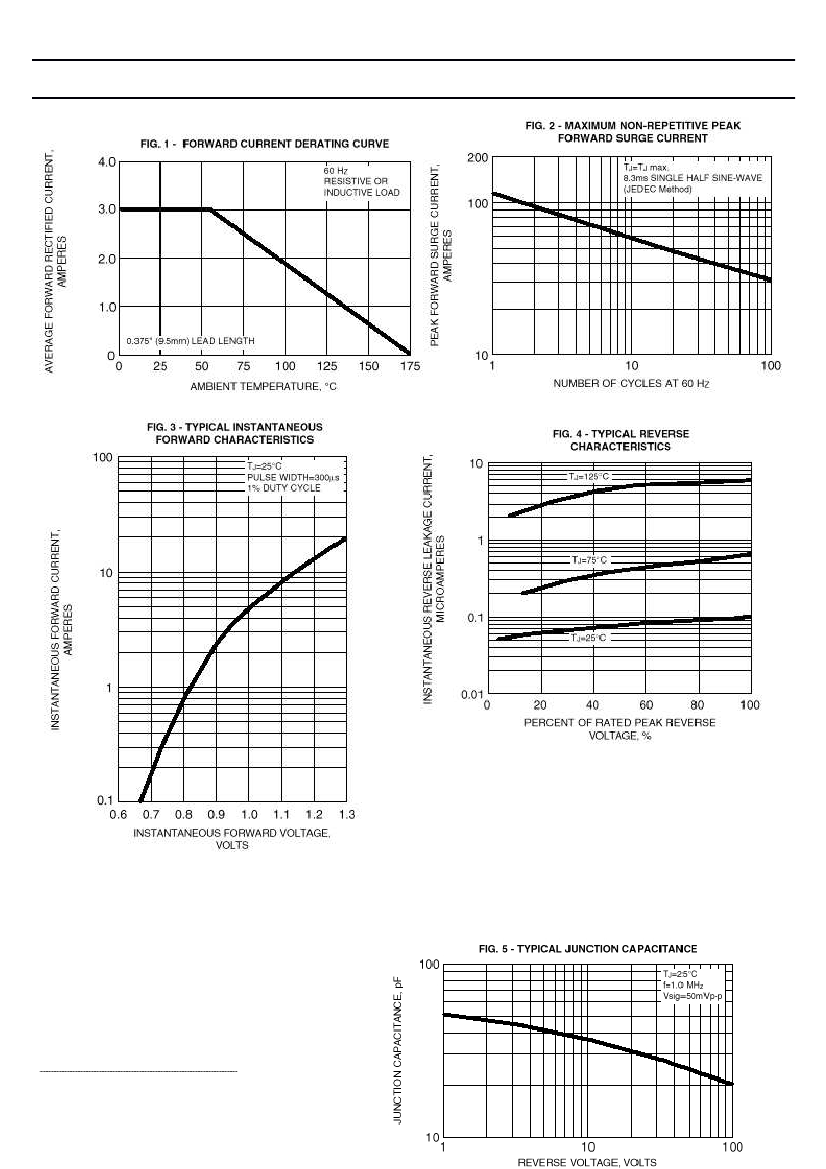

Rev.A2

www.gulfsemi.com
