SAW Components
Data Sheet B9005
SAW Components
Low Loss Filter for Mobile Communication
Data Sheet
B9005
2140,0 MHz
Chip sized SAW package
DCS6R
Features
q
Low-loss RF filter for W-CDMA mobile telephone
0,075
0,45 0,075
0,68
2,0
1,6
1
2
3
system, receive path
q
Balanced to balanced operation
q
Usable passband 60 MHz
bottom view
6
5
4
0.38
side view
Terminals
q
Ni, gold-plated
top view
Dimensions in mm, approx. weight 0,007g
Pin configuration
1, 3
4, 6
2, 5
Balanced input
Balanced output
Case ground
1
4
3
6
2,5
Type
B9005
Ordering code
B39212-B9005-E810
Marking and Package
according to
C61157-A7-A114
Packing
according to
F61074-V8152-Z000
Electrostatic Sensitive Device
(ESD)
Maximum ratings
Operable temperature range
Storage temperature range
DC voltage
ESD voltage
Input power max at
GSM850, GSM900
GSM1800, GSM1900
Tx bands
T
T
stg
V
DC
V
ESD
P
S
P
S
– 30/+ 85
– 40/+ 85
5
50*
15
12
˚C
˚C
V
V
dBm
dBm
Machine Model, 10 pulses
peak power of GSM signal,
duty cycle 4:8
* - acc. to JESD22-A115A (Machine Model), 10 negative & 10 positive pulses
2
May 19, 2004
SAW Components
Low Loss Filter for Mobile Communication
Data Sheet
Characteristics
Reference temperature:
Terminating source impedance:
Terminating load impedance:
B9005
2140,0 MHz
T
= 25 ˚C
Z
S
= 100
Ω
Z
L
= 100
Ω
min.
Center frequency
Maximum insertion attenuation
2110,0 ...2170,0
Amplitude ripple
(p-p)
2110,0 ...2170,0
typ.
2140,0
max.
—
MHz
f
c
α
max
MHz
∆α
MHz
—
—
2,0
2,2
dB
—
0,7
0,9
dB
Amplitude ripple per 5 MHz channel
(p-p)
∆α
5MHz
2110,0 ...2170,0 MHz
Output phase balance
(φ(S
out2
)−φ(S
out1
)+180˚)
2110,0 MHz ...
2170,0 MHz
Output amplitude balance
(|S
out2
/S
out1
|)
2110,0 MHz ...
2170,0
Input VSWR
2110,0 ...2170,0
Output VSWR
2110,0 ...2170,0
Attenuation
0,3
1920,0
1980,0
2400,0
...1920,0
...1980,0
...2075,0
...6000,0
MHz
MHz
MHz
MHz
MHz
α
min
MHz
—
0,3
0,4
dB/5MHz
-10
0/3
10
˚
MHz
-1,0
0 / 0,3
1,0
dB
vswr
IN
—
1,8
2,1
vswr
OUT
—
1,8
2,1
25
30
14
20
29
33
28
26
—
—
—
—
dB
dB
dB
dB
3
May 19, 2004
SAW Components
Low Loss Filter for Mobile Communication
Data Sheet
Characteristics
Reference temperature:
Terminating source impedance:
Terminating load impedance:
B9005
2140,0 MHz
T
= -10 ... 85 ˚C
Z
S
= 100
Ω
Z
L
= 100
Ω
min.
Center frequency
Maximum insertion attenuation
2110,0 ...2170,0
Amplitude ripple
(p-p)
2110,0 ...2170,0
typ.
2140,0
max.
—
MHz
f
c
α
max
MHz
∆α
MHz
—
—
2,0
2,6
dB
—
0,7
1,0
dB
Amplitude ripple per 5 MHz channel
(p-p)
∆α
5MHz
2110,0 ...2170,0 MHz
Output phase balance
(φ(S
out2
)−φ(S
out1
)+180˚)
2110,0 MHz ...
2170,0 MHz
Output amplitude balance
(|S
out2
/S
out1
|)
2110,0 MHz ...
2170,0
Input VSWR
2110,0 ...2170,0
Output VSWR
2110,0 ...2170,0
Attenuation
0,3
1920,0
1980,0
2400,0
...1920,0
...1980,0
...2075,0
...6000,0
MHz
MHz
MHz
MHz
MHz
α
min
MHz
—
0,4
0,5
dB/5MHz
-10
0/3
10
˚
MHz
-1,0
0 / 0,3
1,0
dB
vswr
IN
—
1,8
2,1
vswr
OUT
—
1,8
2,1
25
30
13
20
29
33
28
26
—
—
—
—
dB
dB
dB
dB
4
May 19, 2004
SAW Components
Low Loss Filter for Mobile Communication
Data Sheet

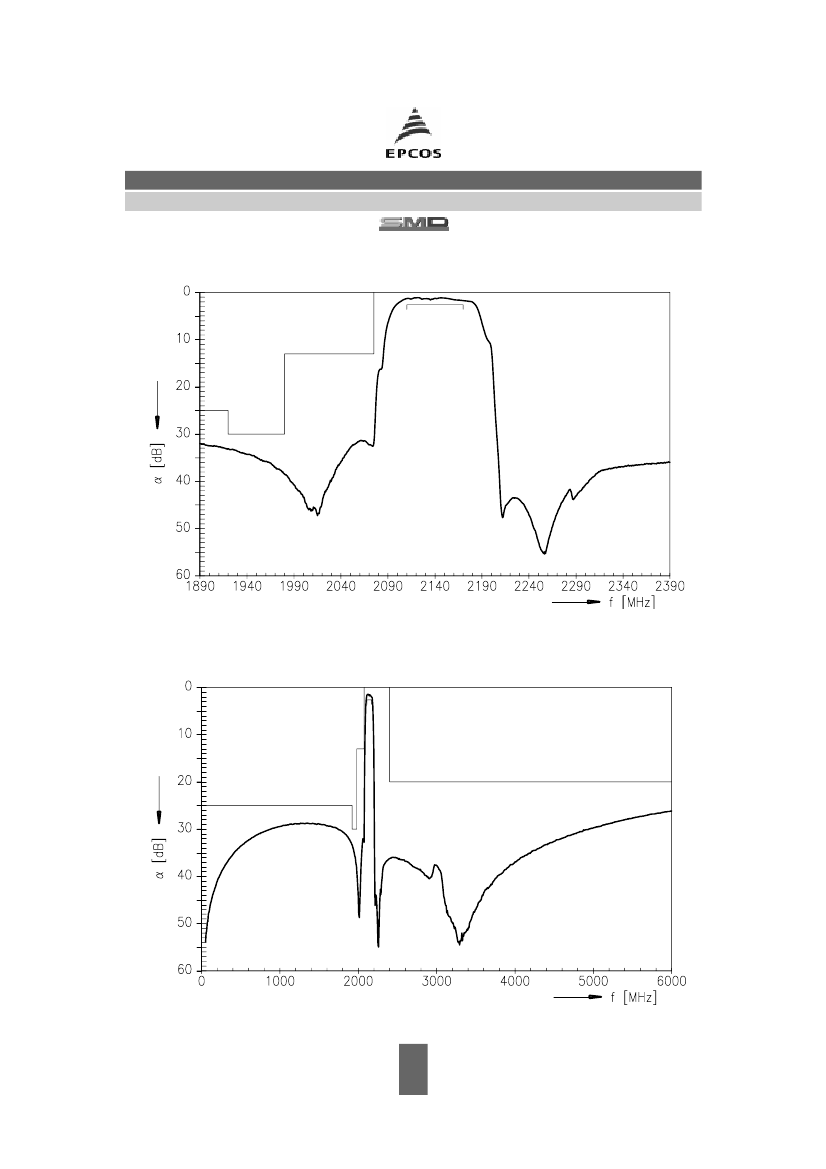

Transfer function:
B9005
2140,0 MHz
Transfer function (wideband):
5
May 19, 2004
