EMC filters
2-line filters
for converters and power electronics
Series/Type:
Date:
B84142A*R122
May 2014
© EPCOS AG 2015. Reproduction, publication and dissemination of this publication, enclosures hereto and the
information contained therein without EPCOS' prior express consent is prohibited.
EPCOS AG is a TDK Group Company.
2-line filters
for converters and power electronics
B84142A*R122
Power line filters for 1-phase systems
Rated voltage V
R
: 300 V AC/DC
Rated current I
R
: 8 A to 180 A
Construction
2-line filters
Metal case
Features
High insertion loss
Easy to install
Space-saving design
Low weight
Design complies with IEC 60939
UL and cUL approval
Typical applications
Power supplies
DC applications
Terminals
Finger-safe terminal blocks
Marking
Marking on component:
Manufacturer's logo, ordering code, rated voltage, rated
current, rated temperature, climatic category, date code,
approvals
Minimum data on packaging:
Manufacturer's logo, ordering code, quantity, date code
Typical circuit diagram
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 2 of 15
2-line filters
for converters and power electronics
B84142A*R122
Technical data and measuring conditions
Rated voltage V
R
Rated current I
R
Test voltage V
test
Overload capability (thermal)
Leakage current l
LK
Climatic category (IEC 60068-1)
Approvals
Characteristics and ordering codes
I
R
A
Terminal cross
section
mm
2
I
LK
mA
32
32
32
45
45
45
95
95
95
R
typ
mΩ
15
9
5
4
3
1.5
1.1
0.7
0.5
Approx.
weight
kg
0.7
1.1
1.7
1.9
1.9
2.6
5.0
8.0
8.0
Ordering code
Approvals
300 V AC (50/60 Hz) / 300 V DC
Referred to 50
°C
rated temperature
1700 V DC, 2 s (line/line)
3000 V DC, 2 s (lines/case)
1.5 I
R
for 3 min per hour or
2.5 I
R
for 30 s per hour
At V
R
and 50 Hz
25/100/21 ( 25
°C/+100 °C/21
days damp heat test)
UL 1283, CSA C22.2 No.8
V
R
= 300 V AC/DC
8
4
16
4
30
10
42
10
55
10
75
16
100
35
130
50
180
95
×
= Approval granted
B84142A0008R122
B84142A0016R122
B84142A0030R122
B84142A0042R122
B84142A0055R122
B84142A0075R122
B84142A0100R122
B84142A0130R122
B84142A0180R122
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 3 of 15
2-line filters
for converters and power electronics
B84142A*R122

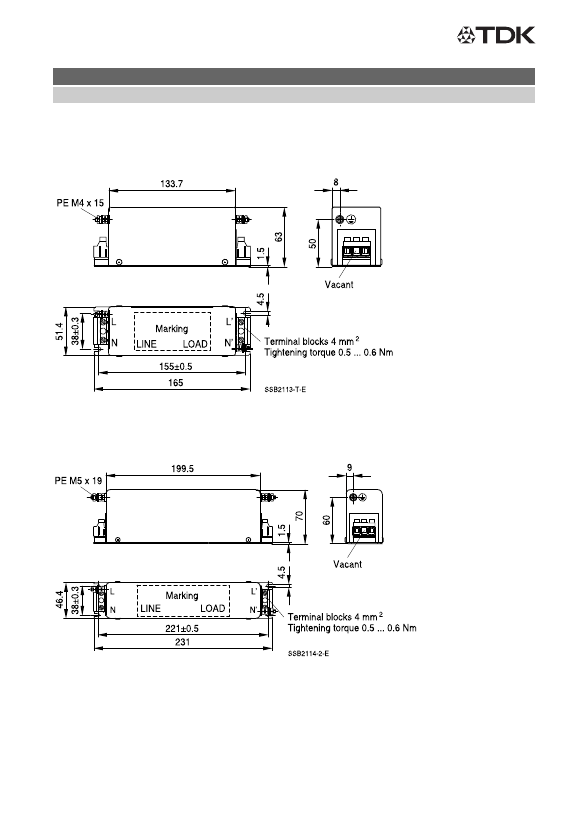

Dimensional drawings
B84142A0008R122 (8 A)
General tolerances according to ISO 2768 cL
Dimensions in mm
B84142A0016R122 (16 A)
General tolerances according to ISO 2768 cL
Dimensions in mm
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 4 of 15
2-line filters
for converters and power electronics
B84142A*R122

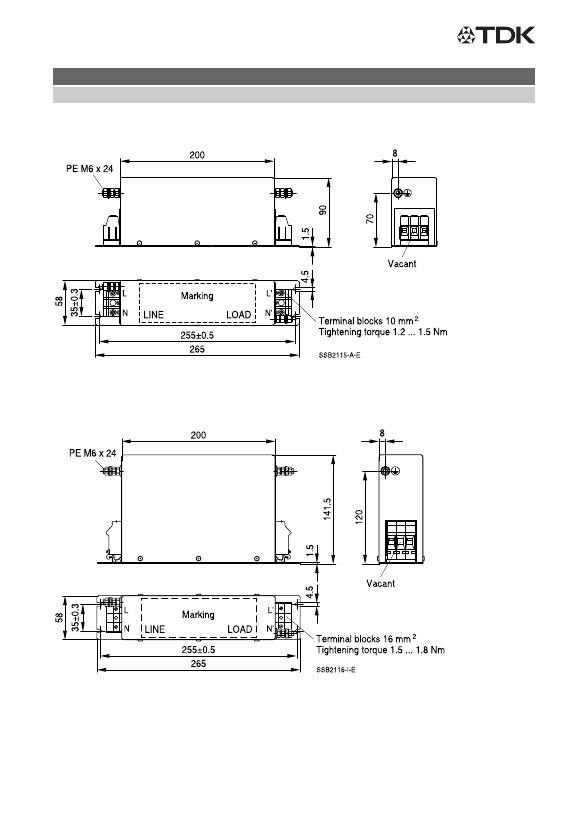

B84142A0030R122 ... B84142A0055R122 (30 A, 42 A, 55 A)
General tolerances according to ISO 2768 cL
Dimensions in mm
B84142A0075R122 (75 A)
General tolerances according to ISO 2768 cL
Dimensions in mm
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 5 of 15
