824 Series
1 Hz to 102.4 kHz
8-Bit Programmable
Description
2" x 2"
4-Pole Filters

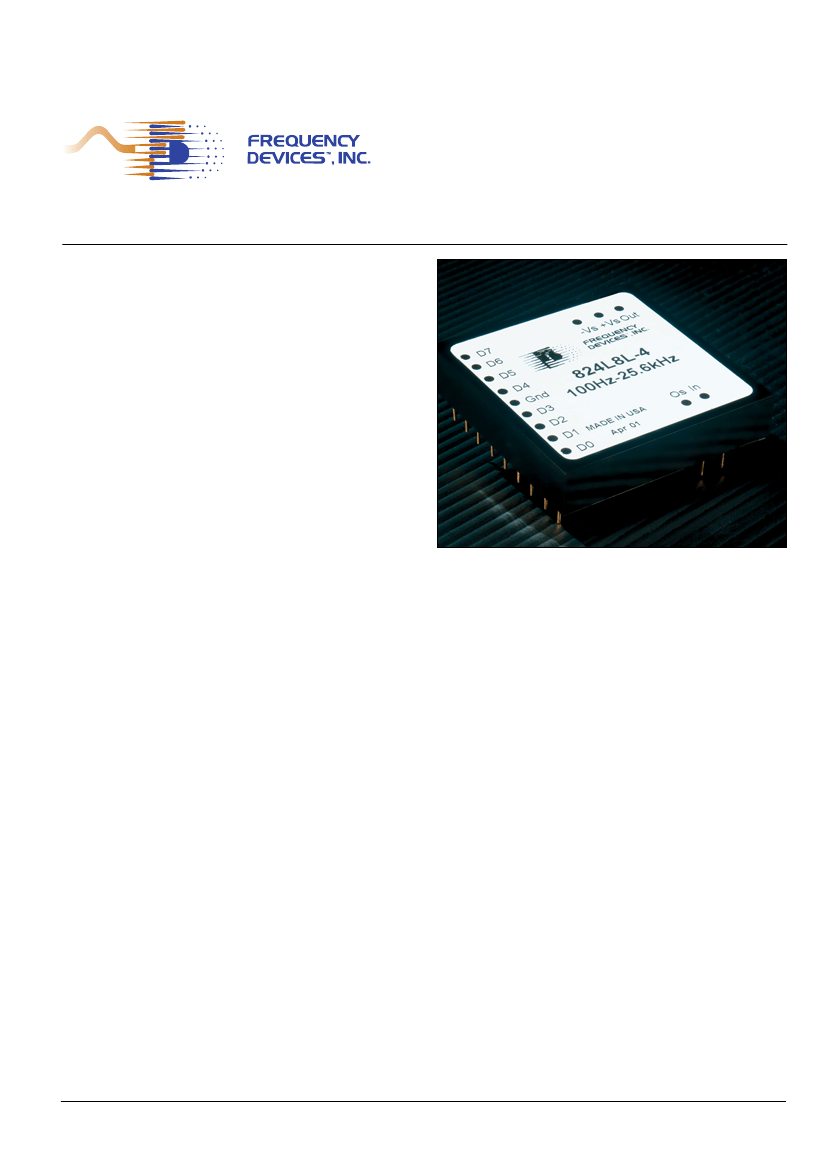

The 824 Series are digitally programmable low pass
and high pass active filters that are tunable over a
256:1 frequency range. 824 filters are available
with any one of five standard factory-set tuning
ranges up to 102.4 kHz. These units contain 8
CMOS logic inputs .
All 824 Series models are convenient, low profile,
easy to use fully finished filters which require no ex-
ternal components or adjustments. They feature low
harmonic distortion, and near theoretical phase and
amplitude characteristics. 824 filters operate from
non-critical ± 12 to ± 18 Vdc power supplies, have a
10 kW (min.) input impedance, a 10
W
(max.) output.
Features/Benefits:
• Compact 2" x 2" design minimizes board space
requirements.
• Digitally programmable corner frequency allows
selecting cut-off frequencies specific to each appli-
cation.
• Plug-in ready-to-use, reducing engineering de-
sign and manufacturing cycle time.
• Factory-set tuning range, no external clocks or
adjustments needed.
• Broad range of transfer characteristics and corner
frequencies to meet a wide range of applications.
Applications
Programmable Specifications.
. . . . . . . . . . . . .
Page
Digital Tuning & Control . . . . . . . . . . . . . . . . . . . . . . 2
Available Low-Pass Models:
. . . . . . . . . . . . . . . . . . .
824L8B 4-pole Butterworth . . . . . . . . . . . . . . . . . . 3
824L8L
4-pole Bessel . . . . . . . . . . . . . . . . . . . . . . 3
824L8Y2 4-pole Cheby (0.2 dB Ripple) . . . . . . . . . . 3
824L8Y5 4-pole Cheby (0.5 dB Ripple) . . . . . . . . . . 3
Available High-Pass Models:
. . . . . . . . . . . . . . . . . .
824H8B 4-pole Butterworth . . . . . . . . . . . . . . . . . . 4
824H8Y2 4-pole Cheby (0.2 dB Ripple) . . . . . . . . . . 4
824H8Y5 4-pole Cheby (0.5 dB Ripple) . . . . . . . . . . 4
General Specifications:
Ordering information . . . . . . . . . . . . . . . . . . . . . . . . . 5
Pin-out/package data. . . . . . . . . . . . . . . . . . . . . . . . . 5
• Anti-alias filtering
• Data acquisition systems
• Communication systems and electronics
• Medical electronics equipment and research
• Aerospace, navigation and sonar applications
• Sound and vibration testing
• Real and compressed time data analysis
• Noise elimination
• Signal reconstruction
1784 Chessie Lane, Ottawa, IL 61350 • Tel: 800/252-7074, 815/434-7800 • FAX: 815/434-8176
e-mail: sales@freqdev.com • Web Address: http://www.freqdev.com
824 Series
8-Bit Programmable Filters
Digital Tuning Characteristics
The digital tuning interface circuits are a parallel set of eight (8)
4053 CMOS switches which accept CMOS compatible inputs
for the eight tuning bits (D
0
- D
7
).
Filter tuning follows the tuning equation given below:
f
c
= ( f
max
/256 ) [ 1 + D
7
x 2
7
+ D
6
x 2
6
+ D
5
x 2
5
+ D
4
x 2
4
+ D
3
x 2
3
+ D
2
x 2
2
+ D
1
x 2
1
+ D
0
x 2
0
]
where D
1
- D
7
= "0" or "1", and
f
max
= Maximum tuning frequency;
f
c
= corner frequency;
Minimum tunable frequency = f
max
/256 (D
0
thru D
7
= 0);
Minimum frequency step (Resolution) = f
max
/256
OUT +Vs -Vs
D
7
D
6
D
5
D
4
2.00
GND
D
3
D
2
Digital Tuning &
Control Characteristics
Pin-Out Key
IN
OUT
GND
+Vs
-Vs
Os
Analog Input Signal
Analog Output Signal
Power and Signal Return
Supply Voltage, Positive
Supply Voltage, Negative
Offset Adjustment
D
7
Tuning
D
6
Tuning
D
5
Tuning
D
4
Tuning
D
3
Tuning
D
2
Tuning
D
1
Tuning
D
0
Tuning
Bit
Bit
Bit
Bit
Bit
Bit
Bit
Bit
7 (MSB)
6
5
4
3
2
1
0 (LSB)
Data Input Specifications
Input Data Levels
(CMOS Logic)
4 Vdc max.
15 Vdc max.
-1
mA
max.
.
+1
mA
max.
7.5 pF max.
MSB
2
7
D
7
0
0
0
0
0
0
0
0
1
Input Voltage (Vs = 15 Vdc)
Low Level In
0 Vdc min.
High Level In
11 Vdc min.
Input Current
High Level In
Low Level In
Input Capacitance
Input Data Format
Positive Logic
Bit Weighting
D
0
D
7
Frequency Range
- 10
-5
mA
typ.
+10
-5
mA
typ
.
5 pF typ
D
1
D
0
IN Os
4
Bottom View
---
2
6
D
6
0
0
0
0
0
0
0
1
1
---
2
5
D
5
0
0
0
0
0
0
1
1
1
---
2
4
D
4
0
0
0
0
0
1
1
1
1
---
2
3
D
3
0
0
0
0
1
1
1
1
1
---
2
2
D
2
0
0
0
1
1
1
1
1
1
---
2
1
D
1
0
0
1
1
1
1
1
1
1
LSB
2
0
D
0
0
1
1
1
1
1
1
1
1
Bit
Weight
fc
Corner
Frequency
Frequency Select Bits
Logic "1" = +Vs
Logic "0" = Gnd
(Binary-Coded)
LSB (least significant bit)
MSB (most significant bit)
256 : 1, Binary Weighted
f
max
/256
f
max
/128
f
max
/64
f
max
/32
f
max
/16
f
max
/8
f
max
/4
f
max
/2
fmax
2
1784 Chessie Lane, Ottawa, IL 61350 • Tel: 800/252-7074, 815/434-7800 • FAX: 815/434-8176
e-mail: sales@freqdev.com • Web Address: http://www.freqdev.com
824 Series
Specification
(25°C and Vs ± 15 Vdc)
Analog Input Characteristics
1
Impedance
Voltage Range
Max. Safe Voltage
Analog Output Characteristics
Impedance (Closed Loop)
Linear Operating Range
Maximum Current
2
Offset Voltage
3
Offset Temp. Coeff.
Power Supply (
±
V)
Rated Voltage
Operating Range
Maximum Safe Voltage
Quiescent Current
4-Pole
10 k
W
min.
±
10 Vpeak
±
Vs
0.5 0.4
Pin-Out and Package Data
Ordering Information
Pin-Out & Package Data
2.00
G-3
G-1
0.15 min.
0.025 Dia.
11
W
typ.
10
W
max.
±
10V
±
2 mA
22
mV typ.
20 mV max.
50
mV/°C
Side View
All dimensions are in inches
All Case Dimensions ± 0.02"
OUT +Vs -Vs
Grid Dimensions 0.1" x 0.1"
D
7
D
6
D
5
D
4
2.00
GND
D
3
D
2
D
1
D
0
±
15 Vdc
±
12 to
±
18 Vdc
±
18 Vdc
±
13 mA typ.
±
20 mA max.
-20
to +70°C
-25 to +85°C
Temperature
Operating
Storage
Notes:
IN Os
4
Bottom View
Filter Mounting Assembly-See FMA-02A
1. Input and output signal voltage referenced to supply common.
2. Output is short circuit protected to common.
DO NOT CONNECT TO ±Vs.
3. Adjustable to zero.
4. Units operate with or without offset pin connected.
Ordering Information
Filter Type
L
- Low Pass
H
- High Pass
Transfer Function
B
- Butterworth
L
- Bessel
Y2
- Chebychev
(0.2 dB Ripple)
Y5
- Chebychev
(0.5 dB Ripple)
DC Offset Adjustment
± Vs
Do not connect
if trim is not
required.
20 k
W
(Cermet)
OS
824L8B-3
Model Number
e.g.,
Model
- Vs
Number
2
3
4
5
6
Tuning
Range (Hz)
1.0 to 256
10 to 2560
100 to 25.6k
200 to 51.2k
400 to 102.4k
Minimum
Step(Hz)
1.0
10
100
200
400
Case
G-3
G-1
G-1
G-1
G-1
