SMD-Type Inductors and Choke Coils
Leadless Power Inductors
PLFC 0745P-A Series
2
SMD-Type Inductors and Choke Coils
• Tape and Reel Dimensions (see page 98)
• Precautions (see page 102)
Model
PLFC0745P-3R3A
PLFC0745P-4R7A
PLFC0745P-5R6A
PLFC0745P-6R8A
PLFC0745P-8R2A
PLFC0745P-100A
PLFC0745P-120A
PLFC0745P-150A
PLFC0745P-180A
PLFC0745P-220A
PLFC0745P-330A
PLFC0745P-470A
PLFC0745P-560A
PLFC0745P-680A
PLFC0745P-820A
PLFC0745P-101A
PLFC0745P-121A
PLFC0745P-151A
PLFC0745P-181A
PLFC0745P-221A
PLFC0745P-331A
PLFC0745P-471A
Inductance
L (µH) at 100kHz
3.3±30%
4.7±30%
5.6±30%
6.8±30%
8.2±30%
10.0±20%
12.0±20%
15.0±20%
18.0±20%
22.0±20%
33.0±20%
47.0±20%
56.0±20%
68.0±20%
82.0±20%
100.0±20%
120.0±20%
150.0±20%
180.0±20%
220.0±20%
330.0±20%
470.0±20%
DC resistance
Rdc (m ) max.
22
34
38
40
70
80
90
107
113
135
200
262
288
478
535
594
685
823
904
1200
2100
2600
Irms*1
4.8
4.0
3.8
3.6
2.8
2.6
2.4
2.2
2.1
1.9
1.7
1.5
1.4
1.3
1.1
1.0
0.9
0.8
0.7
0.6
0.5
0.4
Rated current (A)
Isat (Ref.)*2
at 20˚C
at 100˚C
5.9
3.8
5.0
3.7
4.9
3.6
4.4
3.1
3.8
2.7
3.3
2.4
3.2
2.3
2.8
2.0
2.6
1.9
2.3
1.7
1.9
1.3
1.6
1.2
1.4
1.0
1.3
0.95
1.2
0.9
1.1
0.8
1.0
0.7
0.9
0.65
0.8
0.6
0.7
0.5
0.6
0.4
0.5
0.3
1. 40˚C rise typ. at Irms 2. Inductance drop 20% typ. at Isat
• Operating temperature range: –25 to +80˚C (Without self-temperature rise)
• Storage temperature range: –25 to +85˚C

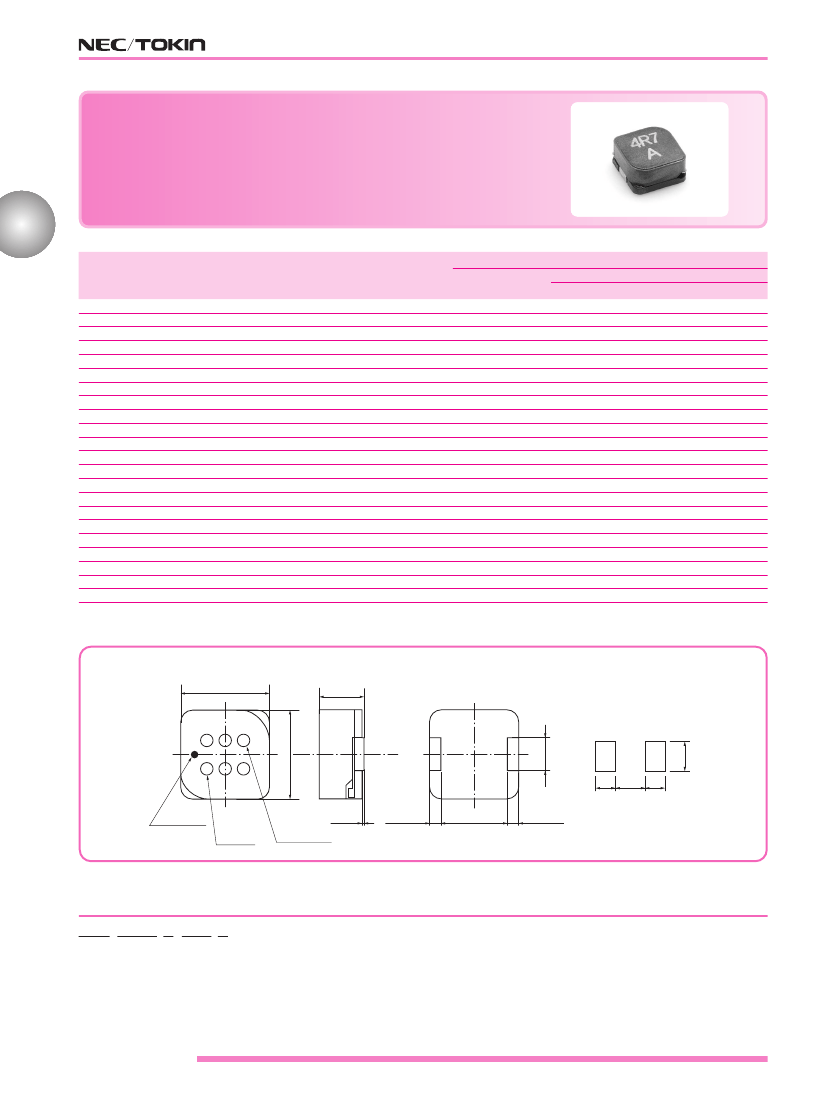

Shape and Dimensions/Recommended Land Pattern
7.5±0.5
4.5 max
7.5±0.5
2.0±0.2
1.6
Dot mark
Lot No.
Inductance
(0.2)
1.0±0.3
(5.5)
1.0±0.3
5.5
1.6
2.3
[mm]
Numbering System
PLFC
-
Series
Dimensions : 0745 = 7.5mm 7.5mm 4.5mm
Structure : P = Pot + Rivet
Inductance
Core material
EMC GENERAL VOL.02
42
SMD-Type Inductors and Choke Coils

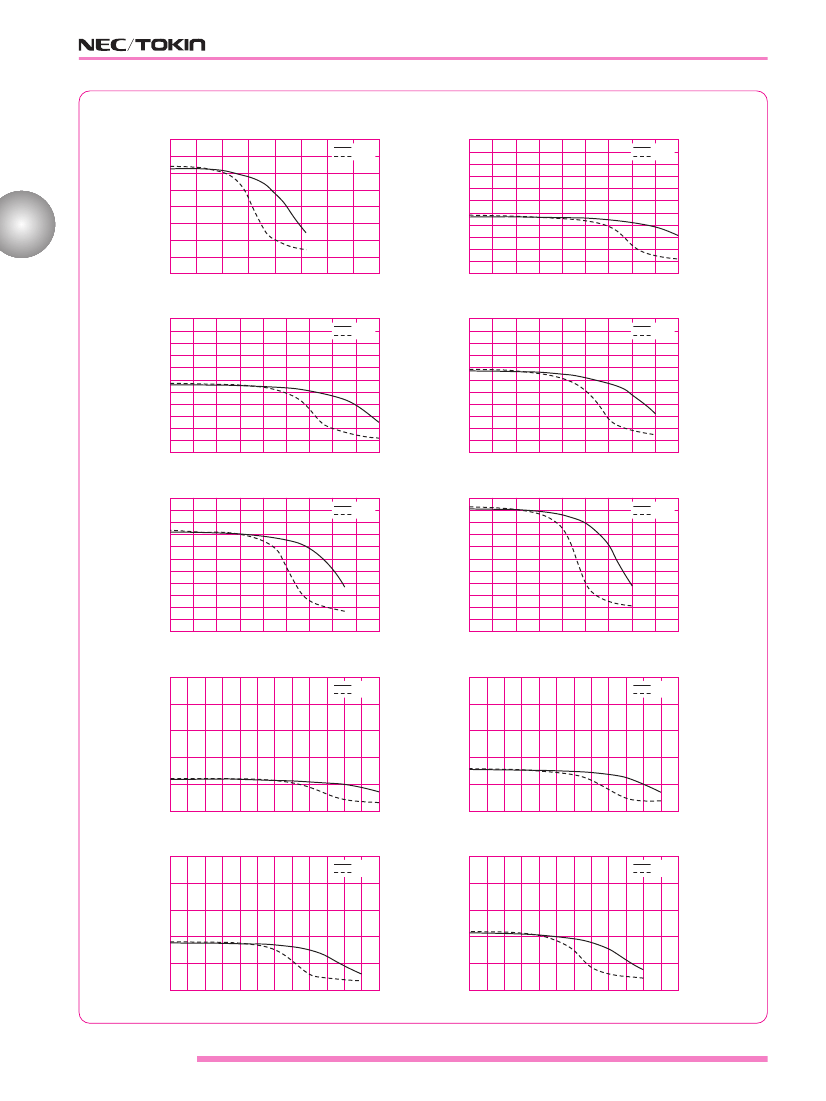

DC-Superposed Characteristics
12
11
10
9
8
7
6
5
4
3
2
1
0
0
1
2
3
4
5
6
7
PLFC0745P-3R3A
20˚C
100˚C
12
11
10
9
8
7
6
5
4
3
2
1
PLFC0745P-4R7A
20˚C
100˚C
Inductance ( H)
Inductance ( H)
2
SMD-Type Inductors and Choke Coils
0
1
2
3
4
5
6
7
0
Idc (A)
12
11
10
9
8
7
6
5
4
3
2
1
0
0
1
2
3
4
5
6
7
Idc (A)
12
20˚C
100˚C
11
10
9
8
7
6
5
4
3
2
1
0
0
1
2
3
4
5
6
7
PLFC0745P-5R6A
PLFC0745P-6R8A
20˚C
100˚C
Inductance ( H)
Idc (A)
12
11
10
9
8
7
6
5
4
3
2
1
0
0
1
2
3
4
5
6
7
Inductance ( H)
Idc (A)
12
20˚C
100˚C
11
10
9
8
7
6
5
4
3
2
1
0
0
1
2
3
4
5
6
7
PLFC0745P-8R2A
PLFC0745P-100A
20˚C
100˚C
Inductance ( H)
Inductance ( H)
Idc (A)
40
35
Idc (A)
40
20˚C
100˚C
35
PLFC0745P-120A
PLFC0745P-150A
20˚C
100˚C
Inductance ( H)
25
20
15
10
5
0
0
0.5
1
1.5
2
2.5
3
3.5
4
Inductance ( H)
30
30
25
20
15
10
5
0
0
0.5
1
1.5
2
2.5
3
3.5
4
Idc (A)
40
35
Idc (A)
40
20˚C
100˚C
35
PLFC0745P-180A
PLFC0745P-220A
20˚C
100˚C
Inductance ( H)
25
20
15
10
5
0
0
0.5
1
1.5
2
2.5
3
3.5
4
Inductance ( H)
30
30
25
20
15
10
5
0
0
0.5
1
1.5
2
2.5
3
3.5
4
Idc (A)
Idc (A)
EMC GENERAL VOL.02
43
SMD-Type Inductors and Choke Coils

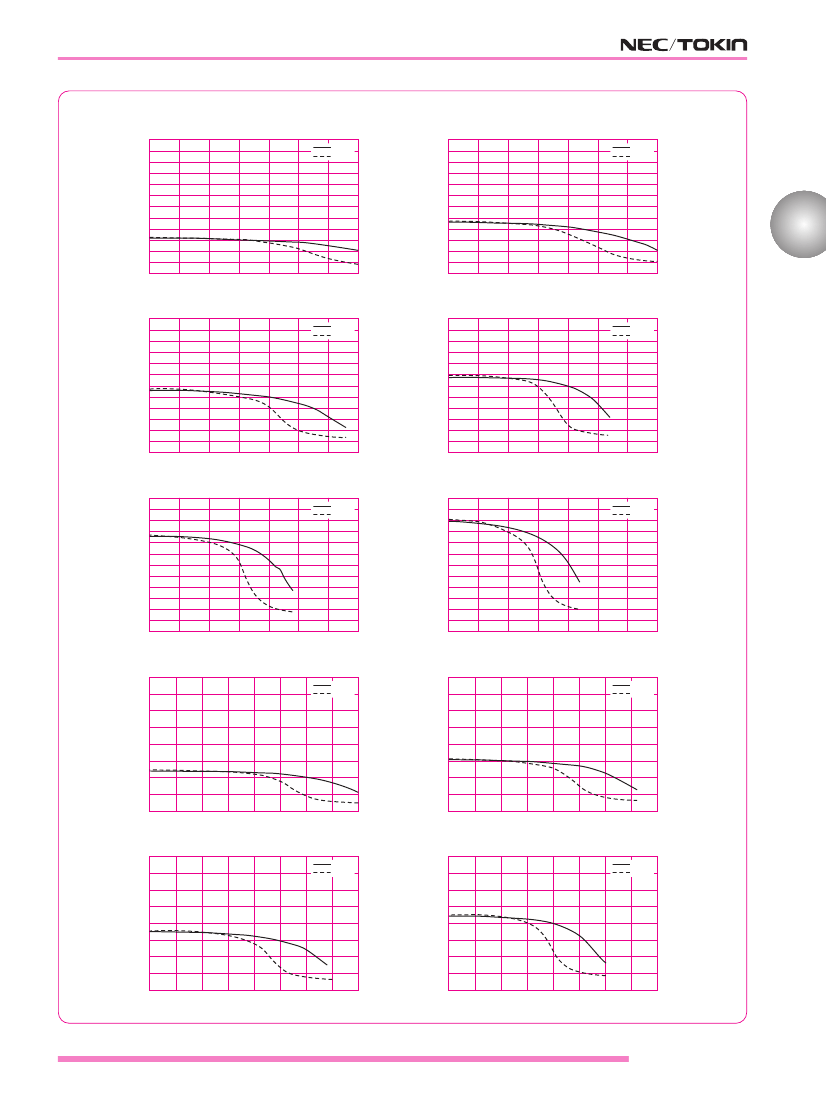

DC-Superposed Characteristics
40
35
PLFC0745P-330A
20˚C
100˚C
110
100
90
PLFC0745P-470A
20˚C
100˚C
Inductance ( H)
Inductance ( H)
0
0.5
1
1.5
2
2.5
3
3.5
4
30
25
20
15
10
5
80
70
60
50
40
30
20
10
0
0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
2
SMD-Type Inductors and Choke Coils
0
Idc (A)
110
100
90
Idc (A)
110
20˚C
100˚C
100
90
PLFC0745P-560A
PLFC0745P-680A
20˚C
100˚C
Inductance ( H)
80
70
60
50
40
30
20
10
0
0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
Inductance ( H)
80
70
60
50
40
30
20
10
0
0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
Idc (A)
110
100
90
Idc (A)
110
20˚C
100˚C
100
90
PLFC0745P-820A
PLFC0745P-101A
20˚C
100˚C
Inductance ( H)
Inductance ( H)
0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
80
70
60
50
40
30
20
10
0
80
70
60
50
40
30
20
10
0
0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
Idc (A)
500
Idc (A)
500
20˚C
100˚C
PLFC0745P-121A
PLFC0745P-151A
20˚C
100˚C
400
400
Inductance ( H)
300
Inductance ( H)
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
1.1
1.2
300
200
200
100
100
0
0
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
1.1
1.2
Idc (A)
500
Idc (A)
500
20˚C
100˚C
PLFC0745P-181A
PLFC0745P-221A
20˚C
100˚C
400
400
Inductance ( H)
300
Inductance ( H)
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
1.1
1.2
300
200
200
100
100
0
0
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
1.1
1.2
Idc (A)
Idc (A)
EMC GENERAL VOL.02
44
SMD-Type Inductors and Choke Coils
DC-Superposed Characteristics
500
PLFC0745P-331A
20˚C
100˚C
500
PLFC0745P-471A
20˚C
100˚C
400
400
Inductance ( H)
300
Inductance ( H)
300
200
200
100
100
2
SMD-Type Inductors and Choke Coils
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
1.1
1.2
0
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
1.1
1.2
0
Idc (A)
Idc (A)
EMC GENERAL VOL.02
45
