D25A8 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> D25A8

D25A8: DescriptionTrans Voltage Suppressor Diode, 25000W, Unidirectional, 1 Element, Silicon, DO-5; CategoryDiscrete semiconductor diode; File Size50KB，1 Pages; ManufacturerBaneasa SA

Download Datasheet Parametric Compare View All

D25A8 Overview

Trans Voltage Suppressor Diode, 25000W, Unidirectional, 1 Element, Silicon, DO-5

D25A8 Parametric

Parameter Name	Attribute value
package instruction	O-MUPM-D1
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum breakdown voltage	1400 V
Minimum breakdown voltage	950 V
Shell connection	CATHODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 code	DO-5
JESD-30 code	O-MUPM-D1
Maximum non-repetitive peak reverse power dissipation	25000 W
Number of components	1
Number of terminals	1
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
polarity	UNIDIRECTIONAL
Certification status	Not Qualified
surface mount	NO
technology	AVALANCHE
Terminal form	SOLDER LUG
Terminal location	UPPER
Base Number Matches	1

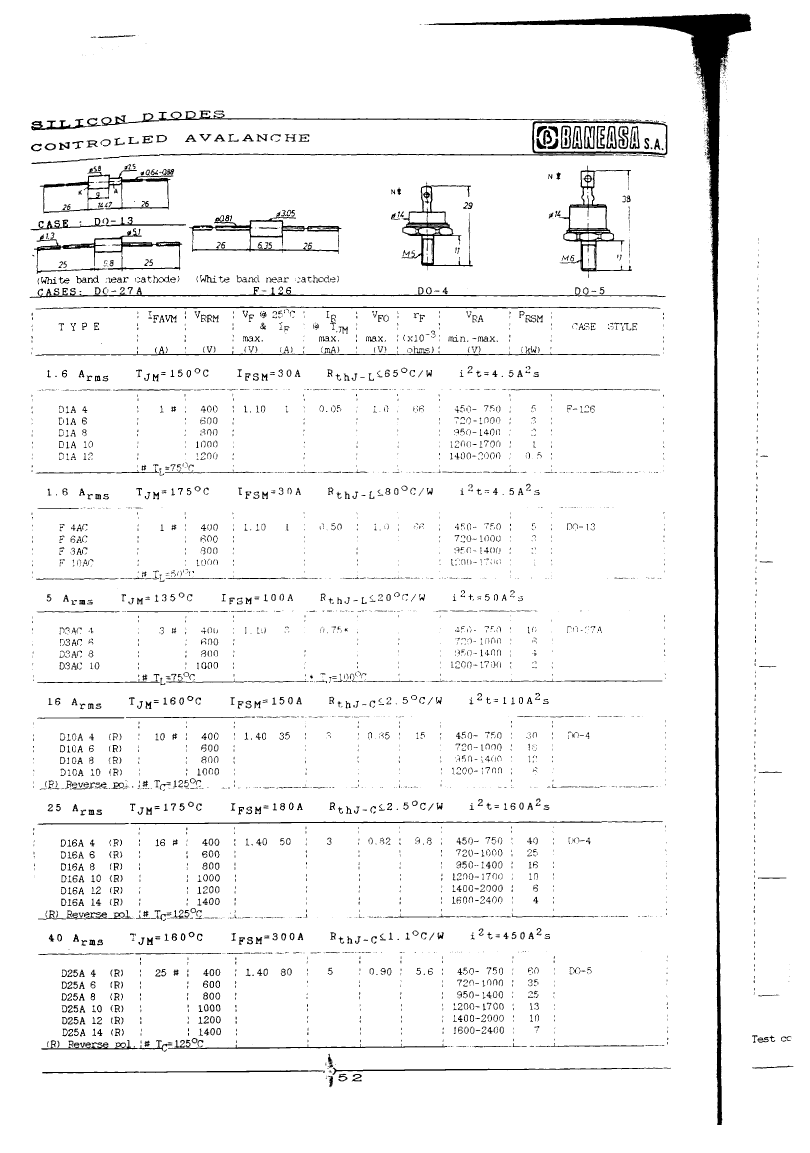

Preview

Download Datasheet

View All

D25A8 Related Products

	D25A8	D3AC6	D3AC8	D25A10	D3AC4	D3AC10
Description	Trans Voltage Suppressor Diode, 25000W, Unidirectional, 1 Element, Silicon, DO-5	Trans Voltage Suppressor Diode, 6000W, Unidirectional, 1 Element, Silicon, DO-27, DO-27A, 2 PIN	Trans Voltage Suppressor Diode, 4000W, Unidirectional, 1 Element, Silicon, DO-27, DO-27A, 2 PIN	Trans Voltage Suppressor Diode, 13000W, Unidirectional, 1 Element, Silicon, DO-5	Trans Voltage Suppressor Diode, 10000W, Unidirectional, 1 Element, Silicon, DO-27, DO-27A, 2 PIN	Trans Voltage Suppressor Diode, 2000W, Unidirectional, 1 Element, Silicon, DO-27, DO-27A, 2 PIN
package instruction	O-MUPM-D1	O-PALF-W2	O-PALF-W2	O-MUPM-D1	O-PALF-W2	O-PALF-W2
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum breakdown voltage	1400 V	1000 V	1400 V	1700 V	750 V	1700 V
Minimum breakdown voltage	950 V	720 V	950 V	1200 V	450 V	1200 V
Shell connection	CATHODE	ISOLATED	ISOLATED	CATHODE	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 code	DO-5	DO-27	DO-27	DO-5	DO-27	DO-27
JESD-30 code	O-MUPM-D1	O-PALF-W2	O-PALF-W2	O-MUPM-D1	O-PALF-W2	O-PALF-W2
Maximum non-repetitive peak reverse power dissipation	25000 W	6000 W	4000 W	13000 W	10000 W	2000 W
Number of components	1	1	1	1	1	1
Number of terminals	1	2	2	1	2	2
Package body material	METAL	PLASTIC/EPOXY	PLASTIC/EPOXY	METAL	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	POST/STUD MOUNT	LONG FORM	LONG FORM	POST/STUD MOUNT	LONG FORM	LONG FORM
polarity	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO
technology	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE
Terminal form	SOLDER LUG	WIRE	WIRE	SOLDER LUG	WIRE	WIRE
Terminal location	UPPER	AXIAL	AXIAL	UPPER	AXIAL	AXIAL
Parts packaging code	-	DO-27	DO-27	-	DO-27	DO-27
Contacts	-	2	2	-	2	2
Maker	-	-	Baneasa SA	Baneasa SA	Baneasa SA	Baneasa SA
