B82473A1224K000

Description
1 ELEMENT, 220uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD, ROHS COMPLIANT
CategoryPassive components    inductor
File Size560KB，7 Pages
ManufacturerEPCOS (TDK)
Environmental Compliance
Download Datasheet Parametric Compare View All

B82473A1224K000 Online Shopping

Suppliers Part Number Price MOQ In stock
B82473A1224K000 - - View Buy Now

B82473A1224K000 Overview

1 ELEMENT, 220uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD, ROHS COMPLIANT

B82473A1224K000 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
package instruction3330
Reach Compliance Codecompliant
ECCN codeEAR99
uppercase and lowercase codes3330
structureRectangular
core materialFERRITE
DC Resistance0.96 Ω
Nominal inductance(L)220 µH
Inductor ApplicationsPOWER INDUCTOR
Inductor typeGENERAL PURPOSE INDUCTOR
JESD-609 codee3
Number of functions1
Number of terminals2
Maximum operating temperature150 °C
Minimum operating temperature-55 °C
Package height5.5 mm
Package length8.3 mm
Package formSMT
Package width7.5 mm
method of packingTR, Blister, 13 Inch
Maximum rated current0.49 A
Shape/Size DescriptionRECTANGULAR PACKAGE
shieldNO
surface mountYES
Terminal surfaceTin (Sn)
Terminal locationDUAL ENDED
Terminal shapeWRAPAROUND
Test frequency0.1 MHz
Tolerance10%
Base Number Matches1

Preview

Download Datasheet

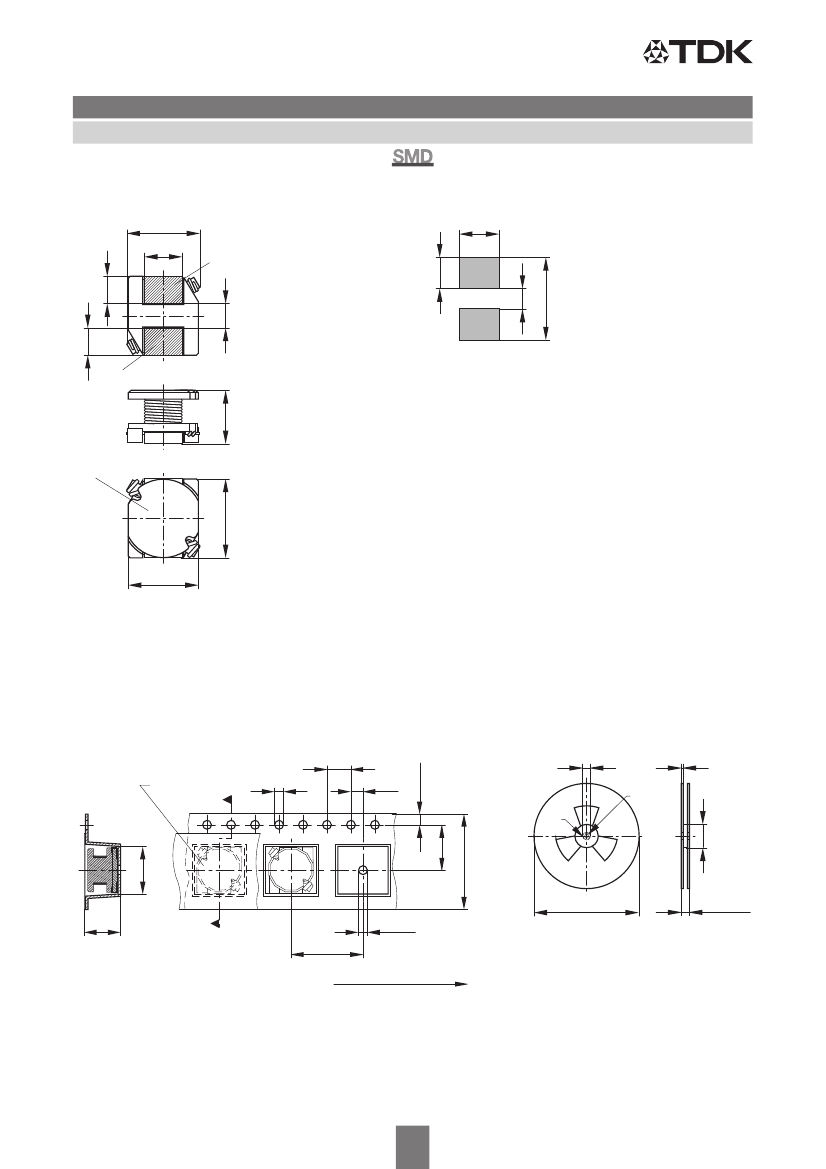

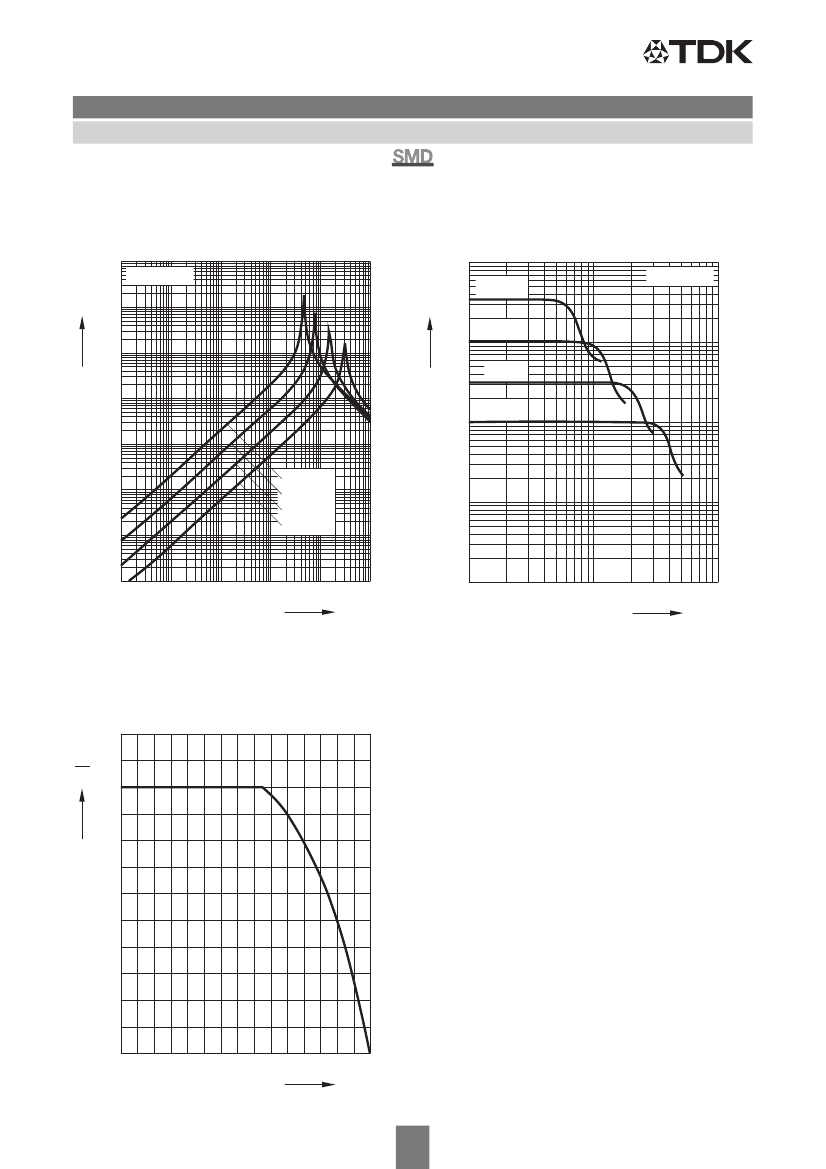

SMT power inductors
Size 8.3
Series/Type:
Date:
7.5
5.5 (mm)
B82473A1
June 2012
Data Sheet
EPCOS AG 2015. Reproduction, publication and dissemination of this publication, enclosures hereto and the information
contained therein without EPCOS' prior express consent is prohibited.
EPCOS AG is a TDK Group Company.
