LA5436-TAW Overview

T-1 3/4 SINGLE COLOR LED, AMBER, 5 mm

LA5436-TAW Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Osram Opto Semiconductor
Reach Compliance Code	unknown
color	AMBER
color@wavelength	Orange
Configuration	SINGLE
Maximum forward current	0.03 A
Maximum forward voltage	2.4 V
JESD-609 code	e0
Lens type	COLORLESS CLEAR
Nominal luminous intensity	1040.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
Optoelectronic device types	SINGLE COLOR LED
total height	8.6 mm
method of packing	BULK
peak wavelength	622 nm
Maximum reverse voltage	3 V
shape	ROUND
size	5 mm
surface mount	NO
T code	T-1 3/4
Terminal surface	Tin/Lead (Sn/Pb)
Terminal pitch	2.54 mm
perspective	40 deg

Preview

Download Datasheet

View All

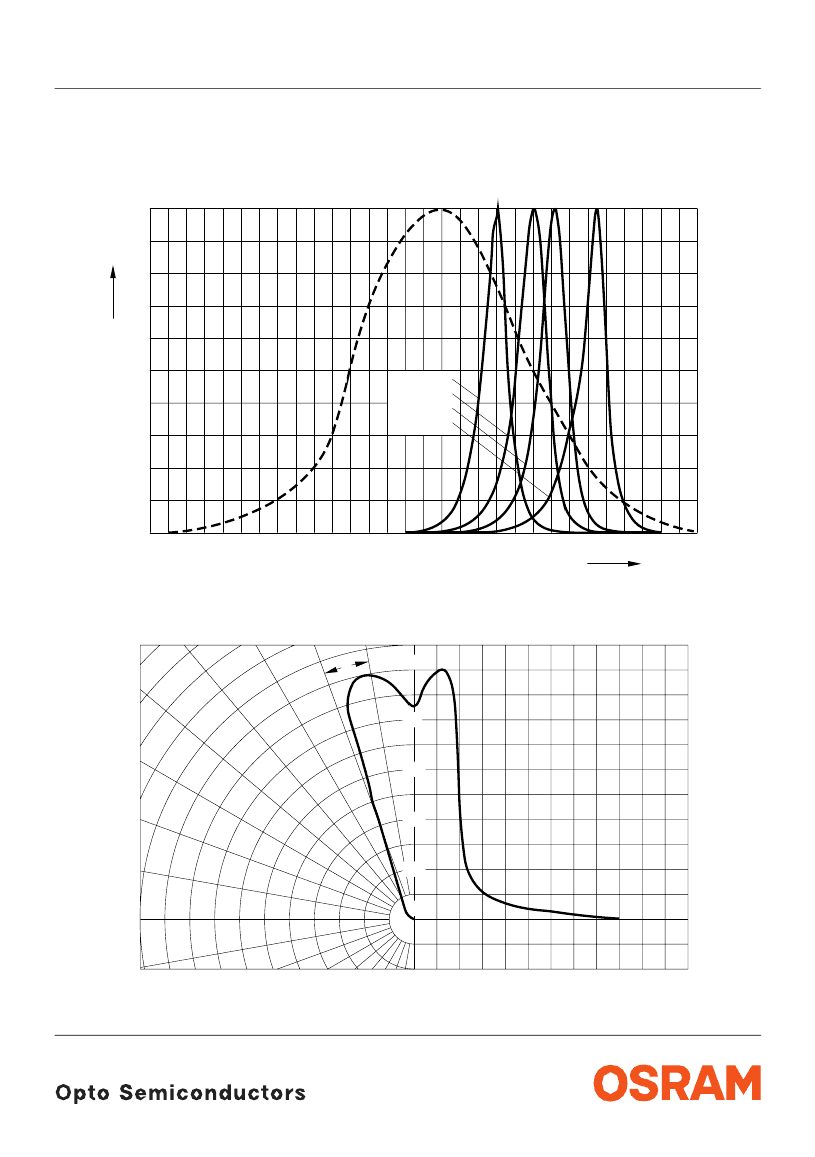

Hyper 5 mm (T1 ¾) LED, Non Diffused

Hyper-Bright LED

LS 5436, LA 5436, LO 5436, LY 5436

Vorläufige Daten / Preliminary Data

Besondere Merkmale

•

Gehäusetyp:

farbloses, klares 5 mm (T1 ¾)

Gehäuse

•

Besonderheit des Bauteils:

Lötspieße ohne

Aufsetzebene

•

Wellenlänge:

633 nm (super-rot),

615 nm (amber), 606 nm (orange),

587 nm (gelb)

•

Abstrahlwinkel:

40°

•

Technologie:

InGaAlP

•

optischer Wirkungsgrad:

11 lm/W (gelb,

orange, amber), 7 lm/W (super-rot)

•

Gruppierungsparameter:

Lichtstärke

•

Lötmethode:

Wellenlöten (TTW)

•

Verpackung:

Schüttgut, gegurtet lieferbar

Anwendungen

• Informationsanzeigen im Innen- und

Außenbereich (z.B. im Verkehrsbereich;

Laufschriftanzeigen)

• optischer Indikator

• Hinterleuchtung (LCD, Schalter, Tasten,

Displays, Werbebeleuchtung,

Allgemeinbeleuchtung)

• Innenbeleuchtung im Automobilbereich

(z.B. Instrumentenbeleuchtung, u.ä.)

• Ersatz von Kleinst-Glühlampen

• Markierungsbeleuchtung (z.B. Stufen,

Fluchtwege, u.ä.)

• Signal- und Symbolleuchten

Features

•

package:

colorless, clear 5 mm (T1 ¾)

package

•

feature of the device:

solder leads without

stand-off

•

wavelength:

633 nm (super-red),

615 nm (amber), 606 nm (orange),

587 nm (yellow)

•

viewing angle:

40°

•

technology:

InGaAlP

•

optical efficiency:

11 lm/W (yellow, orange,

amber), 7 lm/W (super-red)

•

grouping parameter:

luminous intensity

•

soldering methods:

TTW soldering

•

packing:

bulk, available taped on reel

Applications

• indoor and outdoor displays (e.g. displays for

traffic; light writing displays)

• optical indicators

• backlighting (LCD, switches, keys, displays,

illuminated advertising, general lighting)

• interior automotive lighting. (e.g. dashboard

backlighting, etc.)

• substitution of micro incandescent lamps

• marker lights (e.g. steps, exit ways, etc.)

• signal and symbol luminaire

2002-04-03

LA5436-TAW Related Products

	LA5436-TAW	LO5436-TAW	LY5436-TAW
Description	T-1 3/4 SINGLE COLOR LED, AMBER, 5 mm	T-1 3/4 SINGLE COLOR LED, ORANGE, 5 mm	T-1 3/4 SINGLE COLOR LED, YELLOW, 5 mm, LEAD FREE PACKAGE-2
Maker	Osram Opto Semiconductor	Osram Opto Semiconductor	Osram Opto Semiconductor
Reach Compliance Code	unknown	unknown	unknown
color	AMBER	ORANGE	YELLOW
color@wavelength	Orange	Amber	Amber
Configuration	SINGLE	SINGLE	SINGLE
Maximum forward current	0.03 A	0.03 A	0.03 A
Maximum forward voltage	2.4 V	2.4 V	2.4 V
Lens type	COLORLESS CLEAR	COLORLESS CLEAR	COLORLESS CLEAR
Nominal luminous intensity	1040.0 mcd	1040.0 mcd	1040.0 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	1	1	1
Number of terminals	2	2	2
Maximum operating temperature	100 °C	100 °C	100 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	8.6 mm	8.6 mm	8.6 mm
method of packing	BULK	BULK	BULK
peak wavelength	622 nm	610 nm	591 nm
Maximum reverse voltage	3 V	3 V	3 V
shape	ROUND	ROUND	ROUND
size	5 mm	5 mm	5 mm
surface mount	NO	NO	NO
T code	T-1 3/4	T-1 3/4	T-1 3/4
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
perspective	40 deg	40 deg	40 deg
