MMSF4P01ZR2 datasheet, PDF - EEWORLD Datasheet

MMSF4P01ZR2: Description5700mA, 20V, P-CHANNEL, Si, SMALL SIGNAL, MOSFET; CategoryDiscrete semiconductor The transistor; File Size276KB，7 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

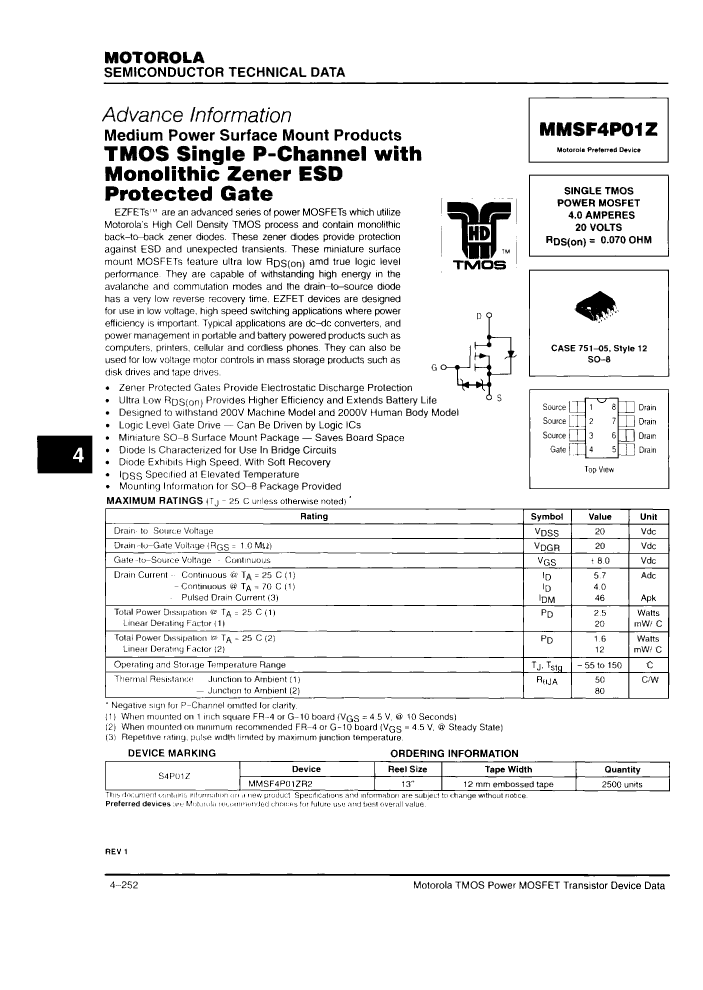

MMSF4P01ZR2 Overview

5700mA, 20V, P-CHANNEL, Si, SMALL SIGNAL, MOSFET

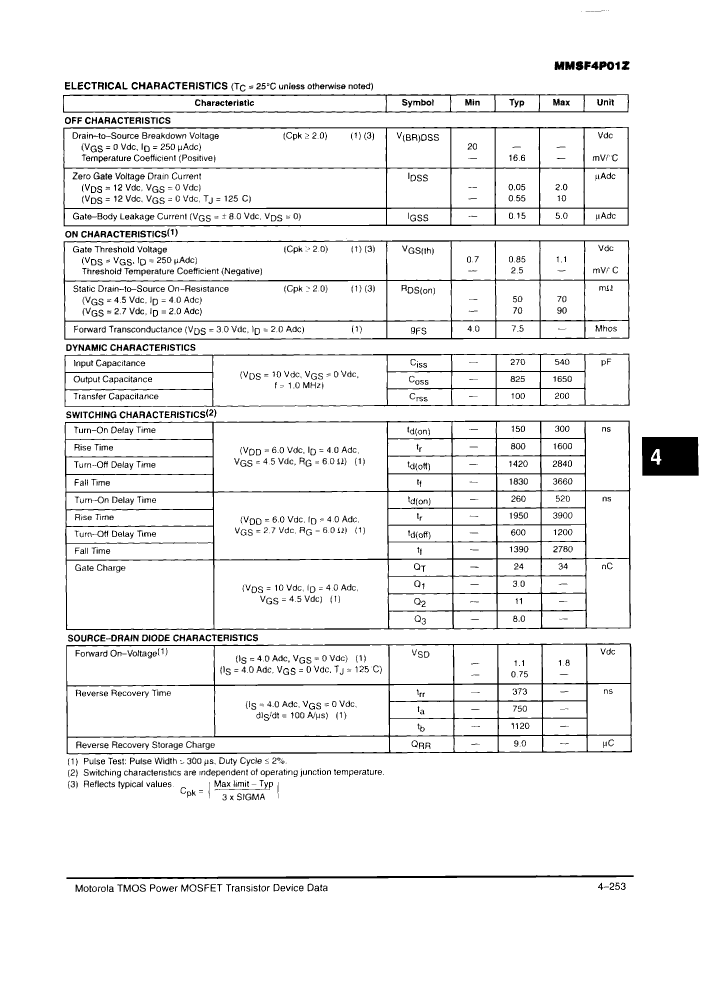

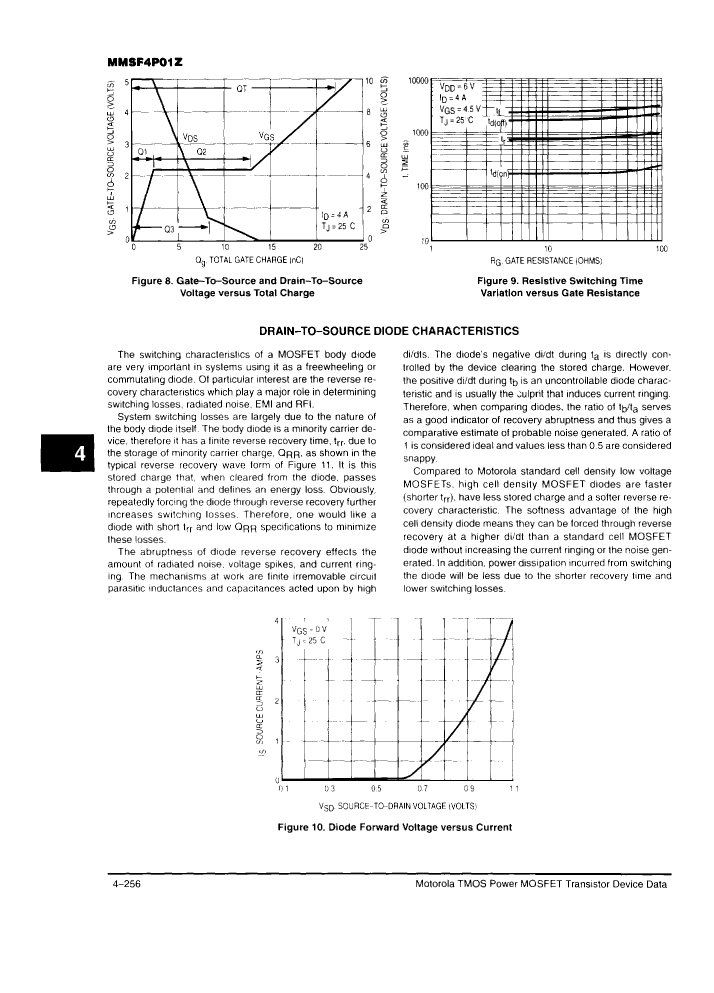

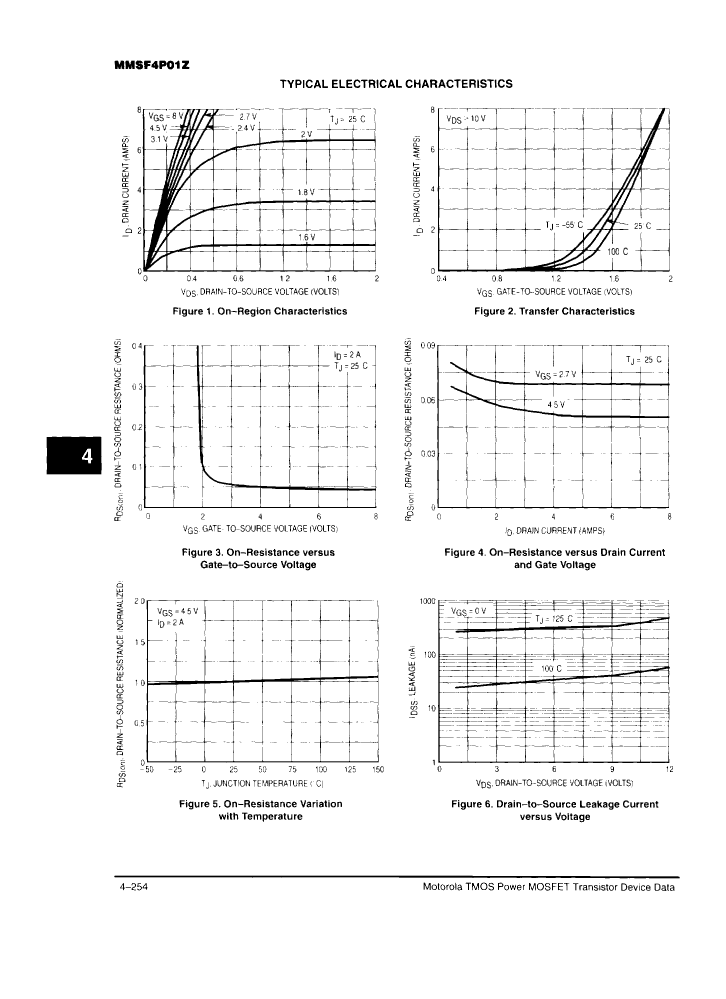

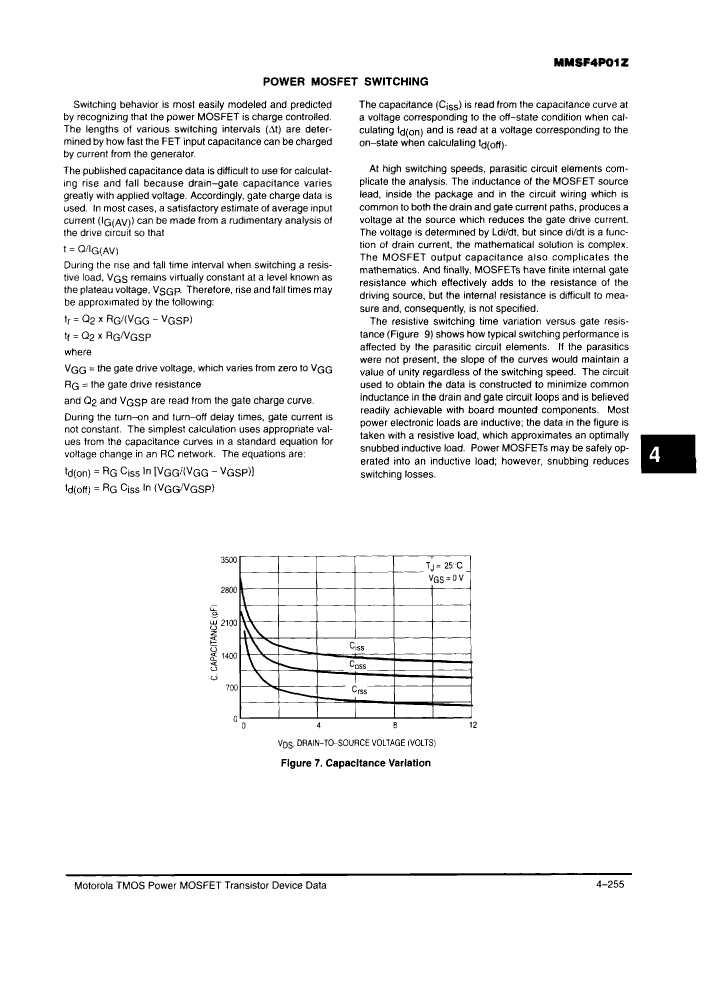

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	SMALL OUTLINE, R-PDSO-G8
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	LOGIC LEVEL COMPATIBLE, ESD PROTECTED
Configuration	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	20 V
Maximum drain current (Abs) (ID)	5.7 A
Maximum drain current (ID)	5.7 A
Maximum drain-source on-resistance	0.07 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
Maximum feedback capacitance (Crss)	200 pF
JESD-30 code	R-PDSO-G8
JESD-609 code	e0
Number of components	1
Number of terminals	8
Operating mode	ENHANCEMENT MODE
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	P-CHANNEL
Maximum power consumption environment	1.6 W
Maximum power dissipation(Abs)	2.5 W
Certification status	Not Qualified
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	SWITCHING
Transistor component materials	SILICON
Base Number Matches	1

	MMSF4P01ZR2	MMSF4P01ZR1
Description	5700mA, 20V, P-CHANNEL, Si, SMALL SIGNAL, MOSFET	5700mA, 20V, P-CHANNEL, Si, SMALL SIGNAL, MOSFET
package instruction	SMALL OUTLINE, R-PDSO-G8	SMALL OUTLINE, R-PDSO-G8
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Other features	LOGIC LEVEL COMPATIBLE, ESD PROTECTED	LOGIC LEVEL COMPATIBLE, ESD PROTECTED
Configuration	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	20 V	20 V
Maximum drain current (ID)	5.7 A	5.7 A
Maximum drain-source on-resistance	0.07 Ω	0.07 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR
Maximum feedback capacitance (Crss)	200 pF	200 pF
JESD-30 code	R-PDSO-G8	R-PDSO-G8
Number of components	1	1
Number of terminals	8	8
Operating mode	ENHANCEMENT MODE	ENHANCEMENT MODE
Maximum operating temperature	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Polarity/channel type	P-CHANNEL	P-CHANNEL
Maximum power consumption environment	1.6 W	1.6 W
Certification status	Not Qualified	Not Qualified
surface mount	YES	YES
Terminal form	GULL WING	GULL WING
Terminal location	DUAL	DUAL
transistor applications	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON
