IL-5P-S3EN2-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> IL-5P-S3EN2-1

IL-5P-S3EN2-1: DescriptionBoard Connector, 5 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,; CategoryThe connector The connector; File Size129KB，1 Pages; ManufacturerJapan Aviation Electronics Industry Limited; Environmental Compliance

Download Datasheet Parametric Compare View All

IL-5P-S3EN2-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	IL-5P-S3EN2-1	-	-	View	Buy Now

IL-5P-S3EN2-1 Overview

Board Connector, 5 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,

IL-5P-S3EN2-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (4) OVER NICKEL
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	BRASS
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Plug information	IL-5S-S3L-(N)
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.5 mm
Termination type	SOLDER
Total number of contacts	5
UL Flammability Code	94V-0
Base Number Matches	1

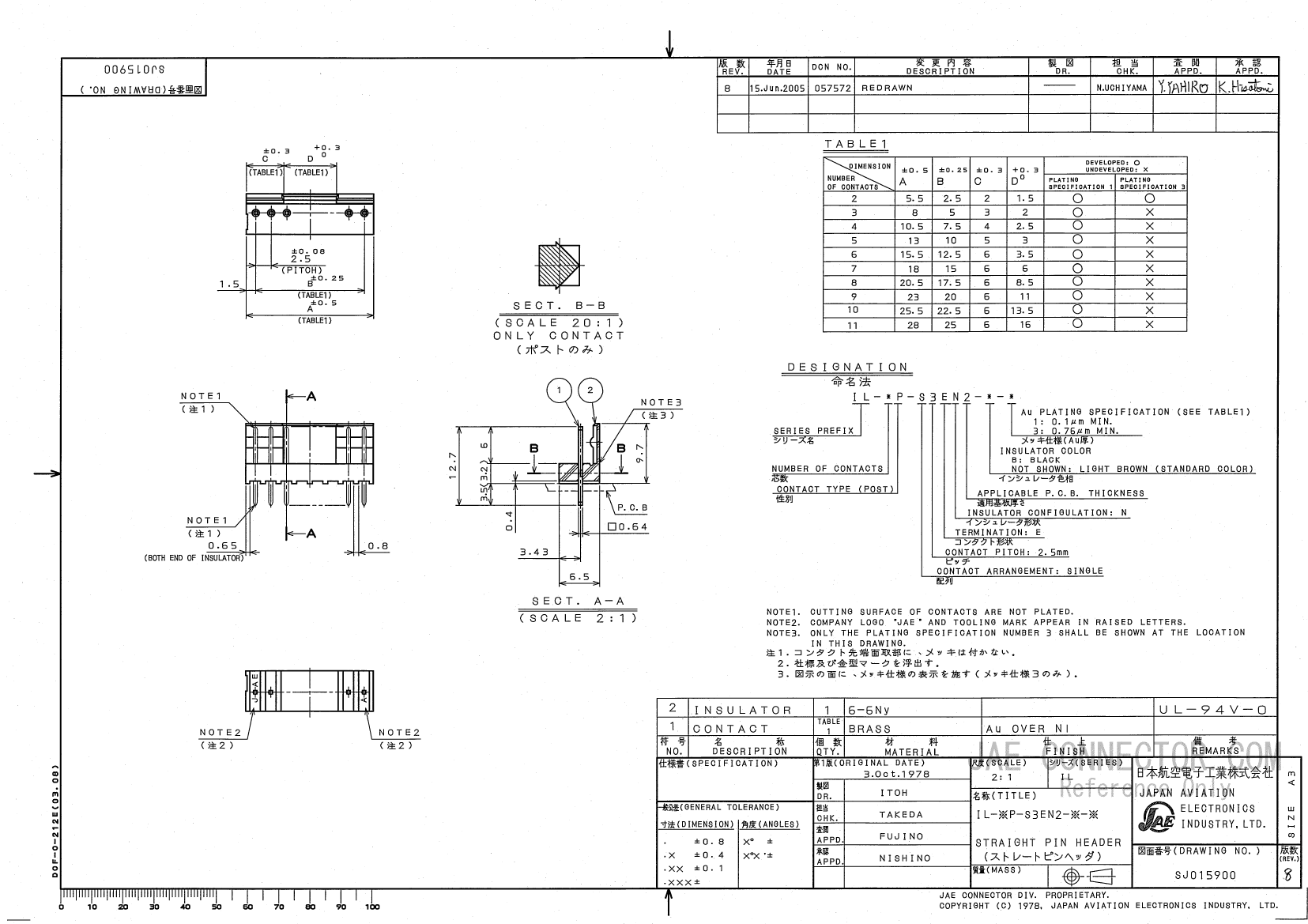

Preview

Download Datasheet

View All

IL-5P-S3EN2-1 Related Products

	IL-5P-S3EN2-1	IL-3P-S3EN2-1	IL-7P-S3EN2-1	IL-2P-S3EN2-1	IL-4P-S3EN2-1	IL-8P-S3EN2-1	IL-9P-S3EN2-1	IL-10P-S3EN2-1
Description	Board Connector, 5 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,	Board Connector, 3 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,	Board Connector, 7 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,	Board Connector, 2 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,	Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,	Board Connector, 8 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,	Board Connector, 9 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,	Board Connector, 10 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (4) OVER NICKEL	GOLD (4) OVER NICKEL	GOLD (4) OVER NICKEL	GOLD (4) OVER NICKEL	GOLD (4) OVER NICKEL	GOLD (4) OVER NICKEL	GOLD (4) OVER NICKEL	GOLD (4) OVER NICKEL
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
JESD-609 code	e4	e4	e4	e4	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Plug information	IL-5S-S3L-(N)	IL-3S-S3L-(N)	IL-7S-S3L-(N)	IL-2S-S3L-(N)	IL-4S-S3L-(N)	IL-8S-S3L-(N)	IL-9S-S3L-(N)	IL-10S-S3L-(N)
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	1	1	1	1	1	1	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	5	3	7	2	4	8	9	10
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1	1	-	-
