BSS89-18 datasheet, PDF - EEWORLD Datasheet

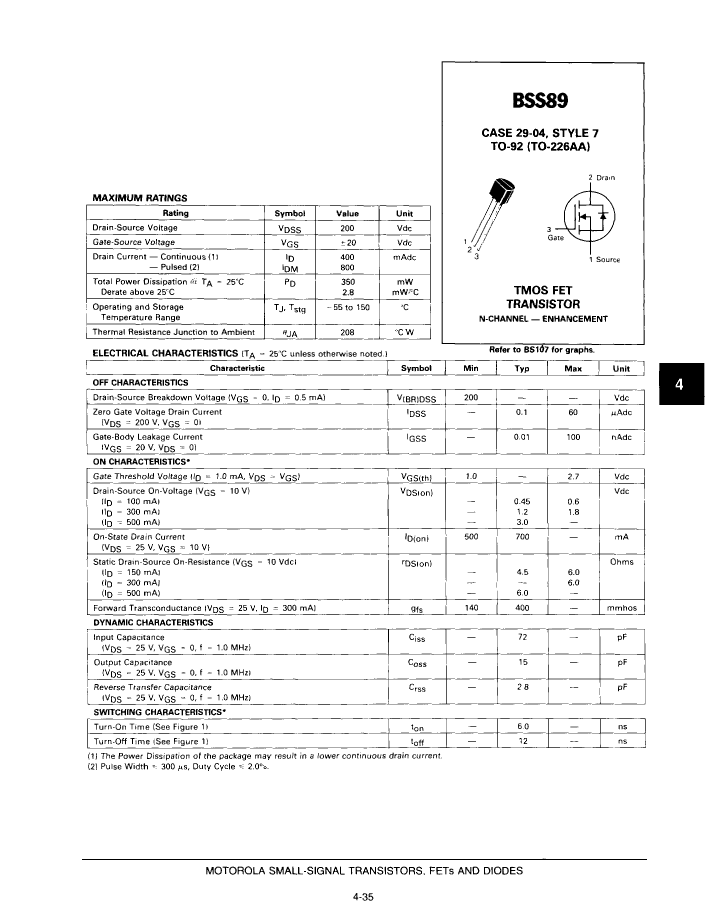

BSS89-18: DescriptionSmall Signal Field-Effect Transistor, 0.4A I(D), 200V, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET; CategoryDiscrete semiconductor The transistor; File Size31KB，1 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

BSS89-18 Overview

Small Signal Field-Effect Transistor, 0.4A I(D), 200V, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET

Parameter Name	Attribute value
package instruction	CYLINDRICAL, O-PBCY-T3
Reach Compliance Code	unknown
ECCN code	EAR99
Configuration	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	200 V
Maximum drain current (ID)	0.4 A
Maximum drain-source on-resistance	6 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
Maximum feedback capacitance (Crss)	3.5 pF
JESD-30 code	O-PBCY-T3
Number of components	1
Number of terminals	3
Operating mode	ENHANCEMENT MODE
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	CYLINDRICAL
Polarity/channel type	N-CHANNEL
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	BOTTOM
transistor applications	SWITCHING
Transistor component materials	SILICON
Base Number Matches	1

	BSS89-18	BSS89-5
Description	Small Signal Field-Effect Transistor, 0.4A I(D), 200V, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET	Small Signal Field-Effect Transistor, 0.4A I(D), 200V, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET
package instruction	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Configuration	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	200 V	200 V
Maximum drain current (ID)	0.4 A	0.4 A
Maximum drain-source on-resistance	6 Ω	6 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR
Maximum feedback capacitance (Crss)	3.5 pF	3.5 pF
JESD-30 code	O-PBCY-T3	O-PBCY-T3
Number of components	1	1
Number of terminals	3	3
Operating mode	ENHANCEMENT MODE	ENHANCEMENT MODE
Maximum operating temperature	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND
Package form	CYLINDRICAL	CYLINDRICAL
Polarity/channel type	N-CHANNEL	N-CHANNEL
Certification status	Not Qualified	Not Qualified
surface mount	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal location	BOTTOM	BOTTOM
transistor applications	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON
Base Number Matches	1	1
