BFX34R1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> BFX34R1

BFX34R1: Description2000mA, 60V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-205AD, TO-39, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size75KB，3 Pages; ManufacturerSEMELAB; Environmental Compliance

Download Datasheet Parametric Compare View All

BFX34R1 Overview

2000mA, 60V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-205AD, TO-39, 3 PIN

BFX34R1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Parts packaging code	BCY
package instruction	CYLINDRICAL, O-MBCY-W3
Contacts	2
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum collector current (IC)	2 A
Collector-emitter maximum voltage	60 V
Configuration	SINGLE
Minimum DC current gain (hFE)	40
JEDEC-95 code	TO-205AD
JESD-30 code	O-MBCY-W3
JESD-609 code	e1
Number of components	1
Number of terminals	3
Maximum operating temperature	200 °C
Package body material	METAL
Package shape	ROUND
Package form	CYLINDRICAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	NPN
Certification status	Not Qualified
surface mount	NO
Terminal surface	TIN SILVER COPPER
Terminal form	WIRE
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	100 MHz
Maximum off time (toff)	1200 ns
Maximum opening time (tons)	600 ns
Base Number Matches	1

Preview

Download Datasheet

View All

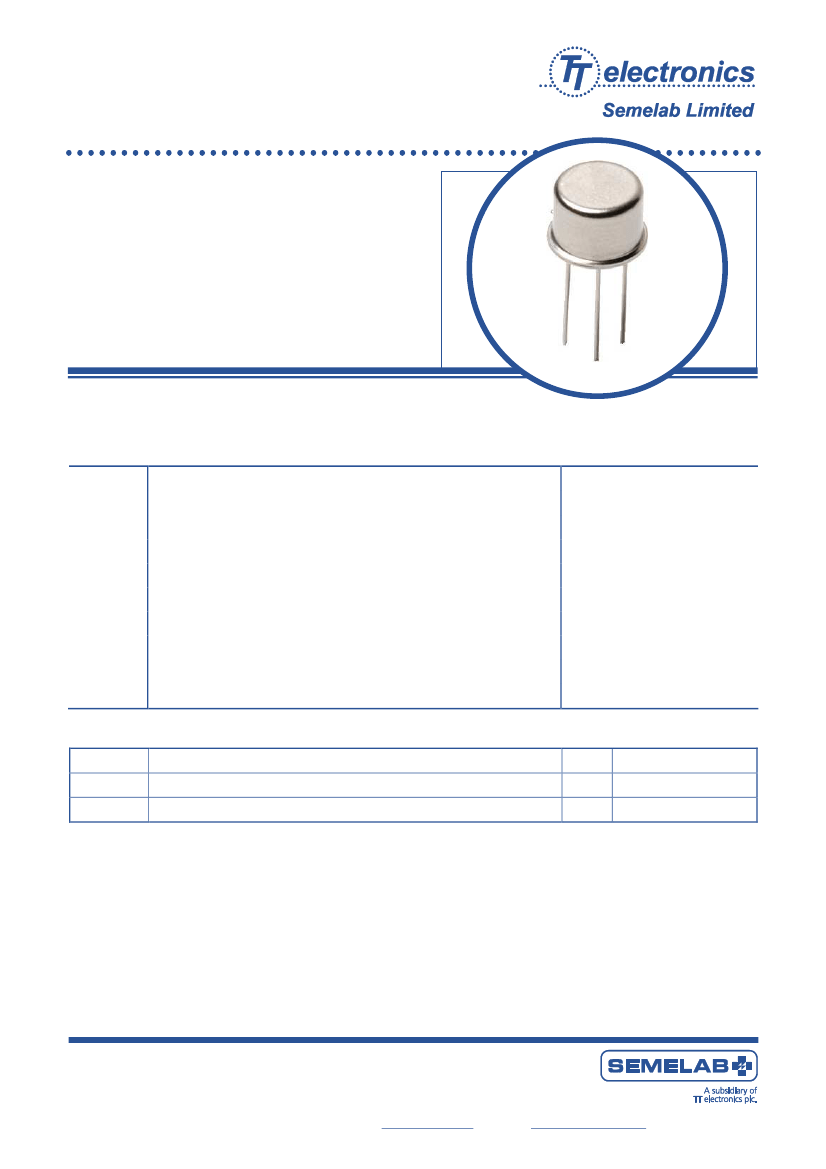

HIGH CURRENT GENERAL

PURPOSE TRANSISTOR

BFX34

•

Silicon Epitaxial NPN Transistor

High Speed, Low Saturation Switch

Hermetic TO39 Package

Screening Options Available

ABSOLUTE MAXIMUM RATINGS

(TC = 25°C unless otherwise stated)

VCBO

VCEO

VEBO

ICM

Tstg

Collector – Base Voltage

Collector – Emitter Voltage

Emitter – Base Voltage

Continuous Base Current

Continuous Collector Current

Peak Repetitive Collector Current

TA = 25°C

Total Power Dissipation at

TC = 25°C

Junction Temperature Range

Storage Temperature Range

120V

60V

1.0A

870mW

200°C

-65 to +200°C

THERMAL PROPERTIES

Symbols

θJA

θJC

Parameters

Thermal Resistance, Junction To Ambient

Thermal Resistance, Junction To Case

Max.

200

Unit

°C/W

Semelab Limited reserves the right to change test conditions, parameter limits and package dimensions without notice.

Information furnished by Semelab is believed to be both accurate and reliable at the time of going to press. However

Semelab assumes no responsibility for any errors or omissions discovered in its use. Semelab encourages customers to

verify that datasheets are current before placing orders.

Semelab Limited

Coventry Road, Lutterworth, Leicestershire, LE17 4JB

Telephone +44 (0) 1455 556565

Fax +44 (0) 1455 552612

Email:

sales@semelab-tt.com

Document Number 5569

Issue 2

Page 1 of 3

Website:

http://www.semelab-tt.com
