SUF4007 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> SUF4007

SUF4007: DescriptionRectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, DO-204AL, DO-41, 2 PIN; CategoryDiscrete semiconductor diode; File Size69KB，2 Pages; ManufacturerGulf Semiconductor; Websitehttp://www.gulfsemi.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

SUF4007 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SUF4007	-	-	View	Buy Now

SUF4007 Overview

Rectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, DO-204AL, DO-41, 2 PIN

SUF4007 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	O-PALF-W2
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	LOW POWER LOSS
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.7 V
JEDEC-95 code	DO-204AL
JESD-30 code	O-PALF-W2
Humidity sensitivity level	1
Maximum non-repetitive peak forward current	30 A
Number of components	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-50 °C
Maximum output current	1 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Maximum repetitive peak reverse voltage	1000 V
Maximum reverse recovery time	0.075 µs
surface mount	NO
Terminal form	WIRE
Terminal location	AXIAL
Base Number Matches	1

Preview

Download Datasheet

View All

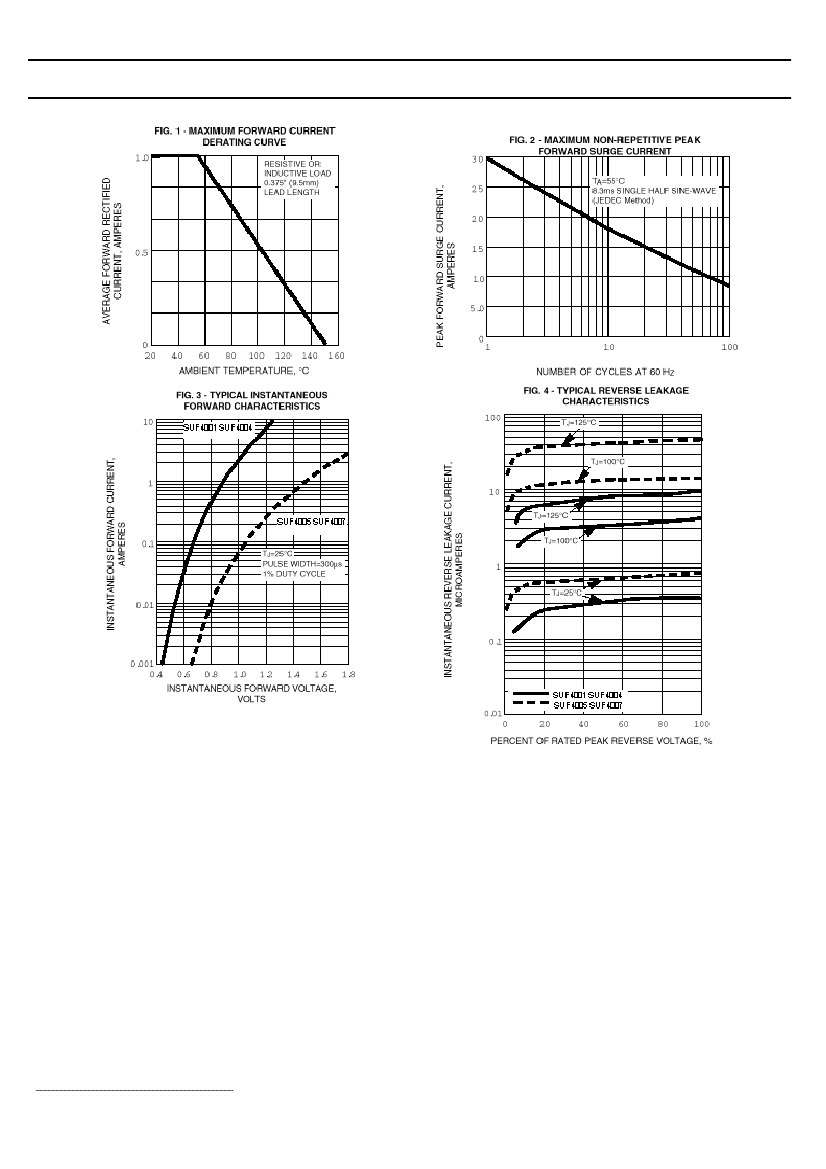

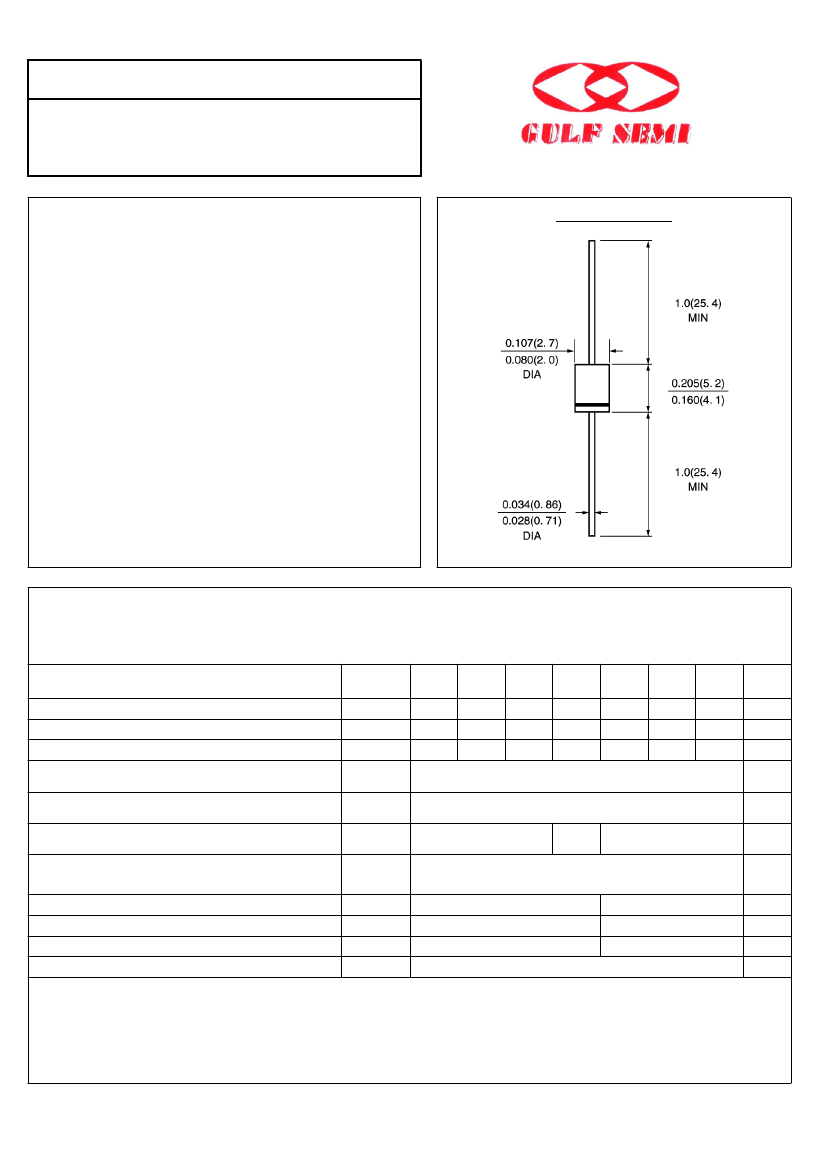

SUF4001 THRU SUF4007

HIGH EFFICIENT

PLASTIC SILICON RECTIFIER

VOLTAGE:50 TO 1000V

CURRENT: 1.0A

FEATURE

Low power loss

High surge capability

Ultra-fast recovery time for high efficiency

High temperature soldering guaranteed

250°C/10sec/0.375”lead length at 5 lbs tension

DO -41\DO-204AL

MECHANICAL DATA

Terminal:Plated axial leads solderable per

MIL-STD 202E, method 208C

Case:Molded with UL-94 Class V-0 recognized Flame

Retardant Epoxy

Polarity:color band denotes cathode

Mounting position:any

Dimensions in inches and (millimeters)

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

(single-phase, half -wave, 60HZ, resistive or inductive load rating at 25°C, unless otherwise stated)

SYMBOL

Maximum Recurrent Peak Reverse Voltage

Maximum RMS Voltage

Maximum DC blocking Voltage

Maximum Average Forward Rectified

Current 3/8”lead length at Ta =55°C

Peak Forward Surge Current 8.3ms single

half sine-wave superimposed on rated load

Maximum Forward Voltage at Forward current

1A Peak

Maximum DC Reverse Current

at rated DC blocking voltage

Ta =25°C

Ta =100°C

Vrrm

Vrms

Vdc

If(av)

Ifsm

SUF

4001

SUF

4002

100

SUF

4003

200

140

200

SUF

4004

400

280

400

1.0

30.0

SUF

4005

600

420

600

SUF

4006

800

560

800

SUF

4007

1000

700

1000

units

1.0

1.4

10.0

100.0

-50 to +125

1.7

µA

Trr

R(ja)

Tstg,Tj

Maximum Reverse Recovery Time (Note 1)

Typical Junction Capacitance

(Note 2)

Typical Thermal Resistance

(Note 3)

Storage and Operating Junction Temperature

°C/W

°C

Note:

1. Reverse Recovery Condition If

=0.5A,

Ir =1.0A, Irr =0.25A

2. Measured at 1.0 MHz and applied reverse voltage of 4.0Vdc

3. Thermal Resistance from Junction to Ambient at 3/8”lead length, P.C. Board Mounted

Rev.A4

www.gulfsemi.com
