SA534N Overview

Operational Amplifier, 4 Func, 9000uV Offset-Max, BIPolar, PDIP14,

SA534N Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DIP, DIP14,.3
Reach Compliance Code	unknown
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum bias current (IIB) at 25C	0.25 µA
frequency compensation	YES
Maximum input offset voltage	9000 µV
JESD-30 code	R-PDIP-T14
JESD-609 code	e0
low-dissonance	NO
micropower	YES
Number of functions	4
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5/30 V
Certification status	Not Qualified
Nominal slew rate	0.3 V/us
Maximum slew rate	3 mA
Supply voltage upper limit	16 V
surface mount	NO
technology	BIPOLAR
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Minimum voltage gain	15000
Base Number Matches	1

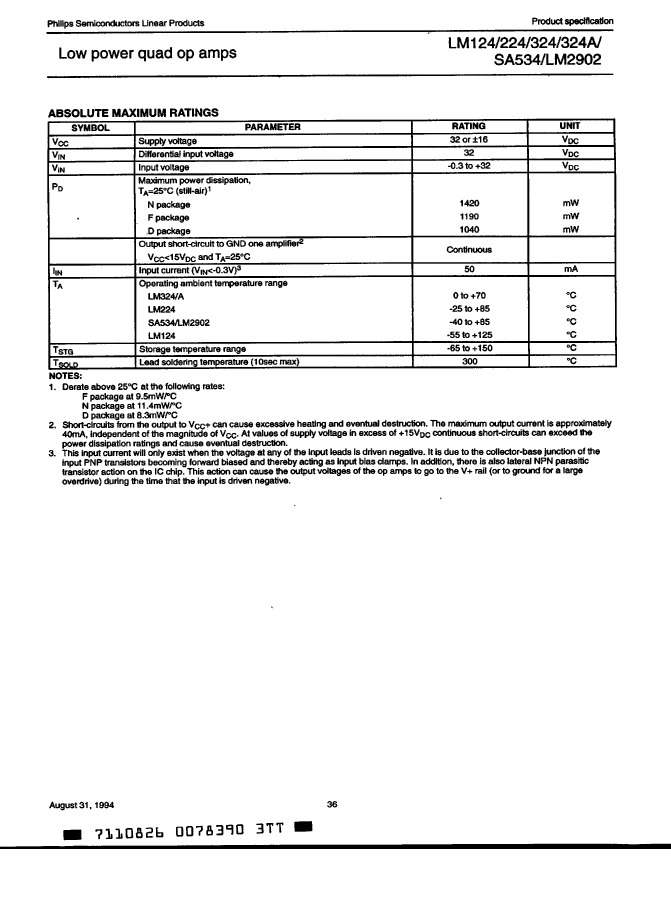

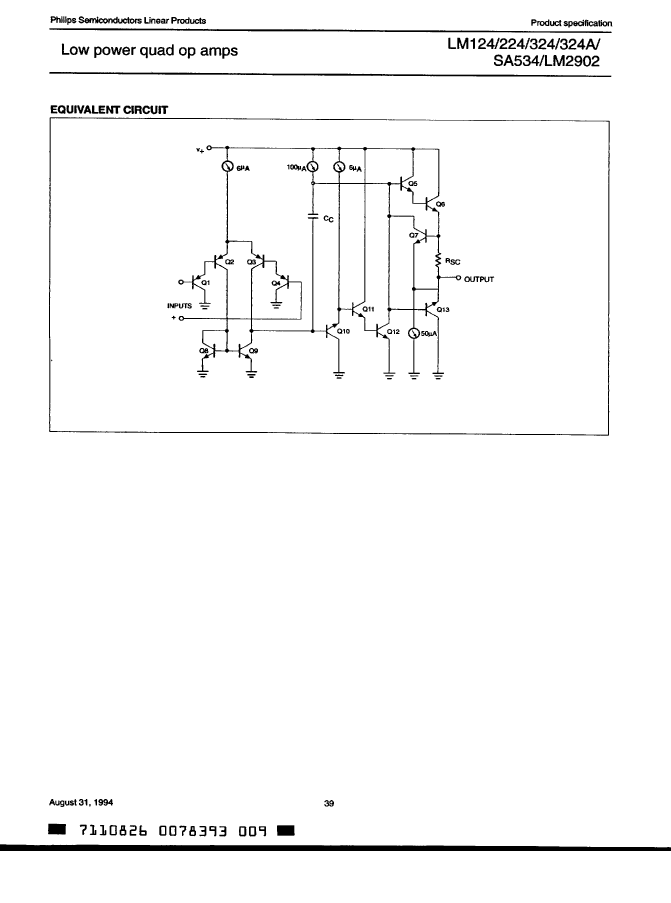

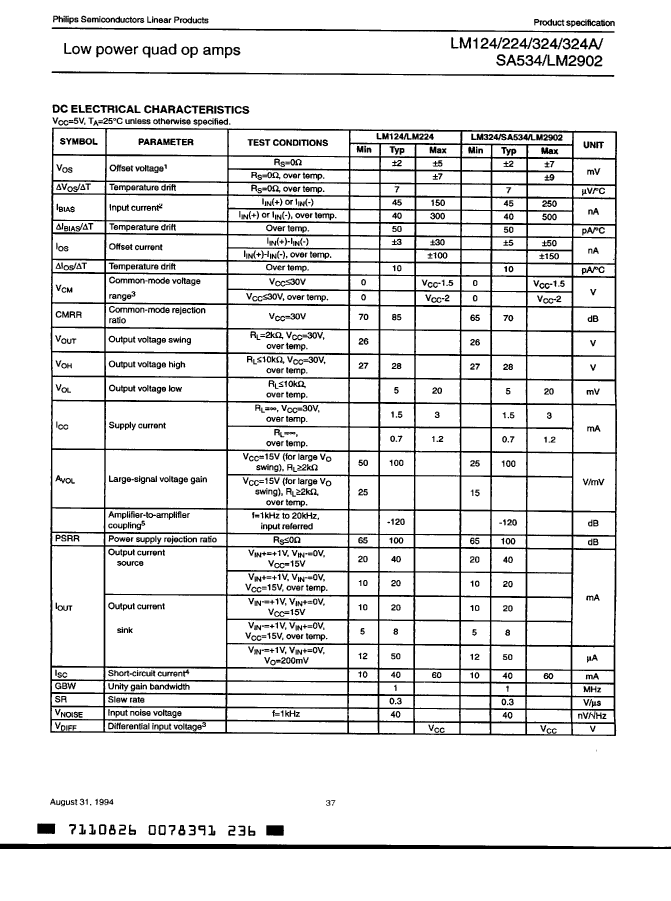

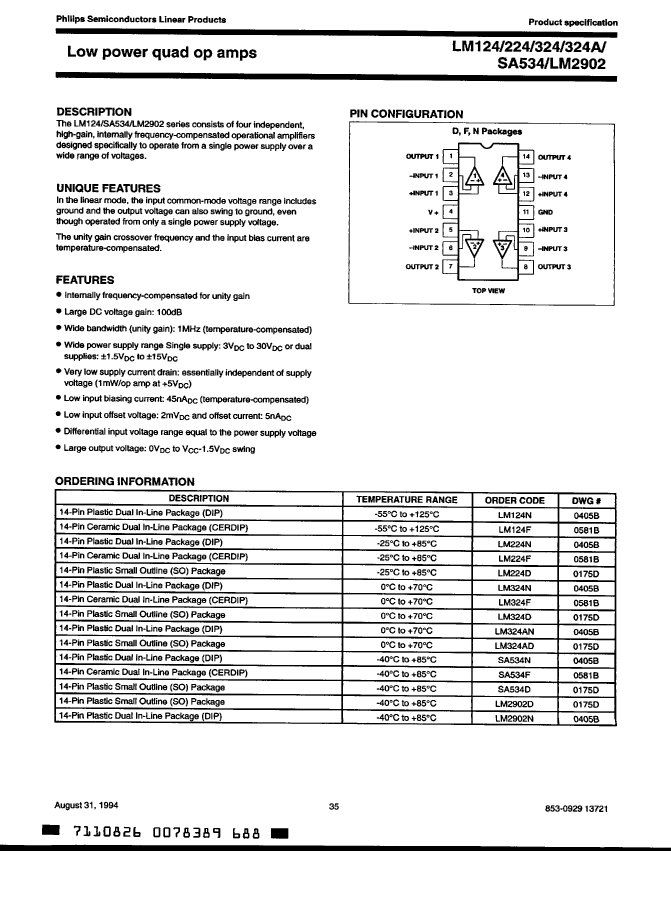

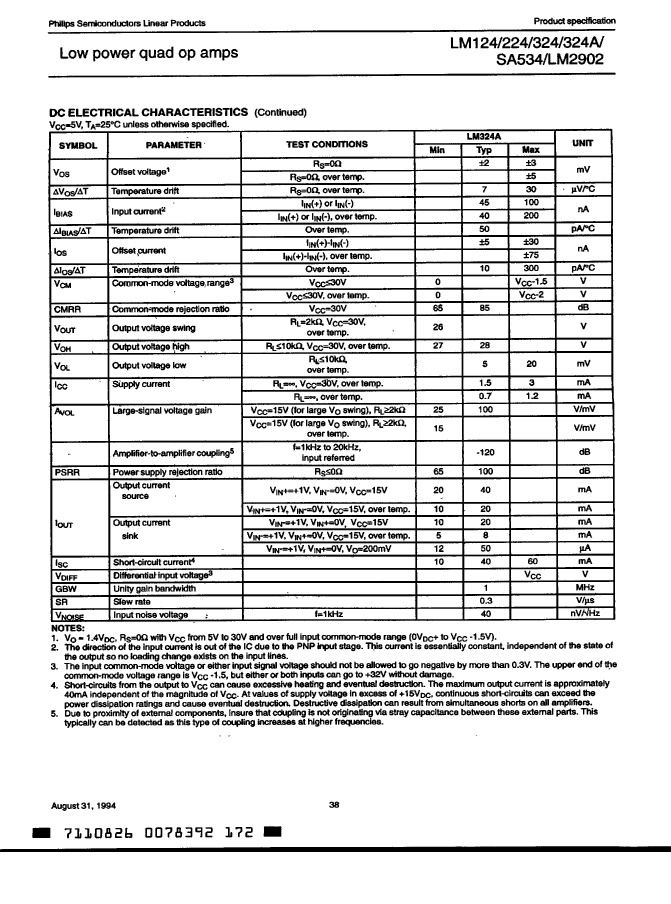

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

SA534N Related Products

	SA534N	LM124N	SA534F
Description	Operational Amplifier, 4 Func, 9000uV Offset-Max, BIPolar, PDIP14,	Operational Amplifier, 4 Func, 7000uV Offset-Max, BIPolar, PDIP14,	Operational Amplifier, 4 Func, 9000uV Offset-Max, BIPolar, CDIP14,
Is it Rohs certified?	incompatible	incompatible	incompatible
package instruction	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3
Reach Compliance Code	unknown	unknown	unknown
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK
frequency compensation	YES	YES	YES
Maximum input offset voltage	9000 µV	7000 µV	9000 µV
JESD-30 code	R-PDIP-T14	R-PDIP-T14	R-XDIP-T14
JESD-609 code	e0	e0	e0
low-dissonance	NO	NO	NO
micropower	YES	YES	YES
Number of functions	4	4	4
Number of terminals	14	14	14
Maximum operating temperature	85 °C	125 °C	85 °C
Minimum operating temperature	-40 °C	-55 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC
encapsulated code	DIP	DIP	DIP
Encapsulate equivalent code	DIP14,.3	DIP14,.3	DIP14,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE
power supply	5/30 V	5/30 V	5/30 V
Certification status	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	INDUSTRIAL	MILITARY	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL
Base Number Matches	1	1	1
Maximum bias current (IIB) at 25C	0.25 µA	0.15 µA	-
Nominal slew rate	0.3 V/us	0.3 V/us	-
Maximum slew rate	3 mA	3 mA	-
Supply voltage upper limit	16 V	16 V	-
Minimum voltage gain	15000	25000	-
