INTEGRATED CIRCUITS
DATA SHEET
SAA1300
Tuner switching circuit
Product specification
File under Integrated Circuits, IC12
June 1987
Philips Semiconductors
Product specification
Tuner switching circuit
SAA1300
The SAA1300 is for switching on and off the supply lines
of various circuit parts via an I
2
C bus signal. Furthermore,
it can be used to supply current for switching diodes in
radio and television tuners. It contains 5 output stages,
which are capable of supplying up to 85 mA in the ON state
or sinking up to
−100 µA
in the OFF state.
Current limiting and short-circuit protection are included.
The output stages are driven by a shift register/latch
combination which is loaded via data from the I
2
C bus. A
power-on reset of the latches ensures the OFF state of the
output stages (OUT 2 to OUT 5) without data reception
from the I
2
C bus. A subaddressing system allows the
connection of up to three circuits on the same I
2
C bus
lines; one of the outputs (OUT 1, pin 7) can also be used
as an input to select the device via a simple internal A/D
converter.

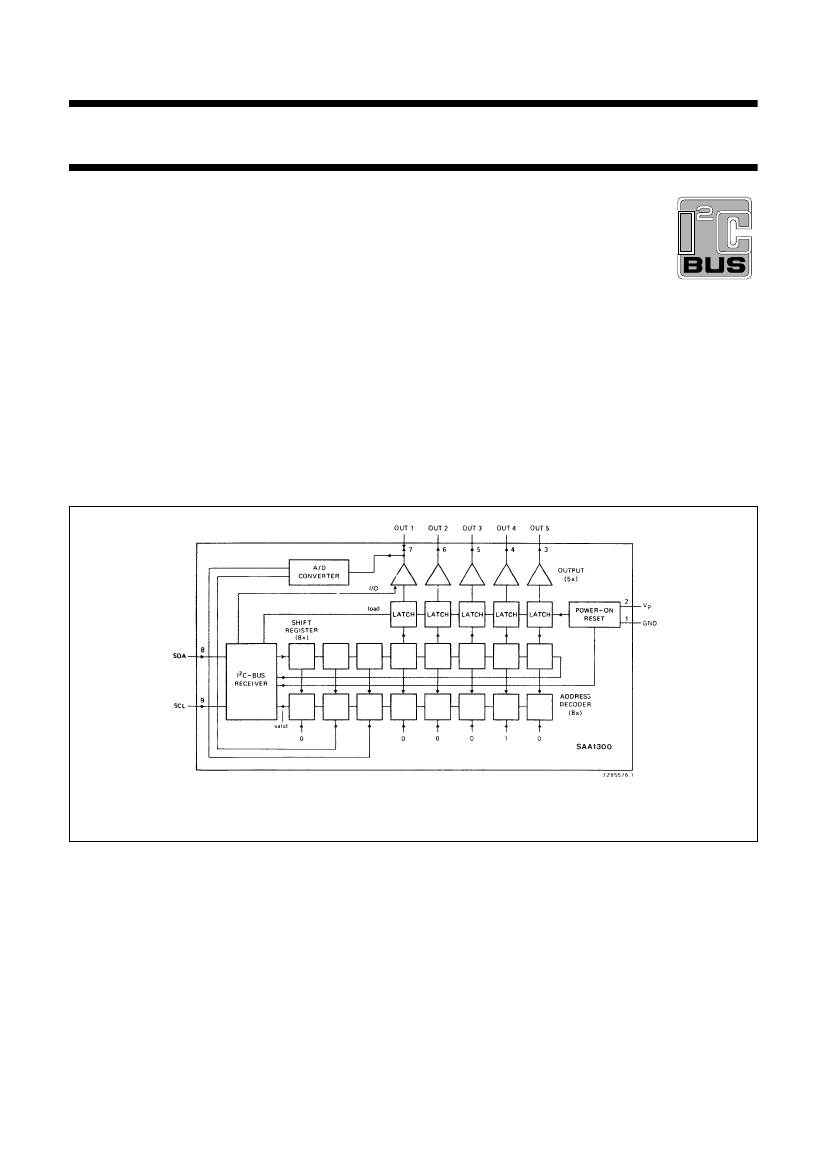

Fig.1 Block diagram.
PACKAGE OUTLINE
9-lead SIL; plastic (SOT142); SOT142-1; 1996 September 05.
June 1987
2
Philips Semiconductors
Product specification
Tuner switching circuit
PINNING
PIN NO.
1
2
3
4
5
6
7
8
9
I
2
C BUS INFORMATION
Address, first byte
0 1 0 0 0 A B 0 where,
A
0
0
1
1
B
0
1
0
1
FUNCTION
general address
OUT 1 = input
OUT 1 = input
OUT 1 = input
OUT 1 = output
address accepted if V
OUT 1
= V
OUT L
(LOW)
address accepted if V
OUT 1
= V
OUT H
(HIGH)
address accepted if V
OUT 1
= V
OUT M
(MEDIUM)
CONDITION
GND
V
P
OUT 5
OUT 4
OUT 3
OUT 2
OUT 1
SDA
SCL
output and subaddressing input
serial data line
serial clock line
I
2
C bus
outputs
SYMBOL
ground
positive supply
FUNCTION
SAA1300
Data, second byte
OUT 5, OUT 4, OUT 3, OUT 2, OUT 1, X, X, X
The I/O output stage (OUT 1) is switched as an input stage after a power-on reset. It depends on the contents of the first
data transmission whether the output stage is switched as an output or remains as an input.
RATINGS
Limiting values in accordance with the Absolute Maximum System (IEC 134)
Supply voltage
Input voltage range at SDA, SCL
Input voltage range at OUT 1
Output voltage range at OUT 1 to OUT 5
Input current at SDA, SCL
Input current at OUT 1
Total power dissipation
Storage temperature range
Operating ambient temperature ranges
V
P
V
I
V
I
V
O
I
I
I
I
P
tot
T
stg
T
amb
max.
13,2
V
V
V
V
mA
mA
mW
°C
°C
−0,5
to
+
6,0
−0,5
to + 12,5
−0,5
to + 12,5
max.
max.
max.
20
20
825
−40
to + 125
−20
to + 80
June 1987
3
Philips Semiconductors
Product specification
Tuner switching circuit
CHARACTERISTICS
V
P
= 8 V; T
amb
= 24
°C;
unless otherwise specified
PARAMETER
Supply (pin 2)
Supply voltage range
Supply current
5 outputs LOW
5 outputs HIGH
Power on reset level output stage in “OFF” condition
Maximum power dissipation
(1)
Inputs SDA, SCL (pins 8 and 9)
Input voltage HIGH
Input voltage LOW
Input current HIGH
Input current LOW
Acknowledge sink current
Maximum input frequency
Outputs OUT 1 to OUT 5 (pins 3 to 7)
Maximum output current; source: “ON”
Maximum output current; source: “ON”
T
amb
= 80
°C
Output voltage HIGH
at I
Oso
= 85 mA
Output current; sink “OFF”
Output voltage LOW
at I
Osi
=
−100 µA
Output voltage MEDIUM
at I
O
= 10 mA
OUT 1 used as subaddressing input
Input voltage HIGH (code 1 0)
Input voltage MEDIUM (code 1 1)
Input voltage LOW (code 0 1)
Note
1. Outputs must not be driven simultaneously at maximum source current.
V
OUT 1H
V
OUT 1M
V
OUT 1L
0,72 V
P
−
0,39 V
P
−
0
−
V
OM
V
P
−0,5
−
−
V
OL
−
−
V
OH
I
Osi
V
p
−2
−100
−
−300
−
−
I
Oso
60
−
−
I
Oso
+85
−
V
IH
V
IL
−I
IH
I
IH
I
ACK
f
i max
3,0
0
−
−
2,5
100
−
−
−
−
−
−
I
PL
I
PH
V
PR
P
max
5
30
−
−
10
50
3,5
650
V
P
4
8
SYMBOL
MIN.
TYP.
SAA1300
MAX.
UNIT
12
15
70
3,8
−
V
mA
mA
V
mW
5,5
1,5
10
0,4
−
−
V
V
µA
µA
mA
kHz
+150
mA
mA
V
µA
mV
V
100
V
P
V
0,61 V
P
V
0,28 V
P
V
June 1987
4
Philips Semiconductors
Product specification
Tuner switching circuit
PACKAGE OUTLINE
SIL9MP: plastic single in-line medium power package; 9 leads
SAA1300
SOT142-1
D
D
1
D
2
A
3
A
2
seating plane
E
pin 1 index
A
L
1
Z
b
2
e
b
b
1
w
M
9
Q
c
0
5
scale
10 mm
DIMENSIONS (mm are the original dimensions)
UNIT
mm
A
12
11
A
2
max.
3.7
A
3
1.8
1.4
b
1.40
1.14
b
1
0.67
0.50
b
2
1.40
1.14
c
0.48
0.38
D
(1)
21.8
21.4
D
1
21.4
20.7
D
2
18.6
18.2
E
(1)
6.48
6.20
e
2.54
L
3.9
3.4
Q
1.75
1.55
w
0.25
Z
(1)
max.
1.0
Note
1. Plastic or metal protrusions of 0.25 mm maximum per side are not included.
OUTLINE
VERSION
SOT142-1
REFERENCES
IEC
JEDEC
EIAJ
EUROPEAN
PROJECTION
ISSUE DATE
95-02-09
97-12-16
