S1117-33PI datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> S1117-33PI

S1117-33PI: DescriptionIC,VOLT REGULATOR,FIXED,+3.3V,BIPOLAR,SIP,3PIN,PLASTIC; CategoryPower/power management The power supply circuit; File Size335KB，6 Pages; ManufacturerKODENSHI AUK; Websitehttp://auk.co.kr/

Download Datasheet Parametric Compare View All

S1117-33PI Overview

IC,VOLT REGULATOR,FIXED,+3.3V,BIPOLAR,SIP,3PIN,PLASTIC

S1117-33PI Parametric

Parameter Name	Attribute value
package instruction	, SIP3,.1ISO-TB
Reach Compliance Code	unknown
Adjustability	FIXED
Nominal dropback voltage 1	1.1 V
Maximum absolute input voltage	20 V
Maximum grid adjustment rate	0.0066%
Maximum load regulation	0.0132%
Output times	1
Number of terminals	3
Working temperatureTJ-Max	125 °C
Working temperature TJ-Min
Maximum output current 1	1 A
Nominal output voltage 1	3.3 V
Package body material	PLASTIC/EPOXY
Encapsulate equivalent code	SIP3,.1ISO-TB
Certification status	Not Qualified
surface mount	NO
technology	BIPOLAR
Terminal pitch	2.54 mm
Terminal location	SINGLE
Maximum voltage tolerance	2%
Base Number Matches	1

Preview

Download Datasheet

View All

Semiconductor

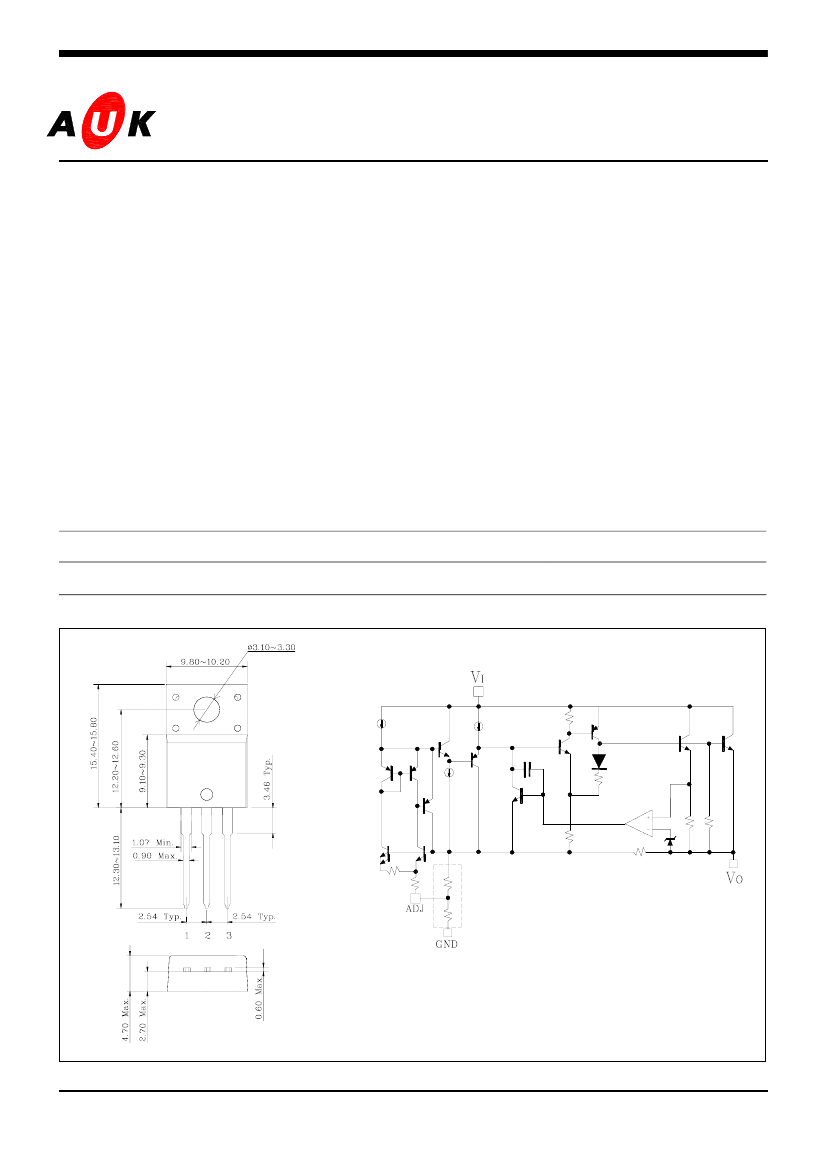

S1117API/S1117-xxPI

Adjustable and Fixed Voltage Regulator

Descriptions

The S1117 series of positive adjustable and fixed regulators are designed to provide 1A with high efficiency.

All internal circuitry is designed to operate down to 1.3V input to output differential. On-chip trimming adjusts

reference voltage to 2%.

Features

•

Adjustable or fixed output

•

Output current of 1A

•

Low dropout, 1.3V maximum at 1A output current

•

Thermal shutdown protection

Ordering Information

Type NO.

S1117API/S1117xxPI

Marking

S1117

ٱٱ

PI / S1117

ٱٱٱ

Package Code

TO-220F-3L

□□:Voltage

Code (Aj : 1.25V, 15:1.5V,:18: 1.8V, 25:2.5V, 33:3.3V, 50:5.0V)

□□□:Voltage

Code (285:2.85V)

Outline Dimensions

(Unit : mm)

BLOCK DIAGRAM

PIN Connections

1. GND / Adj.

2. Output

3. Input

KSD-I0R001-000

S1117-33PI Related Products

	S1117-33PI	S1117-25PI	S1117-285PI	S1117-50PI
Description	IC,VOLT REGULATOR,FIXED,+3.3V,BIPOLAR,SIP,3PIN,PLASTIC	IC,VOLT REGULATOR,FIXED,+2.5V,BIPOLAR,SIP,3PIN,PLASTIC	IC,VOLT REGULATOR,FIXED,+2.85V,BIPOLAR,SIP,3PIN,PLASTIC	IC,VOLT REGULATOR,FIXED,+5V,BIPOLAR,SIP,3PIN,PLASTIC
package instruction	, SIP3,.1ISO-TB	, SIP3,.1ISO-TB	, SIP3,.1ISO-TB	, SIP3,.1ISO-TB
Reach Compliance Code	unknown	unknown	unknown	unknown
Adjustability	FIXED	FIXED	FIXED	FIXED
Nominal dropback voltage 1	1.1 V	1.1 V	1.1 V	1.1 V
Maximum absolute input voltage	20 V	20 V	20 V	20 V
Maximum grid adjustment rate	0.0066%	0.005%	0.0057%	0.01%
Maximum load regulation	0.0132%	0.01%	0.0114%	0.02%
Output times	1	1	1	1
Number of terminals	3	3	3	3
Working temperatureTJ-Max	125 °C	125 °C	125 °C	125 °C
Maximum output current 1	1 A	1 A	1 A	1 A
Nominal output voltage 1	3.3 V	2.5 V	2.85 V	5 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Encapsulate equivalent code	SIP3,.1ISO-TB	SIP3,.1ISO-TB	SIP3,.1ISO-TB	SIP3,.1ISO-TB
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE
Maximum voltage tolerance	2%	2%	2%	2%
Base Number Matches	1	1	1	1
