Microwave Ceramics
Series/Type:
A760
The following products presented in this data sheet are being withdrawn.
Ordering Code
B69967N2047A760
Substitute Product
B39212B7646B310
Date of Withdrawal
2008-01-25
Deadline Last
Orders
2008-09-30
Last Shipments
2008-12-31
For further information please contact your nearest EPCOS sales office, which will also support you in selecting a
suitable substitute. The addresses of our worldwide sales network are presented at www.epcos.com/sales.
Microwave Ceramics and Modules
7-Pole Duplexer for WCDMA
Preliminary Data Sheet

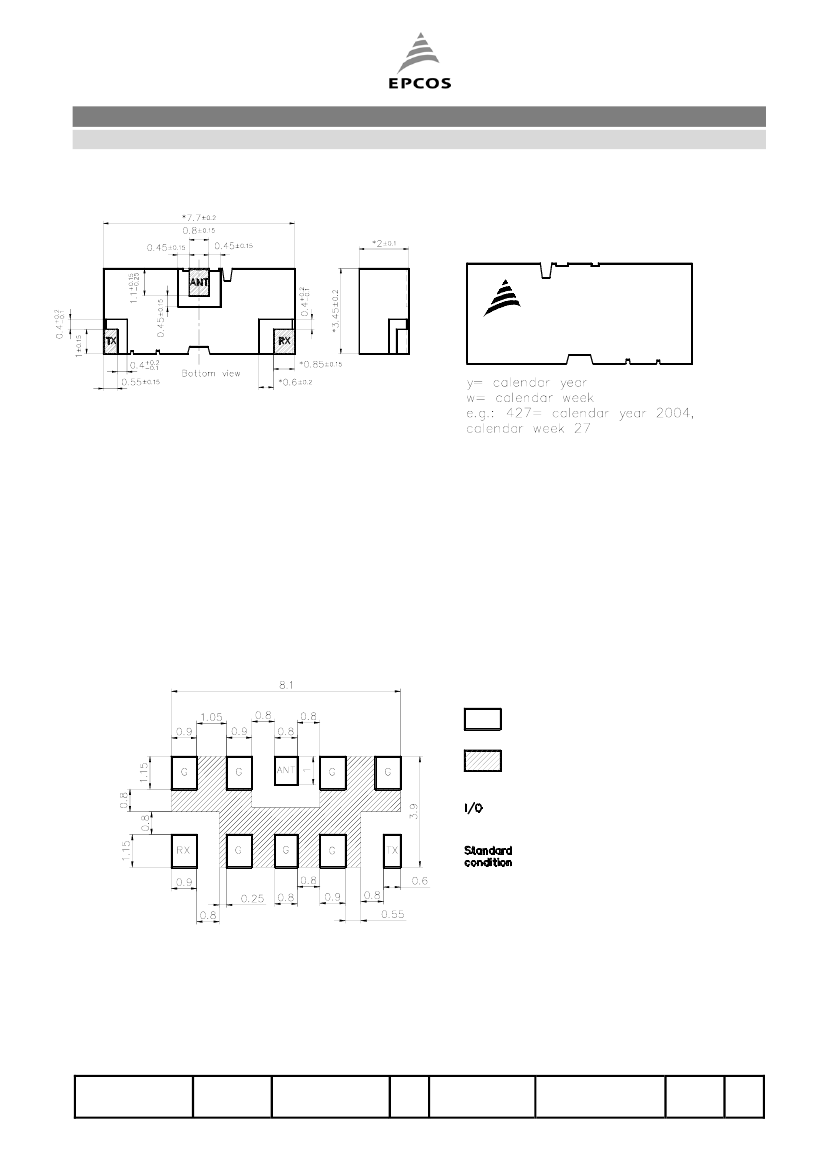

Component drawing
marking
Duplexer
B69967N2047A760
RX
A760
yww
TX
*depending in final pressing tool
View from below onto the solder terminals and view from beside
Recommended footprint
TX, RX, ANT, G solder pads
ground area below solder resist with vias
to second ground layer
connected to lines with an impedance of
50 Ohm
FR4 material
permitivity : 4.4
preferred thickness : 0.3
Vias: Ø0.3mm / mm²
For other thickness
correlation might be necessary
- will be fixed acc. to final pressing tool
ISSUE DATE
29.06.04
ISSUE
P3
PUBLISHER
SAW MWC PD
PAGE
2/5
Microwave Ceramics and Modules
7-Pole Duplexer for WCDMA
Preliminary Data Sheet
Characteristics Receiver
Center frequency
Insertion loss
Passband
Amplitude ripple (peak - peak)
Standing wave ratio
Impedance
Power
Attenuation
at DC to 1790 MHz
at 1790 to 1920 MHz
at 1920 to 1980 MHz
at 1980 to 2025 MHz
at 4030 to 4150 MHz
at 5950 to 6000 MHz
*depending on final pressing tool and final layout
Duplexer
B69967N2047A760
α
IL
B
∆α
SWR
Z
P
avg
α
f
c
min.
-
60
typ.
2140
1.3
max.
-
1.6
0.9
1.9
MHz
dB
MHz
dB
Ω
W
dB
dB
dB
dB
dB
dB
50
0.8
35 *
30
50
20
23 *
33 *
Characteristics Transmitter
Center frequency
Insertion loss
Passband
Amplitude ripple (peak - peak)
Standing wave ratio
Impedance
Power
Attenuation
at DC to 1000 MHz
at 2110 to 2170 MHz
at 2400 to 2550 MHz
at 3840 to 3960 MHz
at 5760 to 5940 MHz
*depending on final pressing tool and final layout
α
IL
B
∆α
SWR
Z
P
max
α
f
c
min.
-
60
typ.
1950
1.1
max.
-
1.4
0.6
1.8
MHz
dB
MHz
dB
Ω
W
dB
dB
dB
dB
dB
50
1.0
40
42
40
33 *
23 *
Isolation Tx – Rx
min.
Attenuation
at 1920 to 1980 MHz
at 2110 to 2170 MHz
ISSUE DATE
29.06.04
ISSUE
P3
typ.
max.
dB
dB
α
50
45
PUBLISHER
SAW MWC PD
PAGE
3/5
Microwave Ceramics and Modules
7-Pole Duplexer for WCDMA
Preliminary Data Sheet
Maximum ratings
Duplexer
B69967N2047A760
IEC climatic category (IEC 68-1)
Operating temperature
- 40/+ 90/56
T
op
-40 / +85
°C

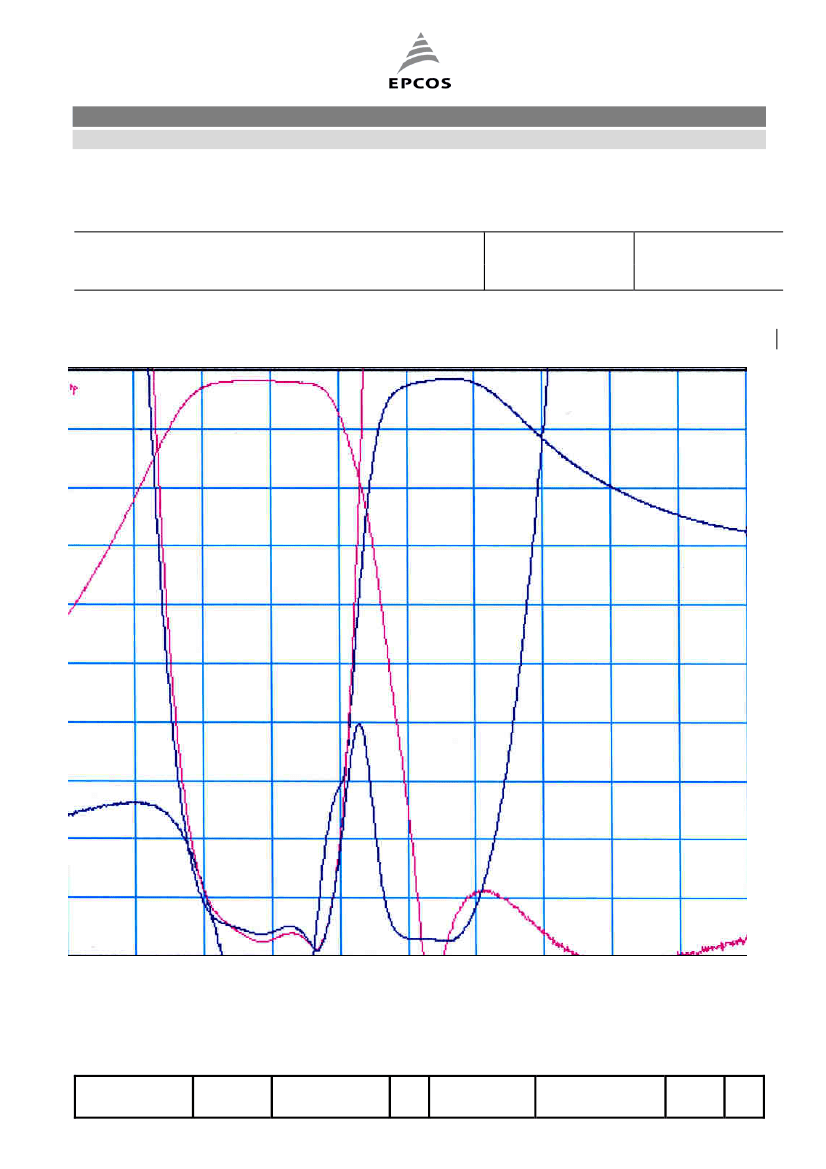

Typical passband characteristic
ISSUE DATE
29.06.04
ISSUE
P3
PUBLISHER
SAW MWC PD
PAGE
4/5
Microwave Ceramics and Modules
7-Pole Duplexer for WCDMA
Preliminary Data Sheet

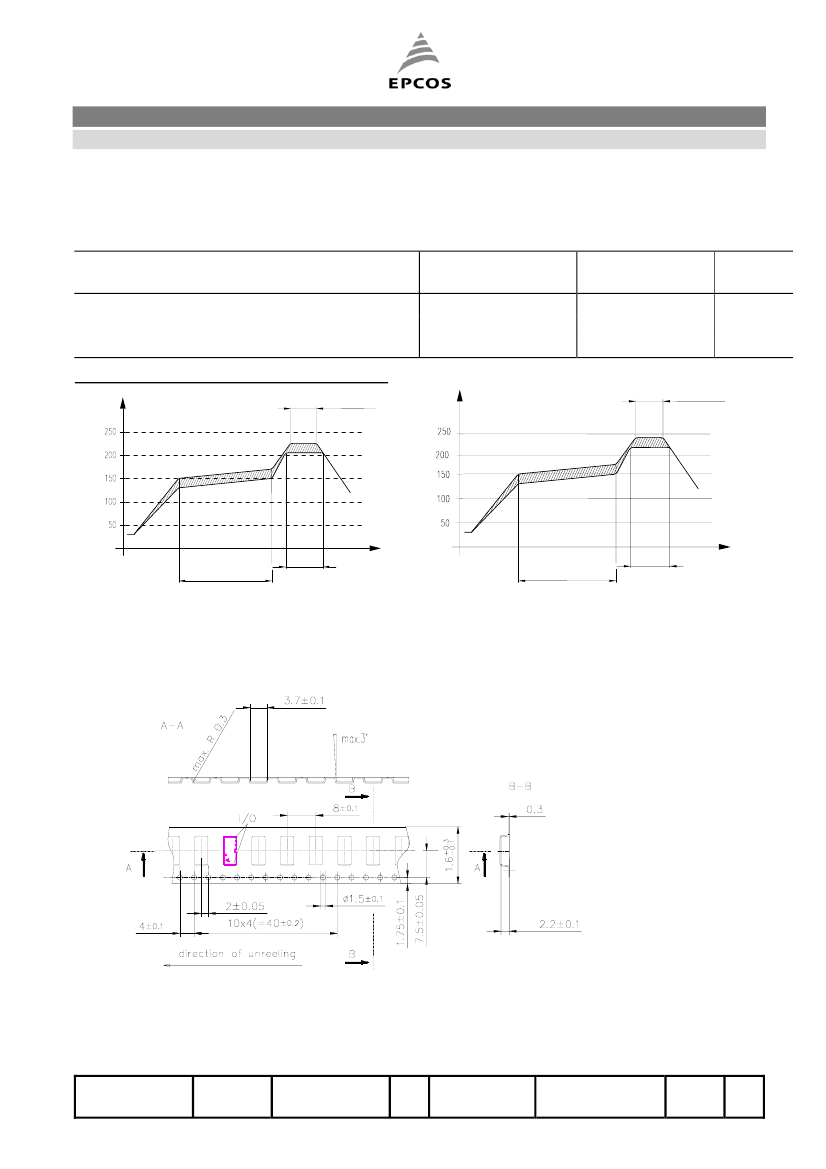

Processing information
Wettability to IEC 68-2-58:
≥
75% (after aging)
Soldering Requirements
Profile for eutectic
SnPb solder paste
Soldering type
reflow
Maximum soldering temperature
235 (max. 2 sec.)
(measuring point on top surface of the component) 225 (max. 10 sec.)
Recommended soldering conditions (infrared):
Temp. [°C]
within 10 sec.
Duplexer
B69967N2047A760
Profile for leadfree
solder paste
reflow
260 (max. 2 sec.) °C
250 (max. 10 sec.) °C
Temp. [°C]
within 10 sec.
215°C±10°C
245°C±5°C
20-40 sec.
40-80 sec.
Time [sec.]
30 sec.
2.5 °C/s
2-3 min.
Time [sec.]
> - 5 °C/s
Delivery mode
Blister tape acc. to IEC 286-3, polyester, grey
Pieces/tape: 3000
yww
EPCOS AG 2001. All Rights Reserved. Reproduction, publication and dissemination of this data sheet, enclosures hereto and the
information contained therein without EPCOS' prior express consent is prohibited.
The information contained in this data sheet describes the type of component and shall not be considered as guaranteed characteristics.
Purchase orders are subject to the General Conditions for the Supply of Products and Services of the Electrical and Electronics Industry
recommended by the ZVEI (German Electrical and Electronic Manufacturers' Association), unless otherwise agreed.
ISSUE DATE
29.06.04
RX
A760
TX
ISSUE
P3
PUBLISHER
SAW MWC PD
PAGE
5/5
