BZV49-C5V6 datasheet, PDF - EEWORLD Datasheet

BZV49-C5V6: DescriptionZener Diode, 5.6V V(Z), 5%, 1W,; CategoryDiscrete semiconductor diode; File Size266KB，9 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/

Download Datasheet Parametric Compare View All

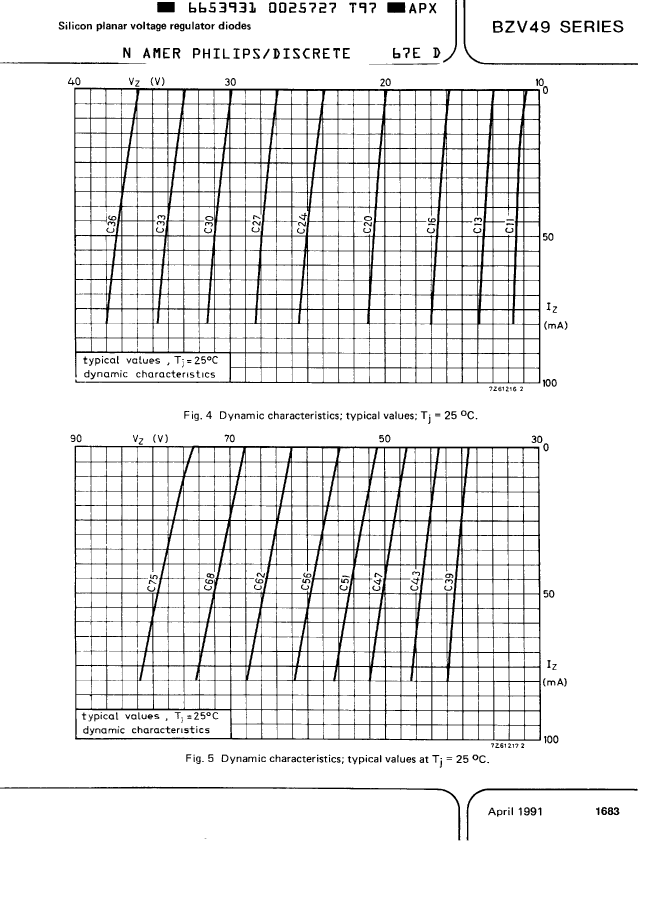

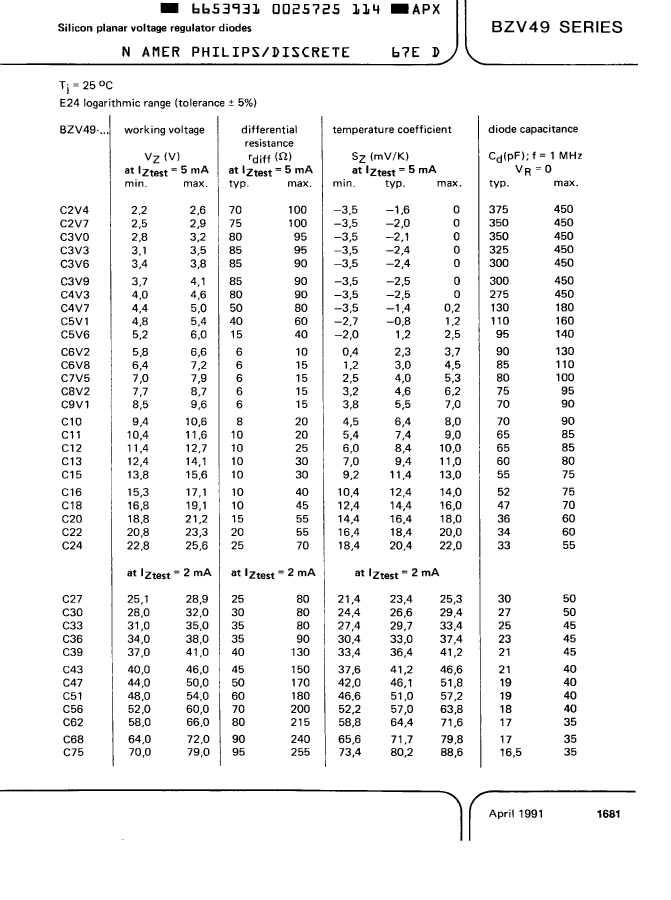

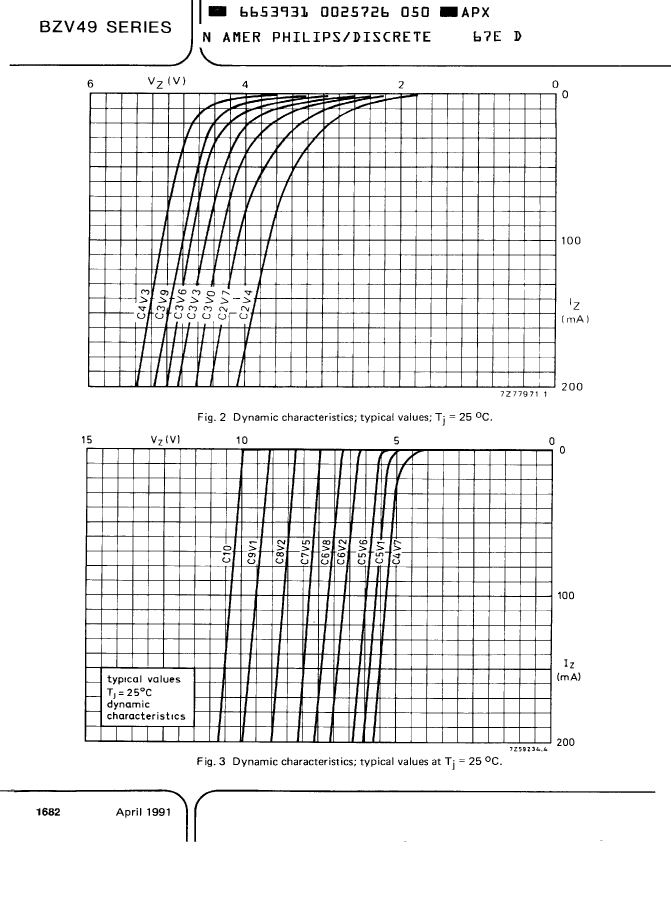

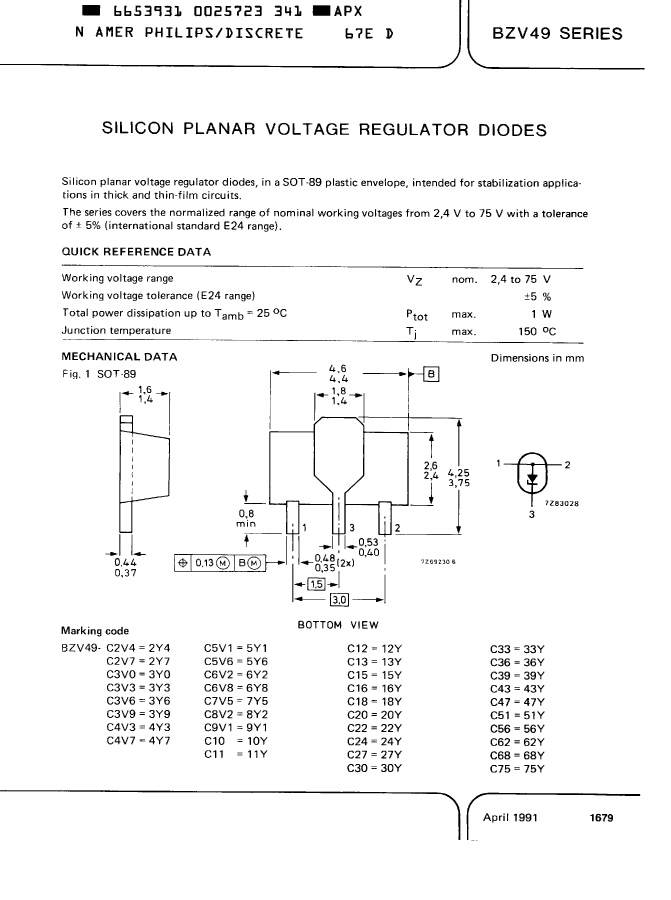

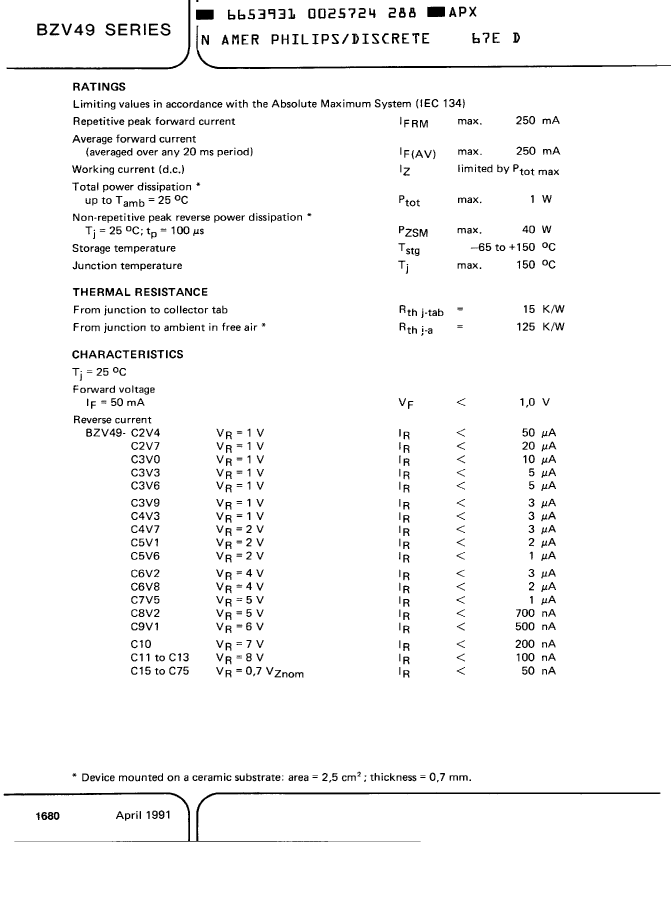

BZV49-C5V6 Overview

Zener Diode, 5.6V V(Z), 5%, 1W,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
ECCN code	EAR99
Configuration	SINGLE
Diode type	ZENER DIODE
Maximum dynamic impedance	40 Ω
JESD-609 code	e0
Number of components	1
Maximum operating temperature	150 °C
Maximum power dissipation	1 W
Nominal reference voltage	5.6 V
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)
Maximum voltage tolerance	5%
Working test current	5 mA
Base Number Matches	1

This Material Copyrighted By Its Respective Manufacturer

	BZV49-C5V6	BZV49-C8V2	BZV49-C6V2	BZV49-C9V1	BZV49-C3V3
Description	Zener Diode, 5.6V V(Z), 5%, 1W,	Zener Diode, 8.2V V(Z), 5%, 1W,	Zener Diode, 6.2V V(Z), 5%, 1W,	Zener Diode, 9.1V V(Z), 5%, 1W,	Zener Diode, 3.3V V(Z), 5%, 1W,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode type	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE
Maximum dynamic impedance	40 Ω	15 Ω	10 Ω	15 Ω	95 Ω
JESD-609 code	e0	e0	e0	e0	e0
Number of components	1	1	1	1	1
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C
Maximum power dissipation	1 W	1 W	1 W	1 W	1 W
Nominal reference voltage	5.6 V	8.2 V	6.2 V	9.1 V	3.3 V
surface mount	YES	YES	YES	YES	YES
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Maximum voltage tolerance	5%	5%	5%	5%	5%
Working test current	5 mA	5 mA	5 mA	5 mA	5 mA
Base Number Matches	1	1	1	1	1
